1-12A solid state relay
Home Products Solid State Relays (AC Switching)Single Phase AC Switching Solid State Relays1-12A solid state relay
Product Details

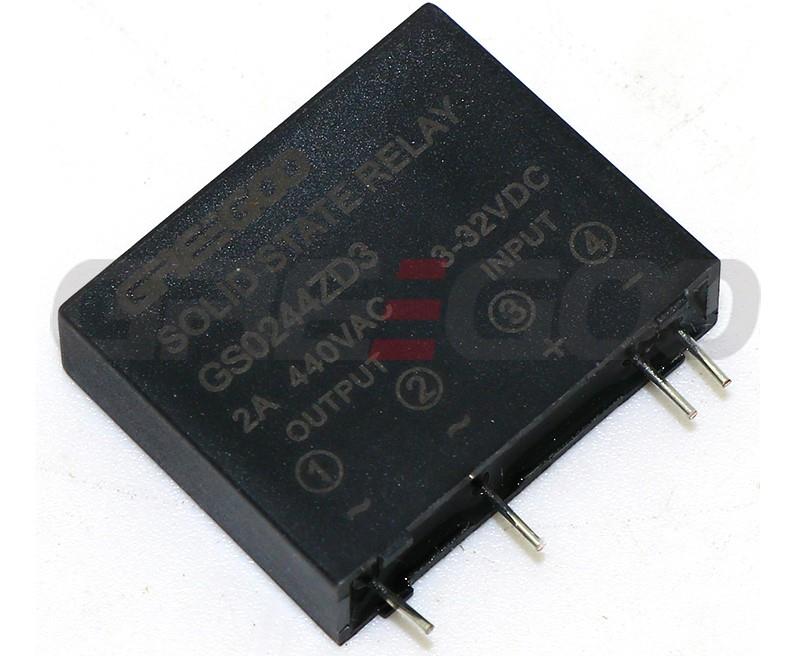

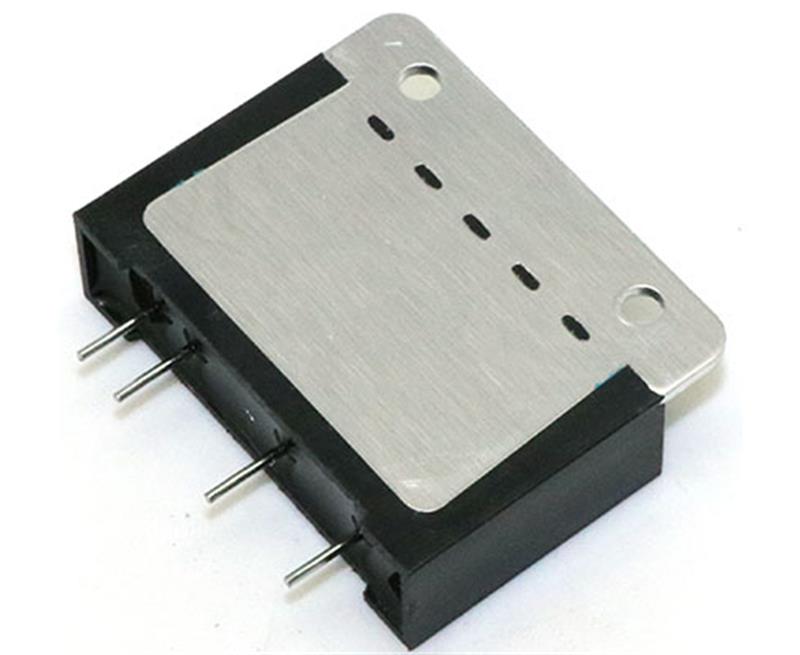

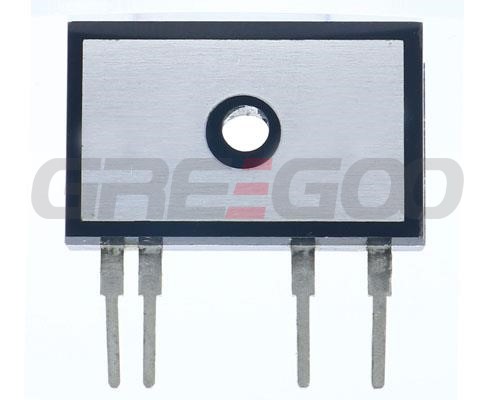

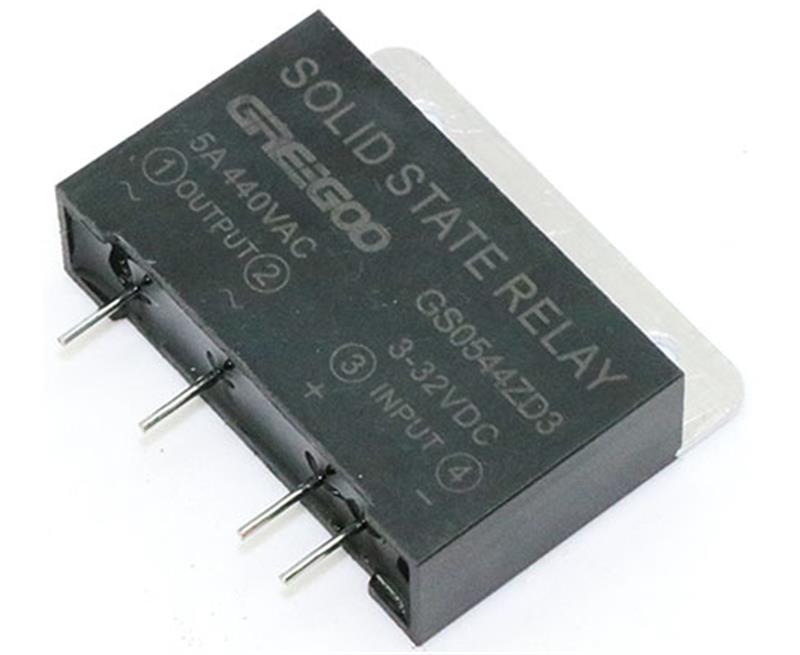

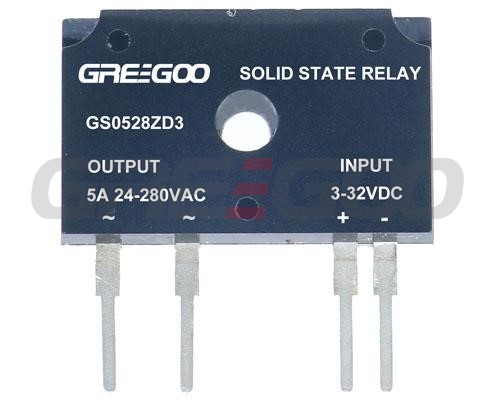

1-12A solid state relay
Working Voltage | Control method | Control voltage | Rated operational current | |||
1 Amp | 2 Amp | 3 Amp | 5 Amp | |||
240 Vac | Zero cross | 4 to 16 Vdc | GS0124ZD1 | GS0224ZD1 | GS0324ZD1 | GS0524ZD1 |
3 to 32 Vdc | GS0124ZD3 | GS0224ZD3 | GS0324ZD3 | GS0524ZD3 | ||
440 Vac | 4 to 16 Vdc | GS0144ZD1 | GS0244ZD1 | GS0344ZD1 | GS0544ZD1 | |
3 to 32 Vdc | GS0144ZD3 | GS0244ZD3 | GS0344ZD3 | GS0544ZD3 | ||
240 Vac | Random | 4 to 16 Vdc | GS0124RD1 | GS0224RD1 | GS0324RD1 | GS0524RD1 |
3 to 32 Vdc | GS0124RD3 | GS0224RD3 | GS0324RD3 | GS0524RD3 | ||
440 Vac | 4 to 16 Vdc | GS0144RD1 | GS0244RD1 | GS0344RD1 | GS0544RD1 | |
3 to 32 Vdc | GS0144RD3 | GS0244RD3 | GS0344RD3 | GS0544RD3 |
8A, 10A, 12A and 15A can be made against customers' requirements.
