15KV HV Relay GHR-10/058 and GHR-10/060

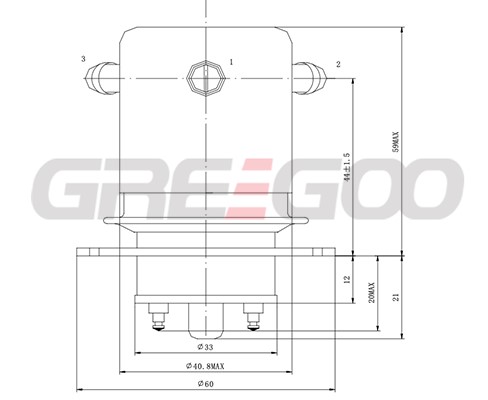

Product  Specification

Units

GHR-10/058

GHR-10/060

Contact Form

C

C

Contact Arrangement

SPDT

SPDT

Test Voltage,(kV,Peak),Test Max,Contacts

&to Base(15 μ A Leakage Max.,dc or

60Hz)

KV Peak

20

20

Rated Operating

Voltage,(kV,Peak),

Contacts &to Base (15

μ A Leakage Max.)

DC or 60Hz

KV Peak

15

15

2.5MHz

KV Peak

13

16MHz

KV Peak

10

32MHz

KV Peak

一

Continuous Current

Carry Max

DC or 60Hz

Amps

50

75

2.5MHz

Amps

35

16MHz

Amps

22

32MHz

Amps

一

Coil Hi-Pot (V RMS,60 Hz)

V

500

500

Capacitance

Across Open Contacts

pF

3

3

Contacts to Ground

pF

3.5

3.5

Resistance,Contact Max @1A,28Vdc

Ω

0.025

0.01

Operate Time,Max

ms

30

30

Release Time,Max

ms

8

8

Operating Temperature Ambient

℃

-55~ 125

-55~ 125

Shock,1/2 Sine11ms (Peak)

G's

50

50

Vibration,Sine(10-2000 Hz Peak

G's

10

10

MechanicalLife

Cycles

1 million

1 million

Weight

g

290

290

Nominal,Volts dc

24

Pick-up,Volts dc,Max

16

Drop-Out,Volts dc,Min

3.5

Coil Resistance(Ω±10%)

190                                 .
