Product Details
25A/40A/63A AC/DC Modular Contactors
| Model | Reference | Rated Current | Operating Voltage | Frequency | Module width | Poles |
| S-CM252BC | MT25 | 25A | 24V DC | 50/60Hz | 2MW 35mm | 2NA |
| S-CM252F | MT25 | 25A | 110V AC | 50/60Hz | 2MW 35mm | 2NA |
| S-CM252M | MT25 | 25A | 230V AC | 50/60Hz | 2MW 35mm | 2NA |

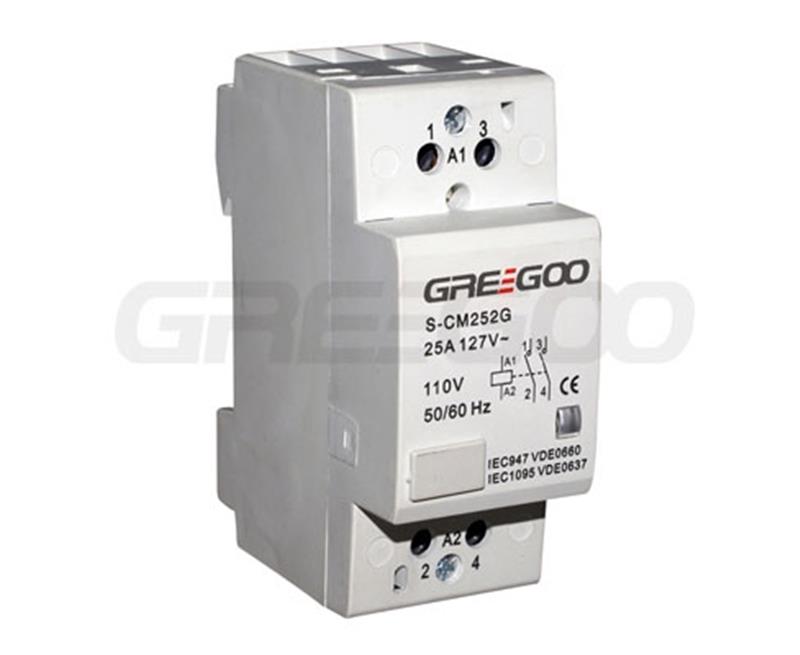

| S-CM252G | MT25 | 25A | 127V AC | 50/60Hz | 2MW 35mm | 2NA |

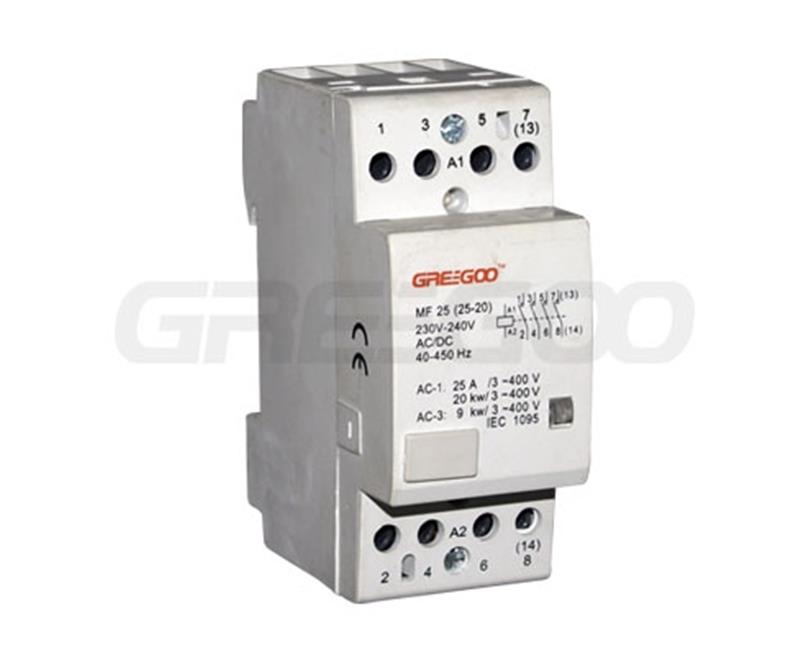

| S-CM254BC | MF25 | 25A | 24V DC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM254F | MF25 | 25A | 110V AC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM254M | MF25 | 25A | 230V AC | 50/60Hz | 3MW 55mm | 4NA |

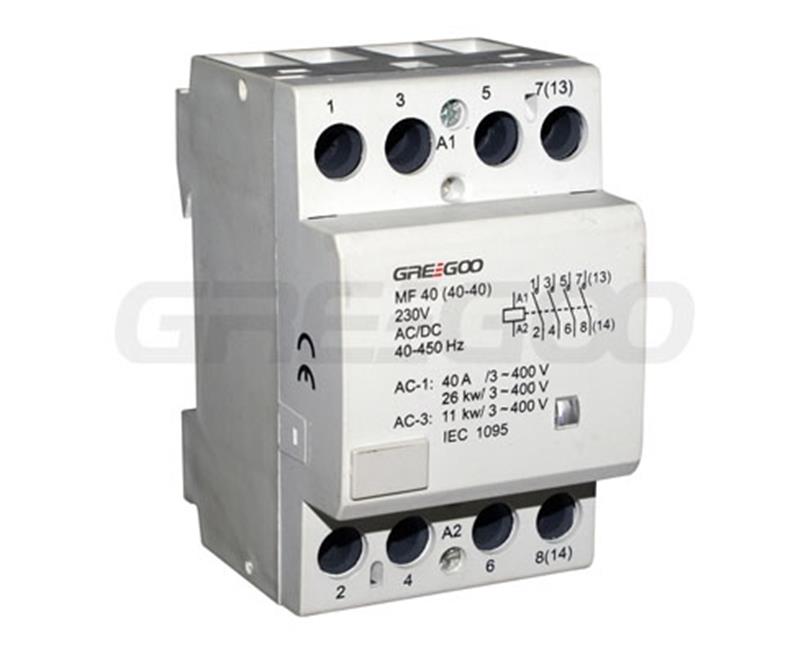

| S-CM404BC | MF40 | 40A | 24V DC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM404F | MF40 | 40A | 110V AC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM404M | MF40 | 40A | 230V AC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM634BC | MF63 | 63A | 24V DC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM634F | MF63 | 63A | 110V AC | 50/60Hz | 3MW 55mm | 4NA |
| S-CM634M | MF63 | 63A | 230V AC | 50/60Hz | 3MW 55mm | 4NA |
