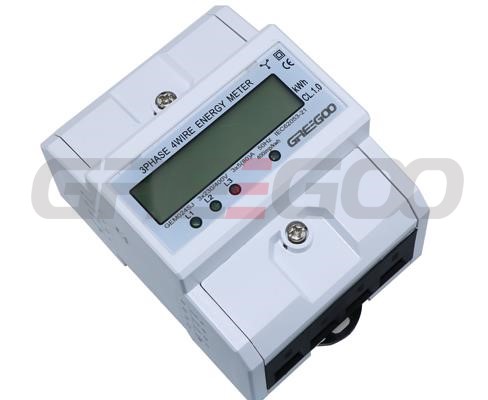

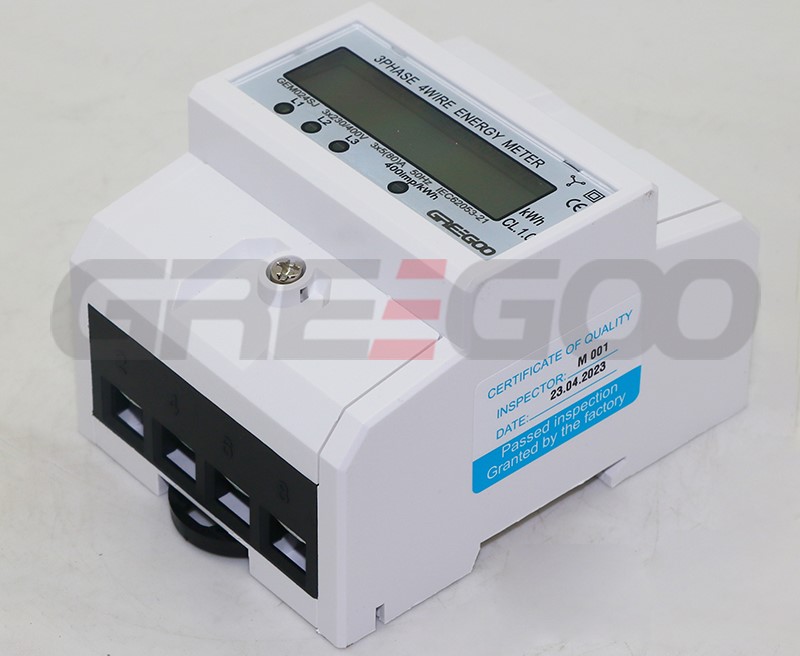

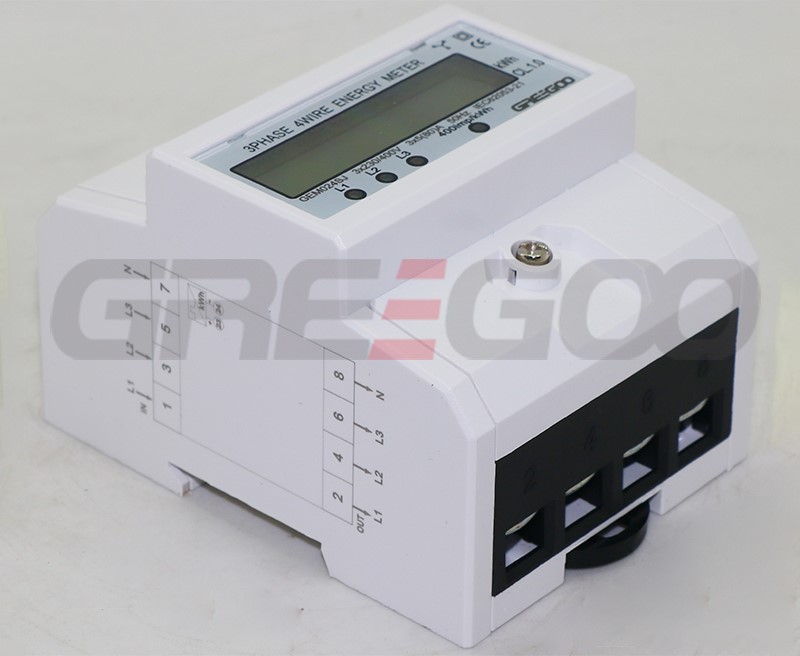

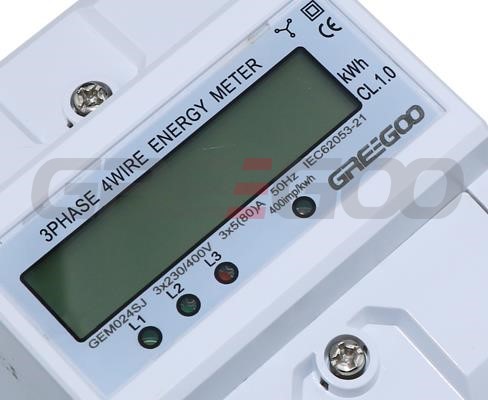

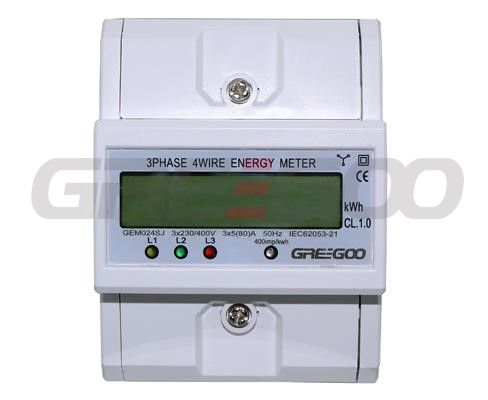

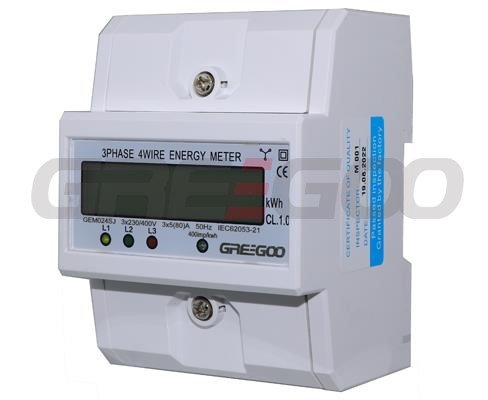

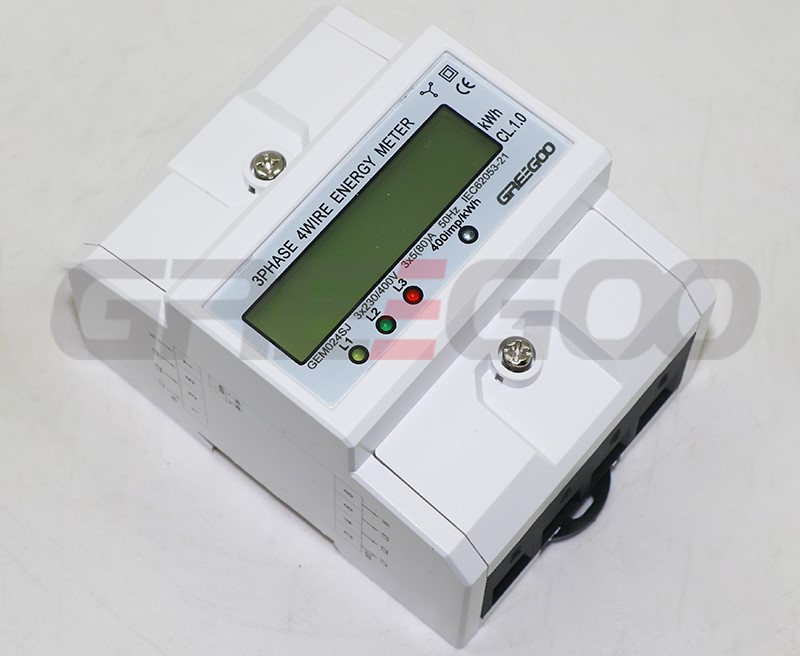

3 phase 4 wire modular DIN rail kwh energy meters

1. Introduction
GEM024SJ is a simple three phase four module Din-Rail meter with transparent meter case, which is widely used in Sub-metering system. This meter is very popular in worldwide for its novel appearance, good quality and reasonable price.



2. Features and Technical Parameters
2.1 Features
·LCD backlight display;
·Inside battery to support power off display.


2.2 Technical Parameters
Voltage: 3*220/380V 3*230/400V
Current: 3*5A/CT 3*10(50)A 3*5(80)A 3*20(100)A
Accuracy class:1.0
Standard: IEC62052-11,IEC62053-21
Frequency: 50-60Hz
Impulse constant:800imp/kWh 1600imp/kWh
Display:LCD6+2
Power consumption:≤2W, 10VA
Starting current: 0.004lb
Working Temperature:-20~55℃
Storage Temperature:-25~70℃
Working voltage:0.9-1.1 Rated voltage
Utmost voltage:0.8-1.15 Rated voltage
Average humidity value of year:≤75%
Creep:Less than 1 impulse when the rated voltage is 115%or current loop without current.
