Product Details

40KV HV Relay GHR-3/002 SPST-NC

  • Copper contacts, capable of carrying large surge currents instantaneously, commonly used in capacitor charging and discharging systems.
  • Vacuum medium, capable of effectively extinguishing the arc when disconnected under load.

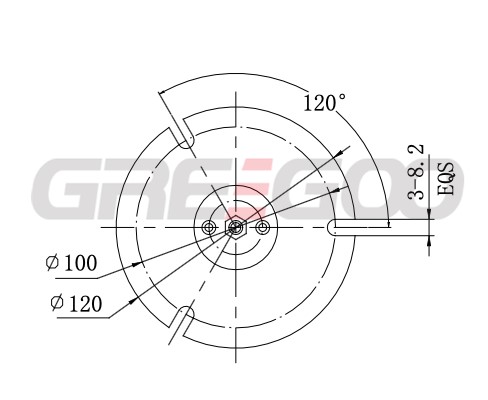

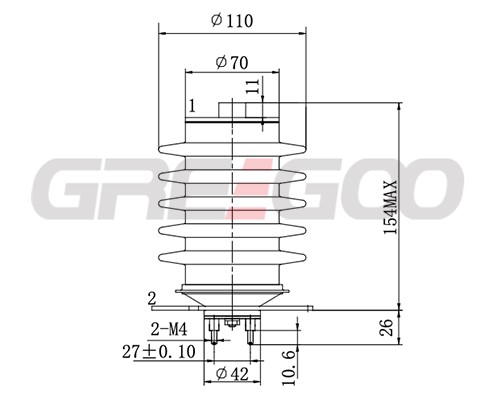

Specification

Product Specification

Units

GHR-3/002

Contact Form

B

Contact Arrangement

SPST-NC

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

50

Rated Operating Voltage,

(kV,Peak),
Contacts & to Base

(15 μA Leakage Max.)

DC or 60Hz

KV Peak

40

2.5MHz

KV Peak

-

16MHz

KV Peak

-

32MHz

KV Peak

-

Continuous Current, Carry Max

DC or 60Hz

Amps

14

2.5MHz

Amps

-

16MHz

Amps

-

32MHz

Amps

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts          .

pF

3

Contacts to Ground

pF

3.5

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.02

Operate Time, Max

ms

-

Release Time, Max

ms

50

Operating Temperature Ambient

°C

-55~+125                           .

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles              .

2 million

Weight

g

2100

Coil Rating
  • Nominal Voltage DC: 24 Volts
  • Pick-Up Voltage DC (Max): 17 Volts
  • Drop-Out Voltage DC (Min): 1-10 Volts
  • Coil Resistance: 120 Ohms (±10%)
