Common Anode Dual Diode Module
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleCommon Anode Dual Diode Module
Specification

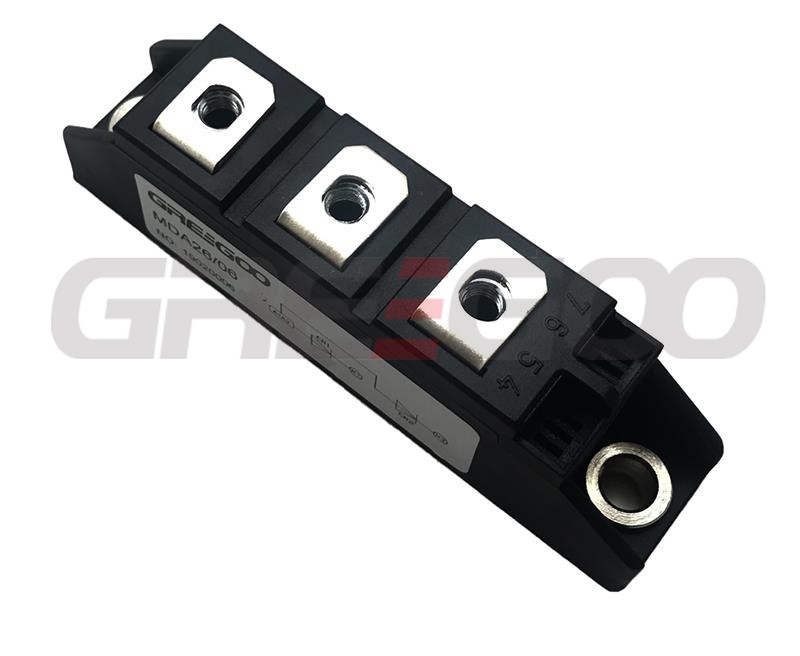

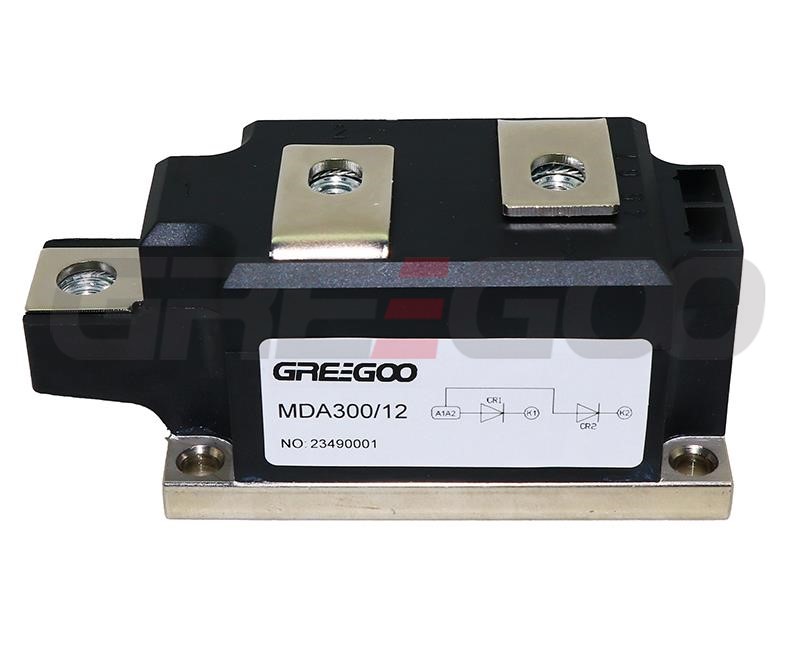

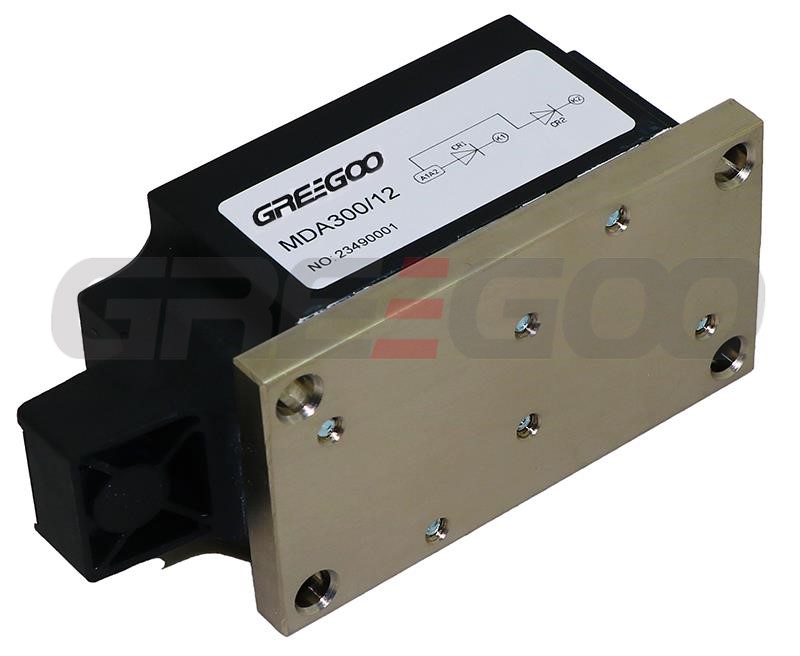

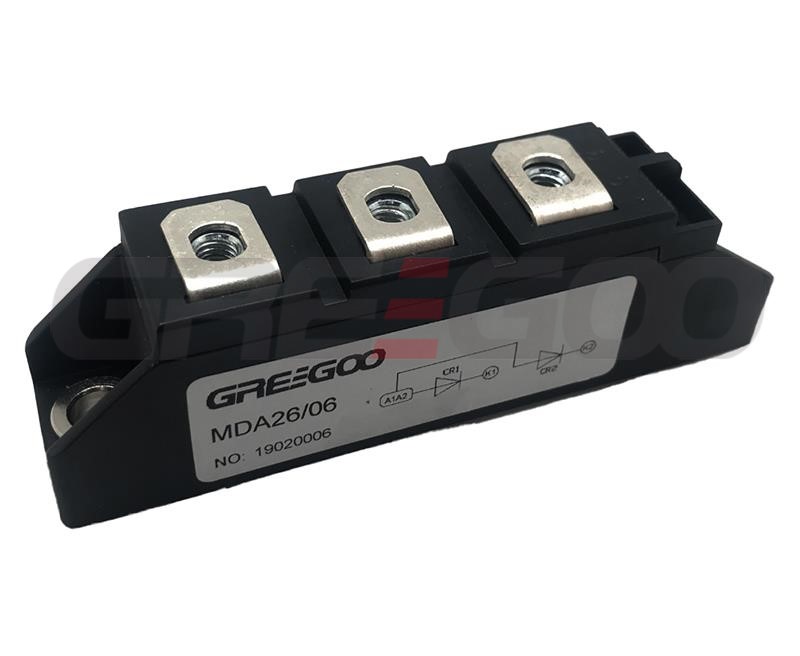

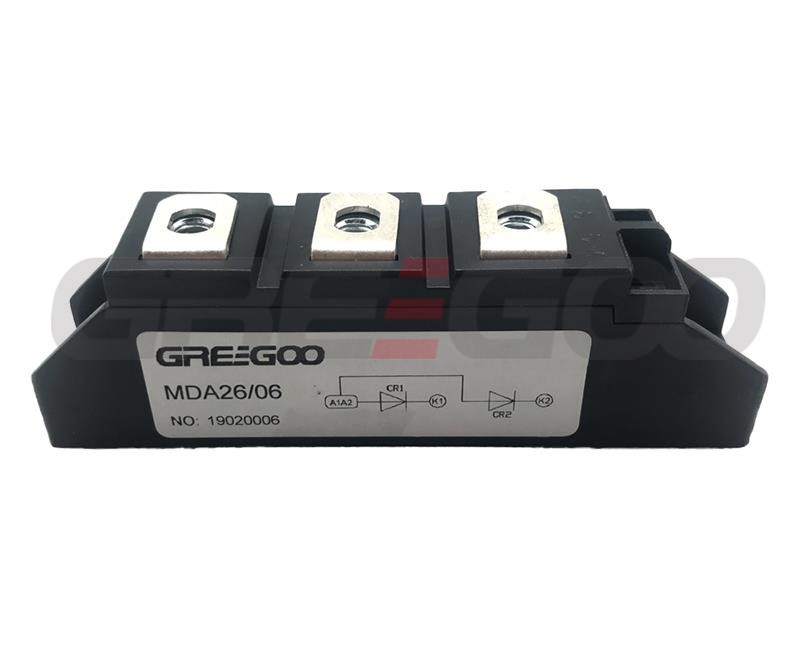

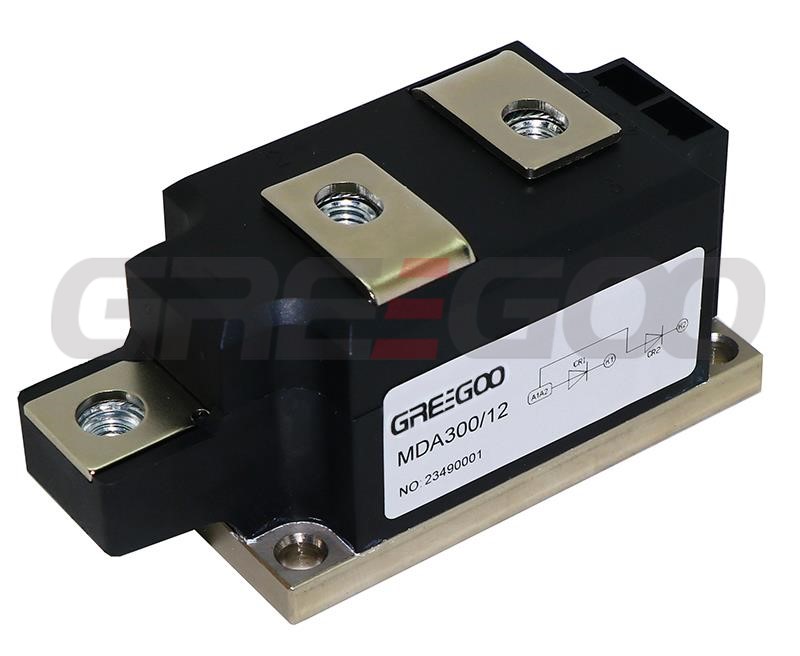

Common Anode Dual Diode Module
Model No. |
IFAV(A) | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT mΩ |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
MDA95-22N1B | 120 | 100 | 2200 | 2800 | 39.2 | 0.75 | 1.95 | 150 | 0.26 | 76 | TO-240 AA | 92x20x30 |
MDA275-30N3 | 245 | 100 | 3000 | 4500 | 101 | 0.9 | 1.57 | 150 | 0.11 | 800 | W102 | 115x50x52 |
MDA275-36N3 | 245 | 100 | 3600 | 4500 | 101 | 0.9 | 1.57 | 150 | 0.11 | 800 | W102 | 115x50x52 |
MDA410-24N3 | 360 | 100 | 2400 | 7800 | 304 | 0.85 | 0.45 | 150 | 0.11 | 800 | W102 | 115x50x52 |
MDA410-28N3 | 360 | 100 | 2800 | 7800 | 304 | 0.85 | 0.45 | 150 | 0.11 | 800 | W102 | 115x50x52 |
MDA510-18N3 | 445 | 100 | 1800 | 10900 | 594 | 0.75 | 0.25 | 150 | 0.11 | 800 | W102 | 115x50x52 |
MDA600-12N1 | 726 | 100 | 1200 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA600-14N1 | 726 | 100 | 1400 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA600-16N1 | 726 | 100 | 1600 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA600-18N1 | 726 | 100 | 1800 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA600-20N1 | 726 | 100 | 2000 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA600-22N1 | 726 | 100 | 2200 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.062 | 1200 | W63 | 150x60x52 |
MDA630-30N2 | 530 | 100 | 3000 | 11700 | 845 | 0.8 | 0.5 | 150 | 0.065 | 1500 | W74 | 150x60x52 |
MDA630-36N2 | 530 | 100 | 3600 | 11700 | 845 | 0.8 | 0.5 | 150 | 0.065 | 1500 | W74 | 150x60x52 |
MDA710-22N2 | 578 | 100 | 2200 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 150x60x52 |
MDA710-24N2 | 578 | 100 | 2400 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 150x60x52 |
MDA710-26N2 | 578 | 100 | 2600 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 150x60x52 |
MDA810-12N2 | 664 | 100 | 1200 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 150x60x52 |
MDA810-14N2 | 664 | 100 | 1400 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 150x60x52 |
MDA810-16N2 | 664 | 100 | 1600 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 150x60x52 |
MDA810-18N2 | 664 | 100 | 1800 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 150x60x52 |
MDA950-12N1W | 668 | 85 | 1200 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA950-14N1W | 668 | 85 | 1400 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA950-16N1W | 668 | 85 | 1600 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA950-18N1W | 668 | 85 | 1800 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA950-20N1W | 668 | 85 | 2000 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA950-22N1W | 668 | 85 | 2200 | 21800 | 2380 | 0.75 | 0.2 | 150 | 0.09 | 1200 | W64 | 150x60x62 |
MDA1080-18N7 | 668 | 100 | 1800 | 29100 | 4230 | 0.782 | 0.157 | 150 | 0.05 | 3500 | W88 | 180x77x84 |
MDA1080-24N7 | 668 | 100 | 2400 | 29100 | 4230 | 0.782 | 0.157 | 150 | 0.05 | 3500 | W88 | 180x77x84 |
MDA1080-28N7 | 668 | 100 | 2800 | 29100 | 4230 | 0.782 | 0.157 | 150 | 0.05 | 3500 | W88 | 180x77x84 |
