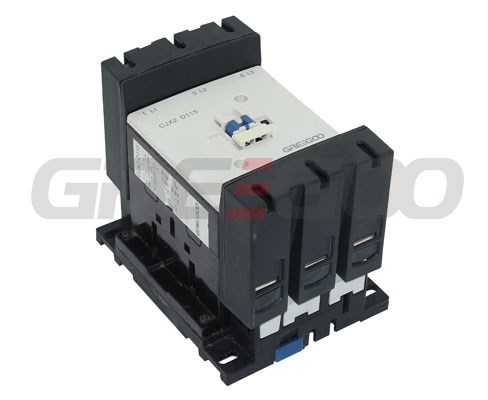

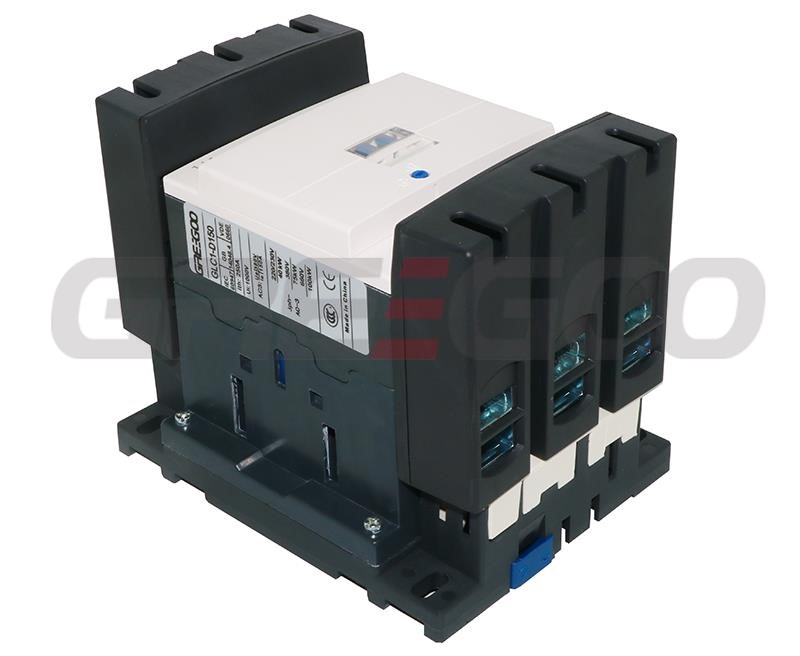

AC Contactors (GLC1-D 115A-620A)
Home Products Motor ProtectionElectrical ContactorAC Contactors (GLC1-D 115A-620A)
Product Details
AC Contactors (GLC1-D 115A-620A)
| Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 ( 40 ) | Rated operational current in AC-3 up to 440V (A) | Thermal current Ithe in (A) | Reference | |||||
| 220V 240V (kW) | 380V 400V (kW) | 415V (kW) | 440V (kW) | 500V (kW) | 600V 690V (kW) | |||
| 30 | 55 | 55 | 59 | 75 | 80 | 115 | 200 | GLC1-D-1153 |
| 40 | 75 | 80 | 80 | 90 | 100 | 150 | 250 | GLC1-D-1503 |
| 55 | 90 | 100 | 100 | 110 | 110 | 170 | 250 | GLC1-D-1703 |
| 63 | 110 | 132 | 110 | 120 | 129 | 205 | 275 | GLC1-D-2053 |
| 63 | 110 | 132 | 110 | 120 | 129 | 205 | 275 | GLC1-D-2054 |
| 75 | 132 | 140 | 132 | 160 | 160 | 245 | 315 | GLC1-D-2453 |
| 75 | 132 | 140 | 132 | 160 | 160 | 245 | 315 | GLC1-D-2454 |
| 100 | 160 | 180 | 200 | 200 | 220 | 300 | 400 | GLC1-D-3003 |
| 100 | 160 | 180 | 200 | 200 | 220 | 300 | 400 | GLC1-D-3004 |
| 110 | 220 | 250 | 250 | 250 | 280 | 410 | 500 | GLC1-D-4103 |
| 110 | 220 | 250 | 250 | 250 | 280 | 410 | 500 | GLC1-D-4104 |
| 147 | 265 | 295 | 280 | 335 | 355 | 475 | 700 | GLC1-D-4753 |
| 147 | 265 | 295 | 280 | 335 | 355 | 475 | 700 | GLC1-D-4754 |
| 200 | 335 | 400 | 400 | 400 | 450 | 620 | 1000 | GLC1-D-6203 |
| 200 | 335 | 400 | 400 | 400 | 450 | 620 | 1000 | GLC1-D-6204 |
