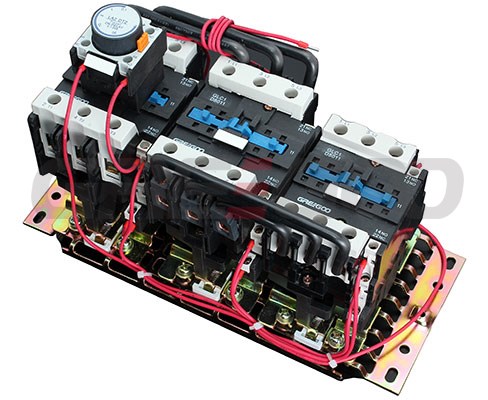

| Standard power ratings of squirrel cage motors mains voltage-delta connection | Auxiliary contacts available on | Star-delta mechanical interlock | Reference | ||||||||
| each contactor line delta star | |||||||||||
| 220V(kW) | 380V(kW) | 415V(kW) | 440V(kW) | NO | NC | NO | NC | NO | NC | ||
| 4 | 7.5 | 7.5 | 7.5 | - | - | - | - | - | - | Without | GLC3-D09 |
| 5.5 | 11 | 11 | 11 | - | - | - | - | - | - | Without | GLC3-D12 |
| 11 | 18.5 | 22 | 22 | - | - | - | - | - | - | Without | GLC3-D18 |
| 15 | 22 | 22 | 25 | - | - | - | - | - | - | Without | GLC3-D25 |
| 15 | 25 | 30 | 30 | - | - | - | - | - | - | Without | GLC3-D32 |
| 18.5 | 37 | 37 | 37 | - | 1 | 1 | - | - | 1 | Without | GLC3-D40 |
| 30 | 55 | 59 | 59 | - | 1 | 1 | - | - | 1 | Without | GLC3-D50 |
| 33 | 59 | 59 | 59 | - | 1 | 1 | - | - | 1 | Without | GLC3-D65 |
| 37 | 75 | 75 | 75 | - | 1 | 1 | - | - | 1 | Without | GLC3-D80 |
| 45 | 80 | 80 | 80 | - | 1 | 1 | - | - | 1 | Without | GLC3-D95 |
