Distributed Gate Thyristor Type R2619ZC18 to R2619ZC25
Home Products Disc PCT and RectifierRecommend PCTDistributed Gate Thyristor Type R2619ZC18 to R2619ZC25
Product Details
Distributed Gate Thyristor Type R2619ZC18 to R2619ZC25

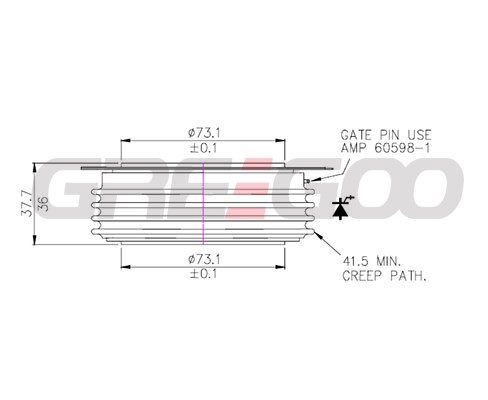

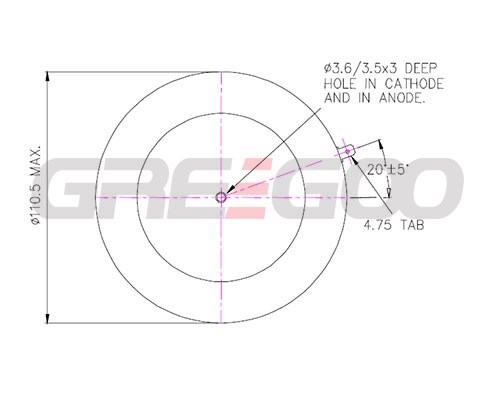

2619A 1800V to 2500V phase control thyristor
VOLTAGE RATINGS | MAXIMUM LIMITS | UNITS | |
VDRM | Repetitive peak off-state voltage, (note 1) | 1800-2500 | V |
VDSM | Non-repetitive peak off-state voltage, (note 1) | 1800-2500 | V |
VRRM | Repetitive peak reverse voltage, (note 1) | 1800-2100 | V |
VRSM | Non-repetitive peak reverse voltage, (note 1) | 1900-2200 | V |
OTHER RATINGS | MAXIMUM LIMITS | UNITS | |
IT(AV)M | Maximum average on-state current, Tsink=55°C, (note 2) | 2619 | A |
IT(AV)M | Maximum average on-state current. Tsink=85°C, (note 2) | 1792 | A |
IT(AV)M | Maximum average on-state current. Tsink=85°C, (note 3) | 1037 | A |
IT(RMS) | Nominal RMS on-state current, Tsink=25°C, (note 2) | 5227 | A |
IT(d.c.) | D.C. on-state current, Tsink=25°C, (note 4) | 4395 | A |
ITSM | Peak non-repetitive surge tp=10ms, Vrm=0.6VRRM, (note 5) | 33.8 | kA |
ITSM2 | Peak non-repetitive surge tp=10ms, Vrm≤10V, (note 5) | 37.2 | kA |
I2t | I2t capacity for fusing tp=10ms, Vrm=0.6VRRM, (note 5) | 5.71×106 | A2s |
I2t | I2t capacity for fusing tp=10ms, Vrm≤10V, (note 5) | 6.92×106 | A2s |
(di/dt)cr |
Critical rate of rise of on-state current (repetitive), (Note 6) Critical rate of rise of on-state current (non-repetitive), (Note 6) |
1000 1500 |
A/μs A/μs |
VRGM | Peak reverse gate voltage | 5 | V |
PG(AV) | Mean forward gate power | 5 | W |
PGM | Peak forward gate power | 30 | W |
Tj op | Operating temperature range | -40 to 125 | °C |
Tstg | Storage temperature range | -40 to 150 | °C |
Fixed code: R2619ZC
Fixed voltage code (VDRM/100): 18, 20,25
Tq code: J=50us, K=60us, L=65us
For example: R2619ZC25K, 2619A, 2500V, 60us tq.
