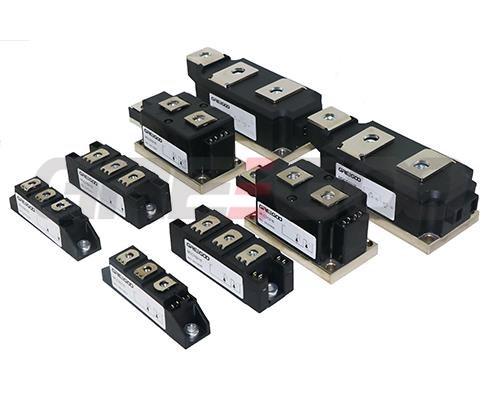

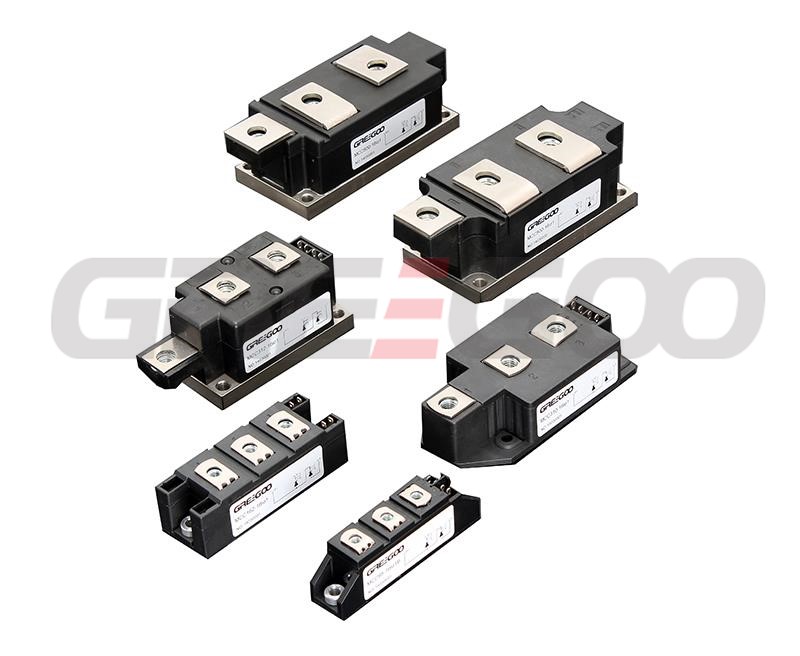

Dual Thyristor modules (DCB technology)
DUAL THYRISTOR MODULES
Part Number | VRRM | ITAVM | ITRMS | ITSM | ITSM | VT0 | rT | Tvjm | RthJC | RthCH | PackageStyle |
VDRM | Tc=85°C (A) | (A) | 10ms | 8.33ms | (V) | (mOhms) | (°C) | max | (K/W) | ||
(V) | Tvj=45°C (A) | Tvj=45°C (A) | (K/W) | ||||||||
MCC19-16io8B | 1600 | 18 | 40 | 400 | 430 | 0.85 | 18 | 125 | 1.3 | 0.2 | TO-240 AA |
MCC19-16io1B | 1600 | 18 | 40 | 400 | 430 | 0.85 | 18 | 125 | 1.3 | 0.2 | TO-240 AA |
MCC21-16io8B | 1600 | 21 | 33 | 320 | 345 | 0.85 | 15 | 125 | 1.1 | 0.2 | TO-240 AA |
MCC26-16io1B | 1600 | 27 | 50 | 520 | 560 | 0.85 | 11 | 125 | 0.88 | 0.2 | TO-240 AA |
MCC26-16io8B | 1600 | 27 | 50 | 520 | 560 | 0.85 | 11 | 125 | 0.88 | 0.2 | TO-240 AA |
MCC44-16io8B | 1600 | 49 | 77 | 1150 | 1240 | 0.85 | 5.3 | 125 | 0.53 | 0.2 | TO-240 AA |
MCC44-16io1B | 1600 | 49 | 77 | 1150 | 1240 | 0.85 | 5.3 | 125 | 0.53 | 0.2 | TO-240 AA |
MCC56-16io8B | 1600 | 60 | 100 | 1500 | 1620 | 0.85 | 3.7 | 125 | 0.45 | 0.2 | TO-240 AA |
MCC56-16io1B | 1600 | 60 | 100 | 1500 | 1620 | 0.85 | 3.7 | 125 | 0.45 | 0.2 | TO-240 AA |
MCC72-16io1B | 1600 | 85 | 180 | 1700 | 1840 | 0.85 | 3.2 | 125 | 0.3 | 0.2 | TO-240 AA |
MCC72-16io8B | 1600 | 85 | 180 | 1700 | 1840 | 0.85 | 3.2 | 125 | 0.3 | 0.2 | TO-240 AA |

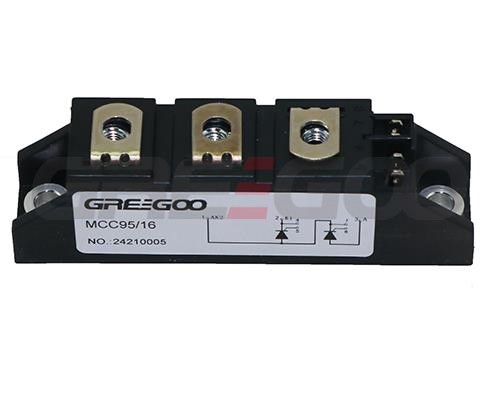

MCC95-16io8B | 1600 | 116 | 180 | 2250 | 2430 | 0.85 | 2.4 | 125 | 0.22 | 0.2 | TO-240 AA |
MCC95-16io1B | 1600 | 116 | 180 | 2250 | 2430 | 0.85 | 2.4 | 125 | 0.22 | 0.2 | TO-240 AA |
MCC132-16io1 | 1600 | 130 | 300 | 4750 | 5130 | 0.8 | 1.5 | 125 | 0.23 | 0.1 | Y4-M6 |

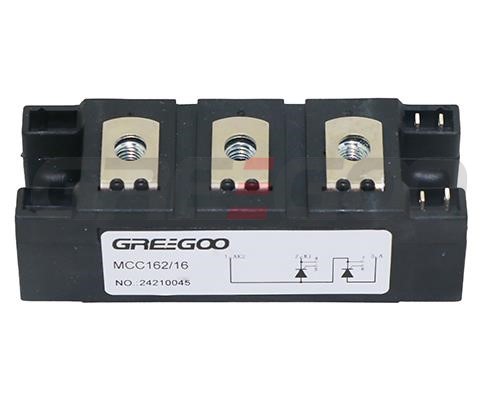

MCC162-16io1 | 1600 | 181 | 300 | 6000 | 6480 | 0.88 | 1.15 | 125 | 0.155 | 0.07 | Y4-M6 |
MCC200-16io1 | 1600 | 216 | 340 | 8000 | 8640 | 0.8 | 1.4 | 125 | 0.13 | 0.05 | Y4-M6 |
MCC225-16io1 | 1600 | 220 | 400 | 8000 | 8640 | 0.79 | 0.83 | 140 | 0.157 | 0.04 | Y1-CU |

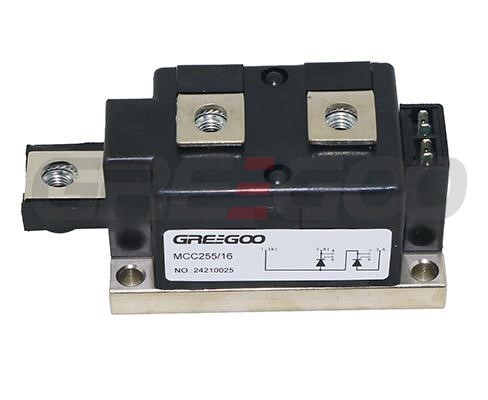

MCC255-16io1 | 1600 | 250 | 450 | 9200 | 9940 | 0.8 | 0.68 | 140 | 0.14 | 0.04 | Y1-CU |
MCC310-16io1 | 1600 | 320 | 500 | 9200 | 9940 | 0.8 | 0.82 | 140 | 0.11 | 0.04 | Y2-DCB |

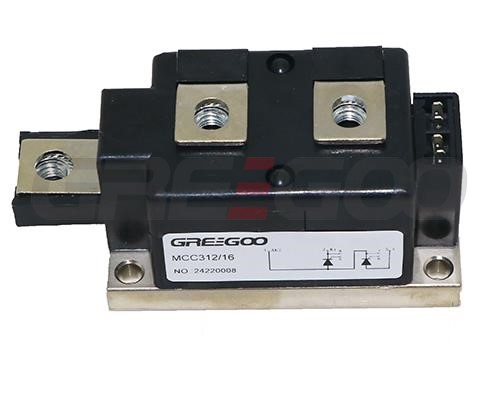

MCC312-16io1 | 1600 | 320 | 520 | 9600 | 10400 | 0.8 | 0.68 | 140 | 0.12 | 0.04 | Y2-DCB |

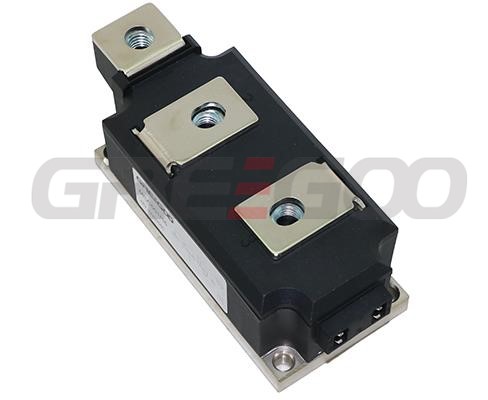

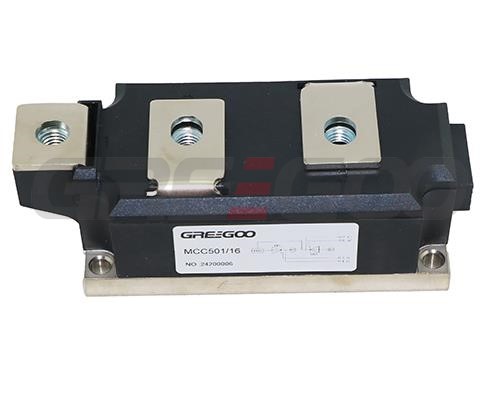

MCC501-16io2 | 1600 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 | GCC-501 |
MCC551-16io2 | 1600 | - | - | 18000 | - | - | - | 125 | 0.062 | 0.02 | GCC-501 |
