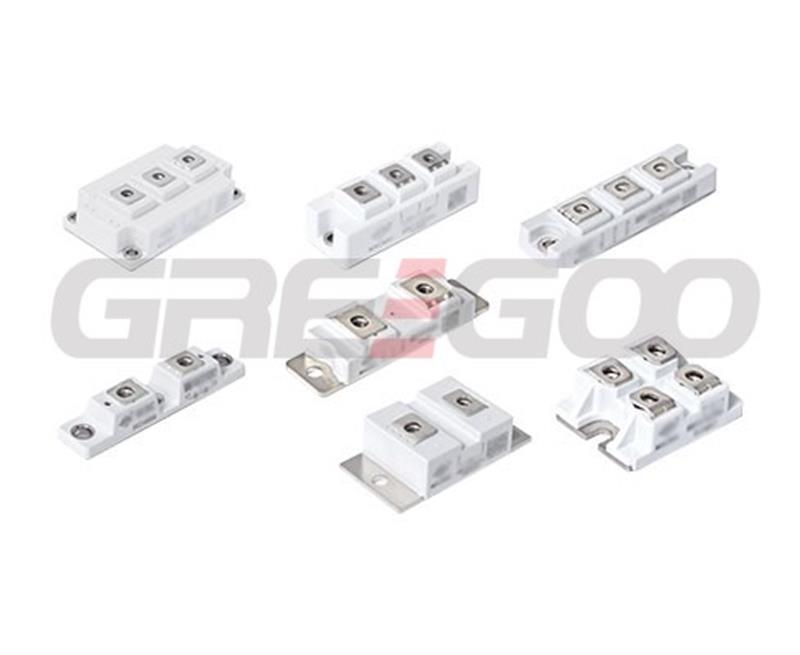

Greegoo offer FRED module products made in the low-cost non-isolated package and the full-isolated package. FRED modules have superior characteristics of fast and soft recovery characteristics which are excellent using in high speed switching such as PFC and Chopper applications. It’s low Vf feature suggests the low conduction loss making the product excellent apply in the output rectification circuit. The product line offers various inside circuit configuration that helps the designers easily to choose, including Single Unit, Half-Bridge, Common-Cathode and Common-Anode.
Features
.Short Recovery Time
.Soft-Recovery Characteristic
.Low Reverse Recovery Charge
.Low Forward Voltage
.Stressless Package
.Avalanche Energy
Applications
.Welding Machine
.SMPS, UPS
.Inverter
.Chopper
.PFC

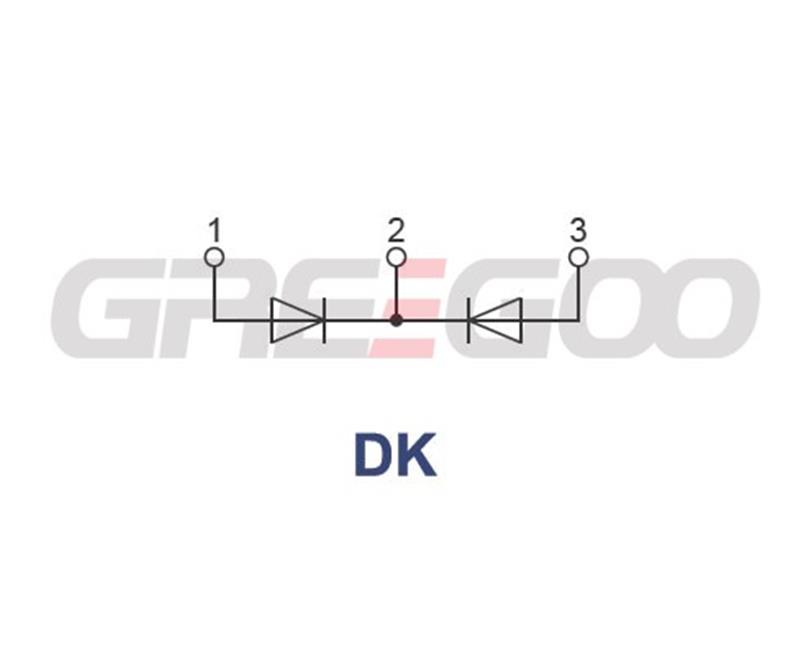

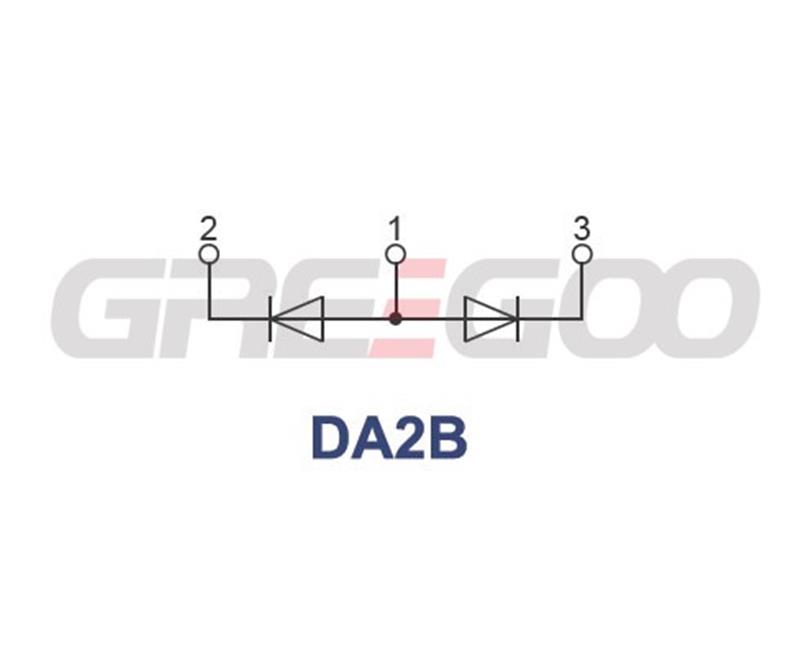

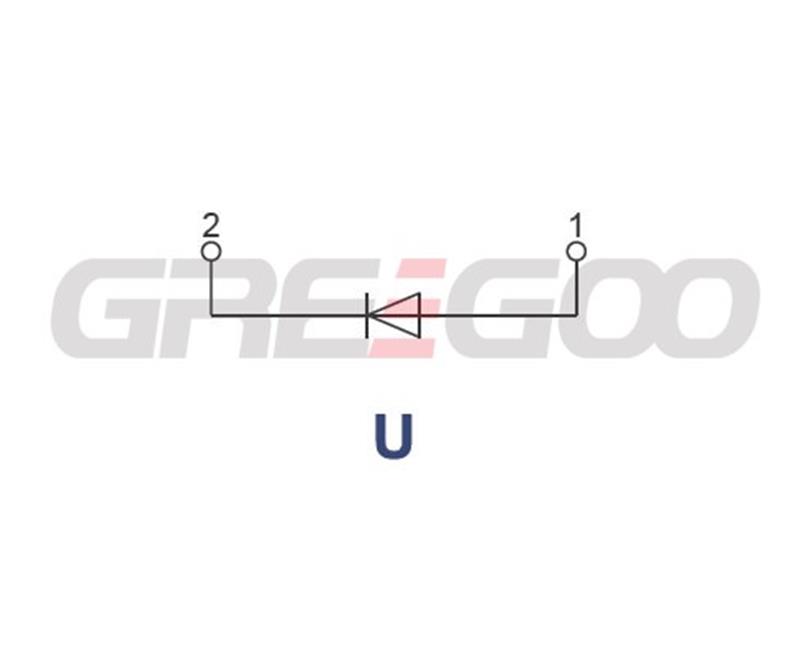

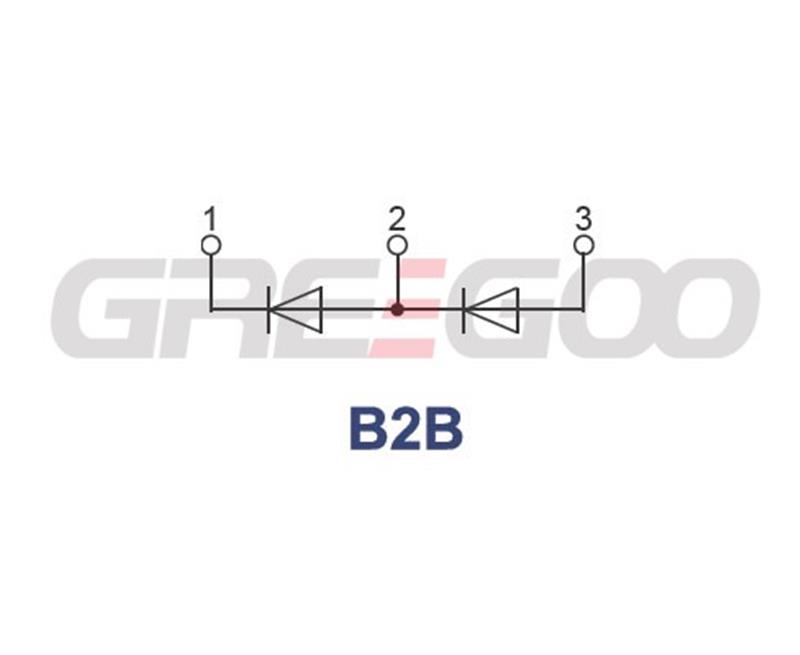

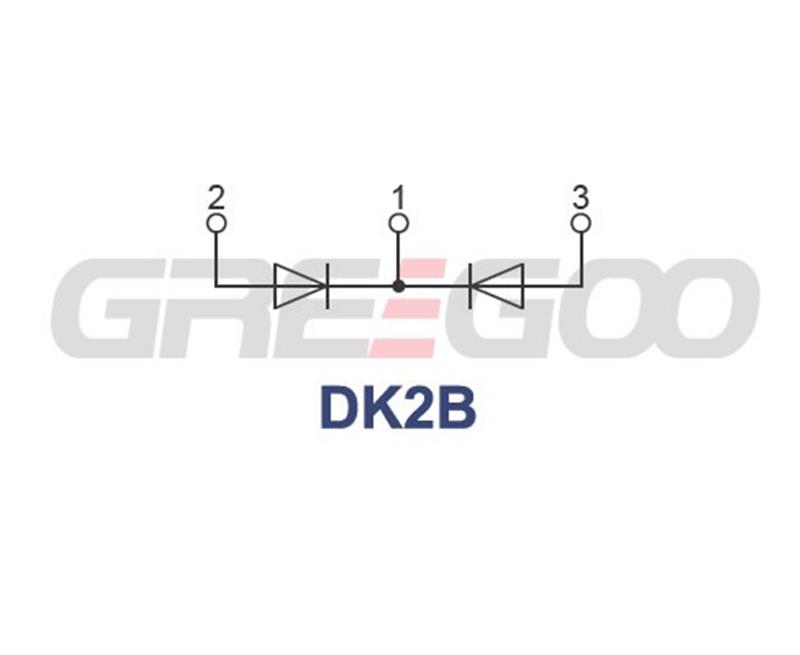

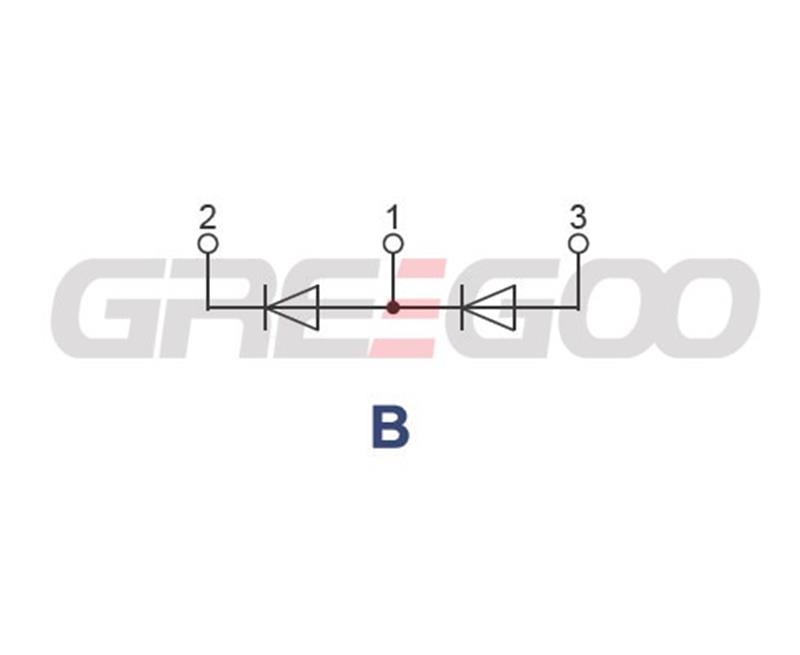

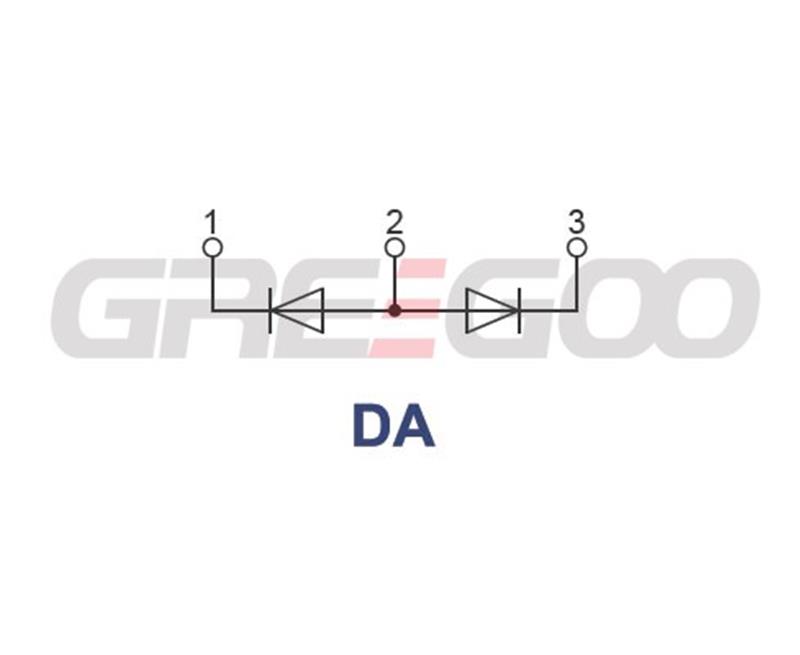

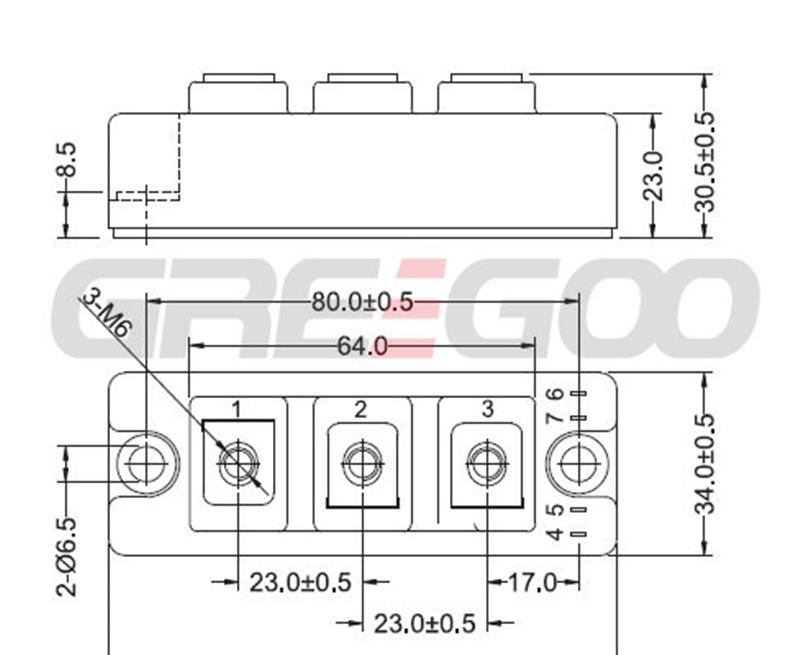

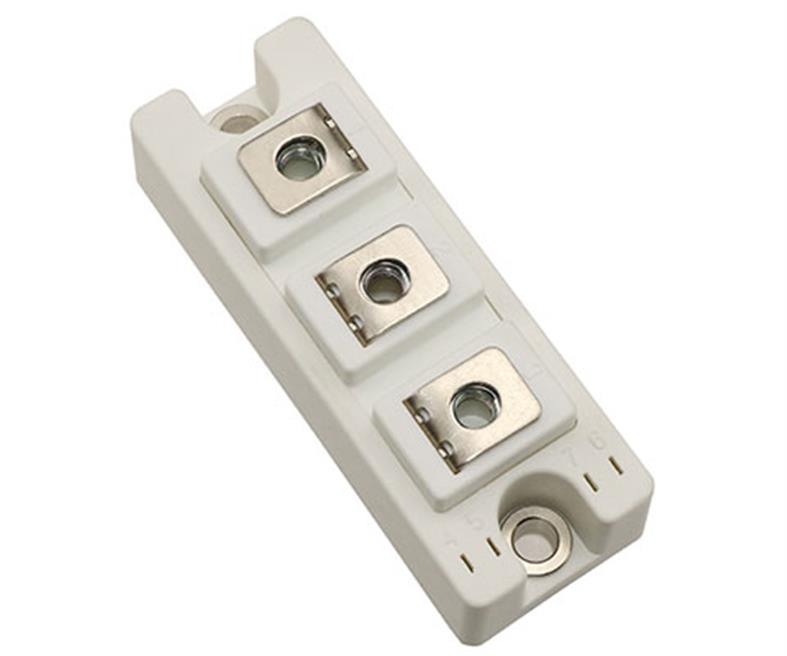

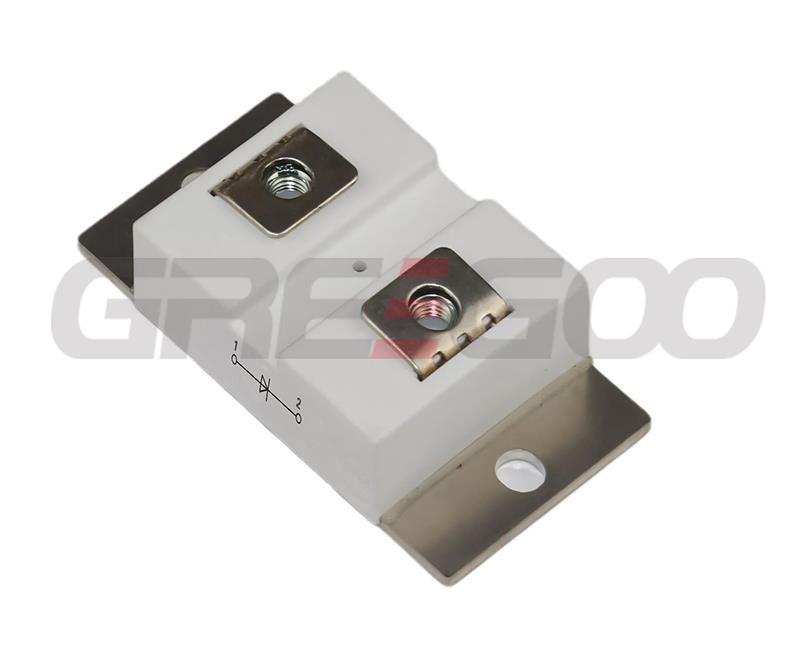

Part | Vrrm | If(av) | Ifsm | Vf @ If Tj=125℃ | Trr | Rθjc | Inside | Package | |
Number | Duty=0.5 | t=10ms | Tj=25℃ | Circuit | |||||
Tc=110℃ | Tj=45℃ | ||||||||
GF400S040B | 400 | 2×400 | 2800 | 1.6 | 400 | 110 | 0.1 | B | 94X34X30 |
GF150S060B | 600 | 2×150 | 1500 | 1.15 | 150 | 130 | 0.22 | B | 94X34X30 |
GF200S060B | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | B | 94X34X30 |
GF300S060B | 600 | 2×300 | 3000 | 1.15 | 300 | 150 | 0.14 | B | 94X34X30 |
GF150S120B | 1200 | 2×150 | 1500 | 1.6 | 150 | 145 | 0.22 | B | 94X34X30 |
GF200S120B | 1200 | 2×200 | 1800 | 2.3 | 200 | 110 | 0.22 | B | 94X34X30 |
GF300S120B | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | B | 94X34X30 |
GF150S060B2B | 600 | 2×150 | 1500 | 1.15 | 150 | 130 | 0.22 | B2B | 94X34X30 |
GF200S060B2B | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | B2B | 94X34X30 |
GF300S060B2B | 600 | 2×300 | 3000 | 1.15 | 300 | 150 | 0.14 | B2B | 94X34X30 |
GF150S120B2B | 1200 | 2×150 | 1500 | 1.6 | 150 | 145 | 0.22 | B2B | 94X34X30 |
GF200S120B2B | 1200 | 2×200 | 1800 | 1.9 | 200 | 110 | 0.22 | B2B | 94X34X30 |
GF300S120B2B | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | B2B | 94X34X30 |
GF150S060DA | 600 | 2×150 | 1500 | 1.15 | 150 | 130 | 0.22 | DA | 94X34X30 |
GF200S060DA | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | DA | 94X34X30 |
GF300S060DA | 600 | 2×300 | 3000 | 1.15 | 300 | 150 | 0.14 | DA | 94X34X30 |
GF150S120DA | 1200 | 2×150 | 1500 | 1.6 | 150 | 145 | 0.22 | DA | 94X34X30 |
GF200S120DA | 1200 | 2×200 | 1800 | 2.3 | 200 | 110 | 0.22 | DA | 94X34X30 |
GF300S120DA | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | DA | 94X34X30 |
GF150S060DA2B | 600 | 2×150 | 1500 | 1.25 | 150 | 95 | 0.3 | DA2B | 94X34X30 |
GF200S060DA2B | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | DA2B | 94X34X30 |
GF300S060DA2B | 600 | 2×300 | 3000 | 1.1 | 300 | 165 | 0.15 | DA2B | 94X34X30 |
GF150S120DA2B | 1200 | 2×150 | 1500 | 1.3 | 150 | 145 | 0.22 | DA2B | 94X34X30 |
GF200S120DA2B | 1200 | 2×200 | 1800 | 2.3 | 200 | 110 | 0.22 | DA2B | 94X34X30 |
GF300S120DA2B | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | DA2B | 94X34X30 |
GF150S060DK | 600 | 2×150 | 1500 | 1.15 | 150 | 130 | 0.22 | DK | 94X34X30 |
GF200S060DK | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | DK | 94X34X30 |
GF300S060DK | 600 | 2×300 | 3000 | 1.15 | 300 | 150 | 0.14 | DK | 94X34X30 |
GF150S120DK | 1200 | 2×150 | 1500 | 1.6 | 150 | 145 | 0.22 | DK | 94X34X30 |
GF200S120DK | 1200 | 2×200 | 1800 | 2.3 | 200 | 110 | 0.22 | DK | 94X34X30 |
GF300S120DK | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | DK | 94X34X30 |
GF400S040DK2B | 400 | 2×400 | 2800 | 1.6 | 400 | 110 | 0.1 | DK | 94X34X30 |
GF150S060DK2B | 600 | 2×150 | 1500 | 1.25 | 150 | 95 | 0.3 | DK2B | 94X34X30 |
GF200S060DK2B | 600 | 2×200 | 2000 | 1.15 | 200 | 140 | 0.18 | DK2B | 94X34X30 |
GF300S060DK2B | 600 | 2×300 | 3000 | 1.1 | 300 | 165 | 0.15 | DK2B | 94X34X30 |
GF400S060DK2B | 600 | 2×400 | 4000 | 1.3 | 400 | 162 | 0.11 | DK2B | 94X34X30 |
GF150S120DK2B | 1200 | 2×150 | 1500 | 1.6 | 150 | 145 | 0.22 | DK2B | 94X34X30 |
GF200S120DK2B | 1200 | 2×200 | 1800 | 2.3 | 200 | 110 | 0.22 | DK2B | 94X34X30 |
GF300S120DK2B | 1200 | 2×300 | 2700 | 2.8 | 300 | 135 | 0.14 | DK2B | 94X34X30 |
GF600S060U | 600 | 600 | 4800 | 1.15 | 600 | 175 | 0.075 | U | 94X34X30 |
GF300S120U | 1200 | 300 | 2500 | 2.75 | 300 | 150 | 0.14 | U | 94X34X30 |
GF400S120U | 1200 | 400 | 3200 | 3 | 400 | 180 | 0.11 | U | 94X34X30 |
GF600S120U | 1200 | 600 | 4800 | 2.8 | 600 | 200 | 0.1 | U | 94X34X30 |
GF400S170U | 1700 | 400 | 4000 | 1.8 | 400 | 1100 | 0.09 | U | 94X34X30 |
