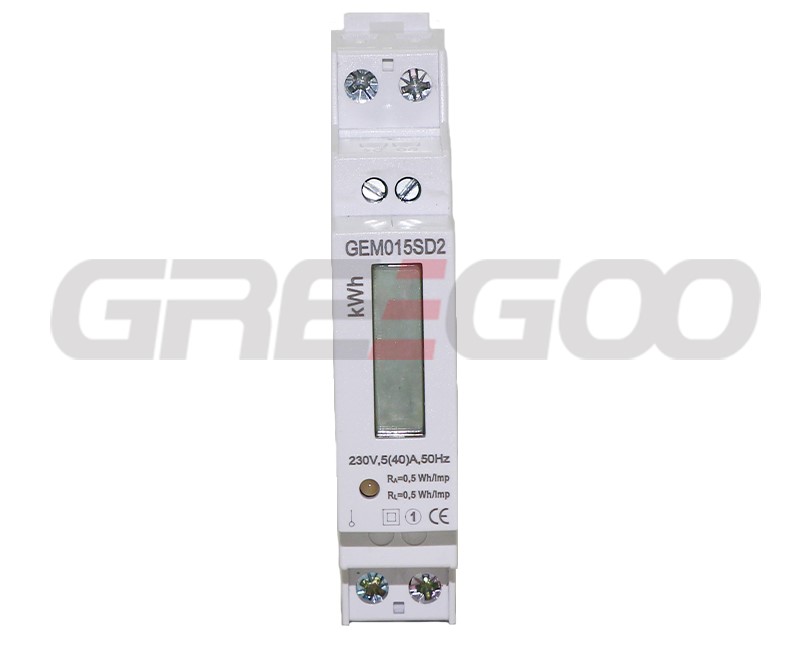

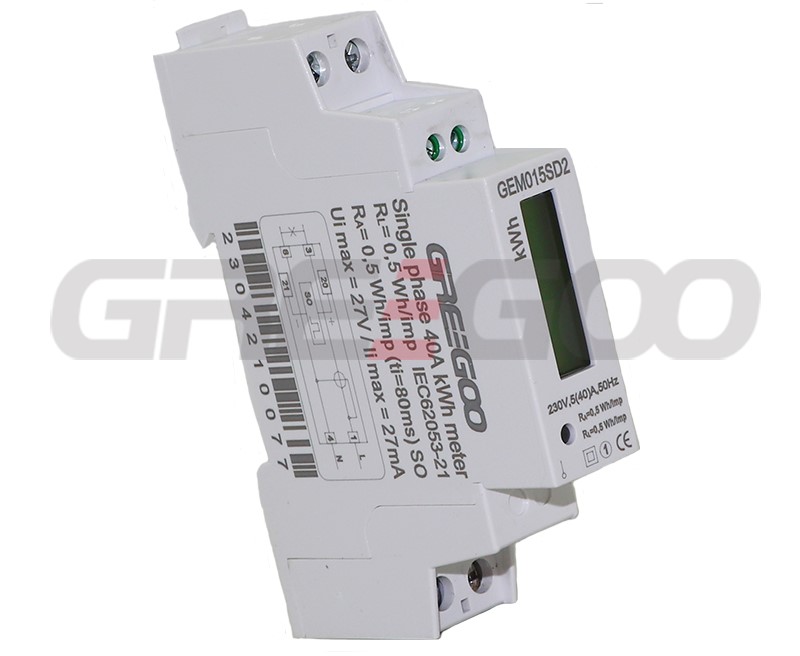

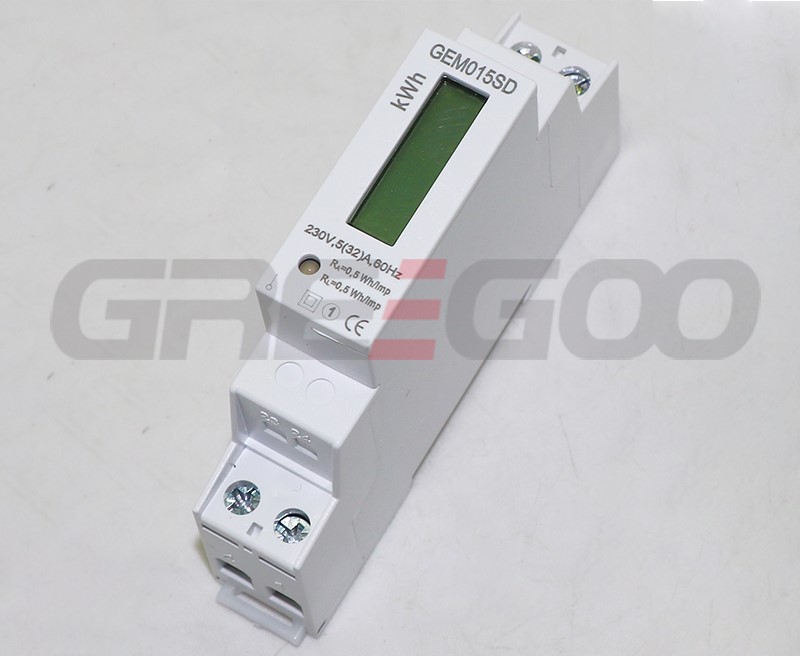

GEM015SD single phase din rail active energy meter

GEM015SD – 5/40A DIN rail single phase two wire energy meter


Performance criteria:
Operating humidity:≤75%
Storage humidity:≤95%
Operating temperature:-10℃-+50℃
Storage temperature:-30C-+70℃
International standard:IEC 62053-21
Accuracy class:1
Protection against penetration of dust and water:IP51
Insulating encased meter of protective class: II


Model Phase Rated current Output voltage Accuracy Frequency Module Width Type
GEM015SD1 Single phase 5(40)A 127VAC Class I 60Hz 1MW=18mm General

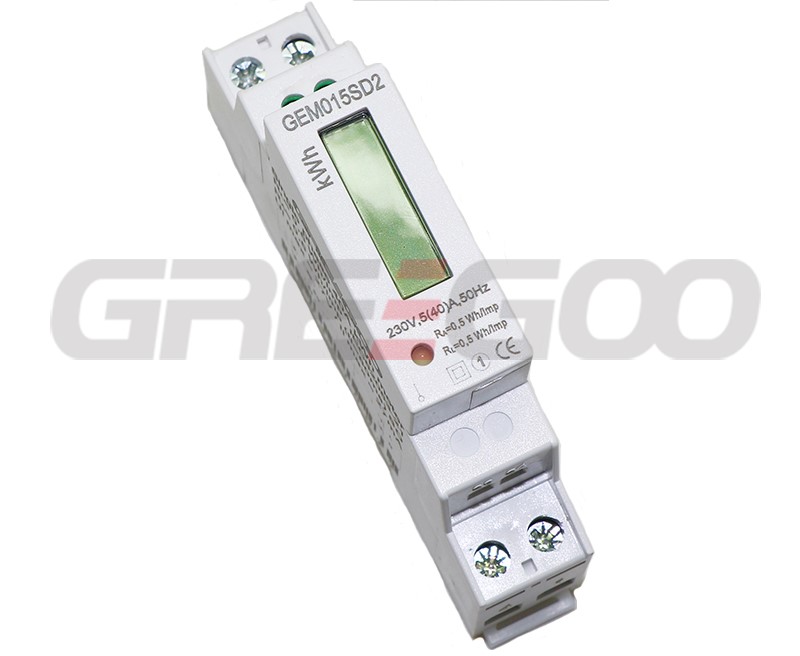

GEM015SD2 Single phase 5(40)A 230VAC Class I 50Hz 1MW=18mm General


Specification

Insulation capabilities:
- AC voltage withstand: 4KV for 1 minute
- Impulse voltage withstand: 6KV-1.2μS waveform
Basic current (Ib): 5A
Maximum rated current (Imax):40A
Operational current range: 0.25A-40A
Over current withstand: 960A for 0.01s
Operational frequency range: 50Hz±10%
Internal power consumption: ≤2W/ 10VA

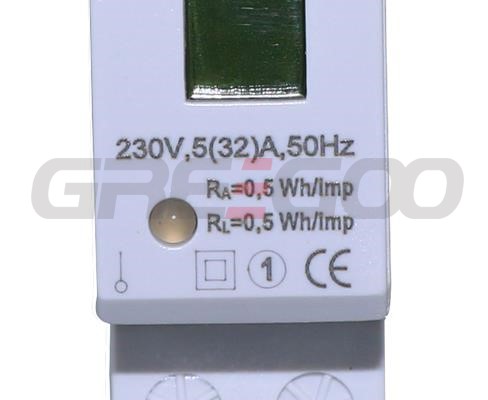

Test output flash rate (RED LED): 2000 impulses per kWh (0.5Wh/imp)
Pulse output rate (pins 20 & 21): 2000 pulses per kWh (0.5Wh/imp)
Power supply indicator (Green LED): Meter is connected and working OK
Consumption indicator (RED LED): Flashing at load running
Data display mode: 7+1 digits for LCD display
Data save: The data can be stored more than 20 years when power cut.

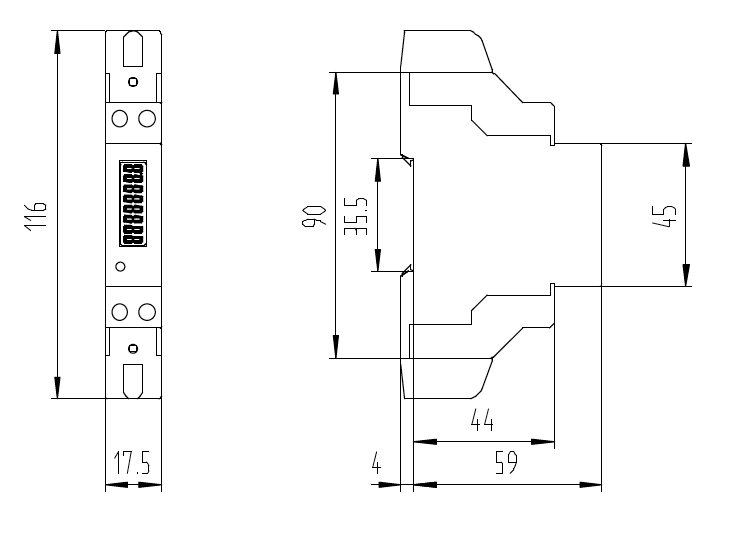

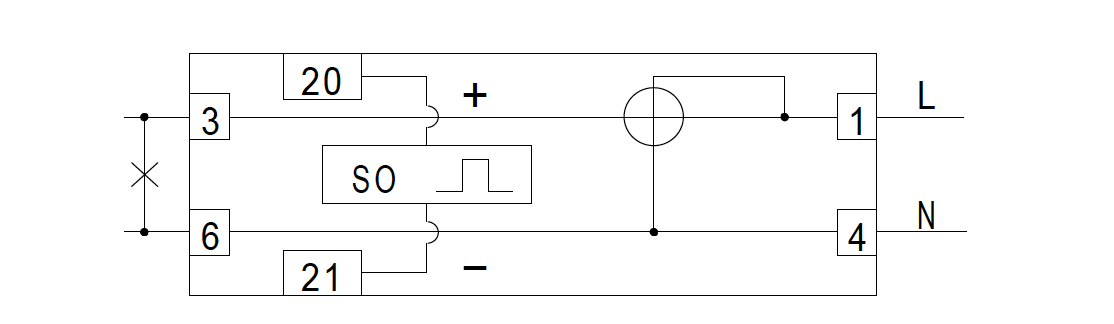

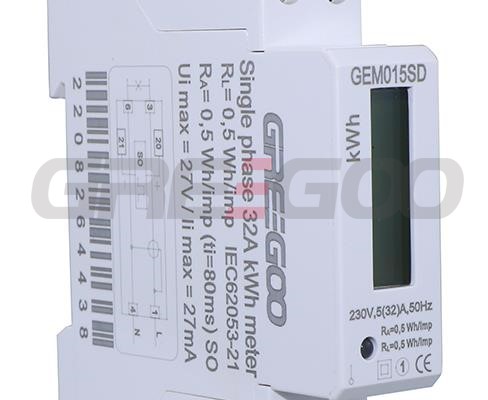

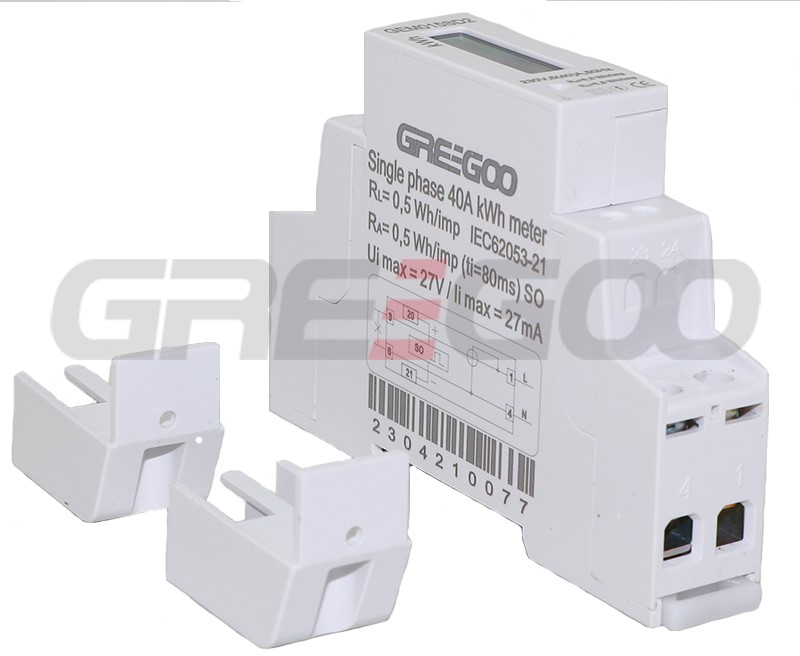

1 - Inlet phase line
4 - Inlet neutral line
3 - Outgoing phase line
6 - Outgoing neutral line
20 and 21 - Pulse output contact
