Glass and SIPOS Passivation High Voltage Diodes

Features

• Glass and SIPOS passivation chip
• High Reverse Voltage
• Low Reverse Leakage Current
• Low cost
• Plastic material has UL flammability recognition 94V-0
• High surge current capability to  30  Amperes
• ROHS  compliance
• High  temperature  soldering  guaranteed: 260℃±5℃/10  seconds

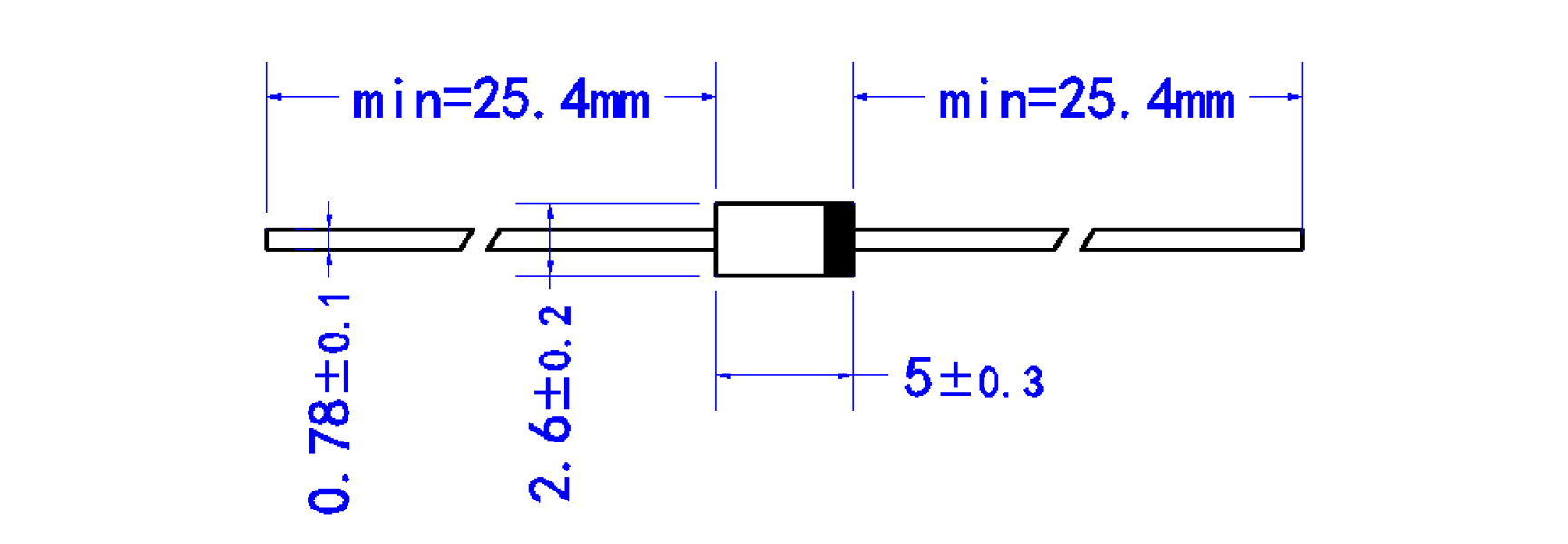

Mechanical Data

• Case: Molded plastic case
• Terminals: Plated leads solderable per MIL-STD-750, Method 2026

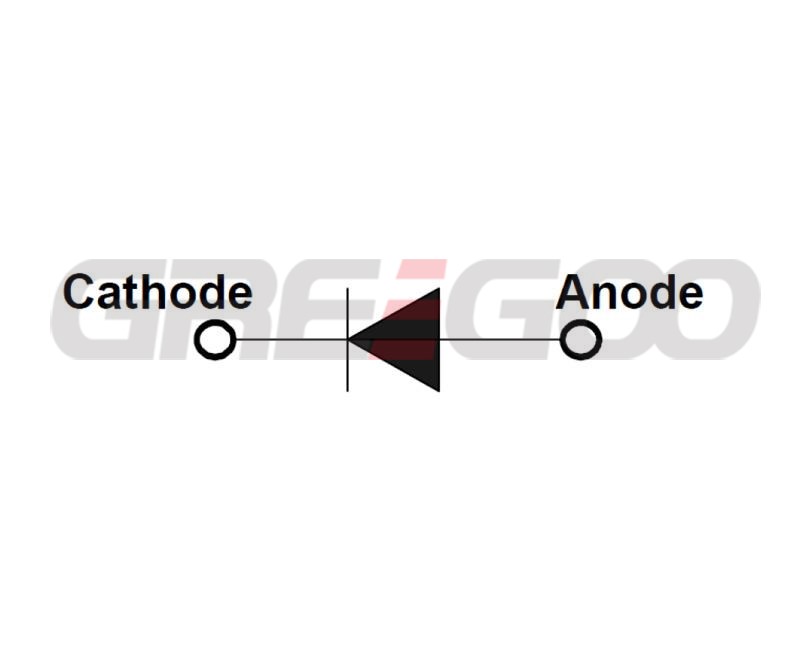

• Polarity: Marked on Body
• Mounting Position: Any
• Weight: 0.33g (Approximately)

Product scope of application

• For high voltage rectification

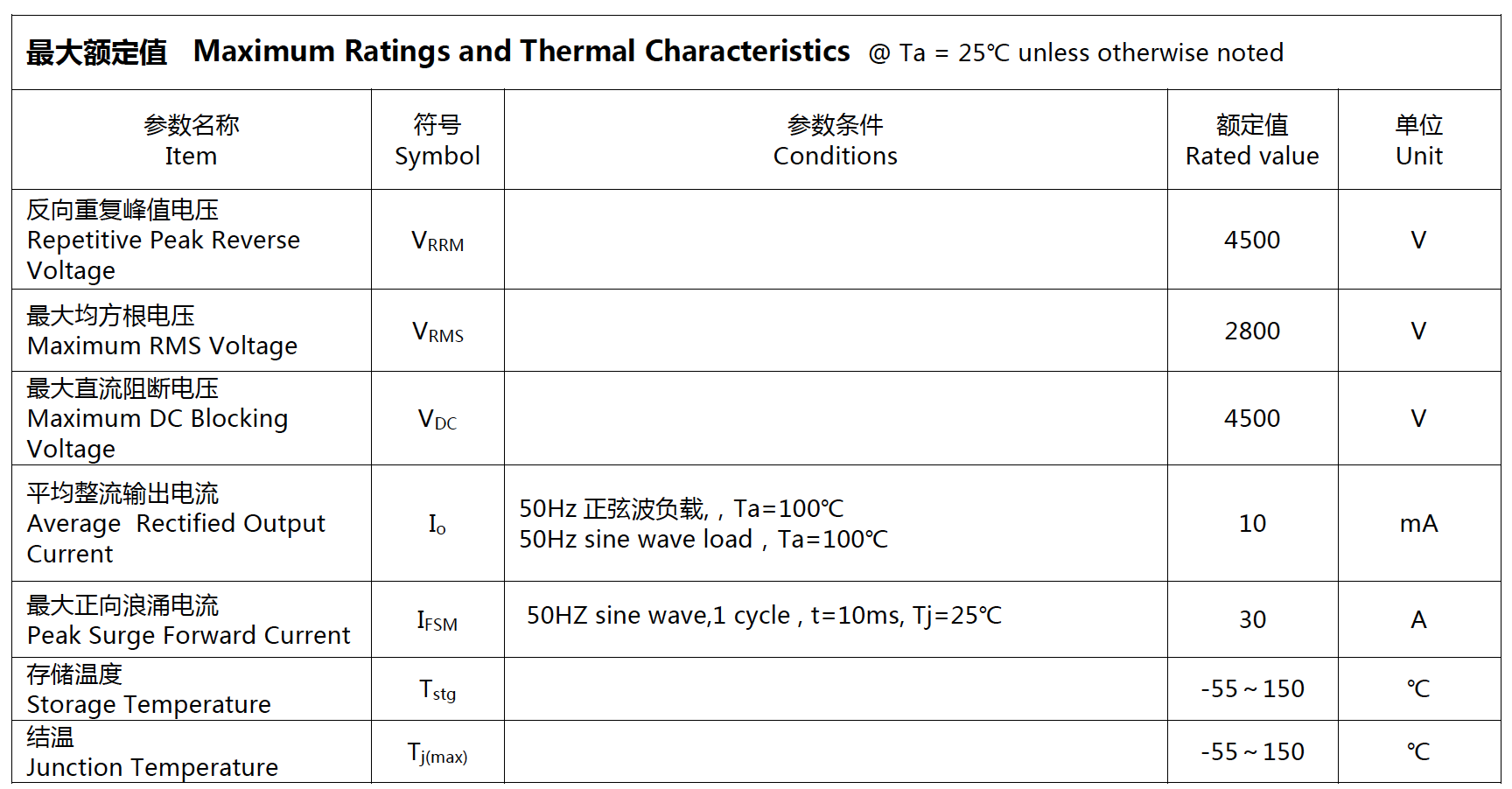

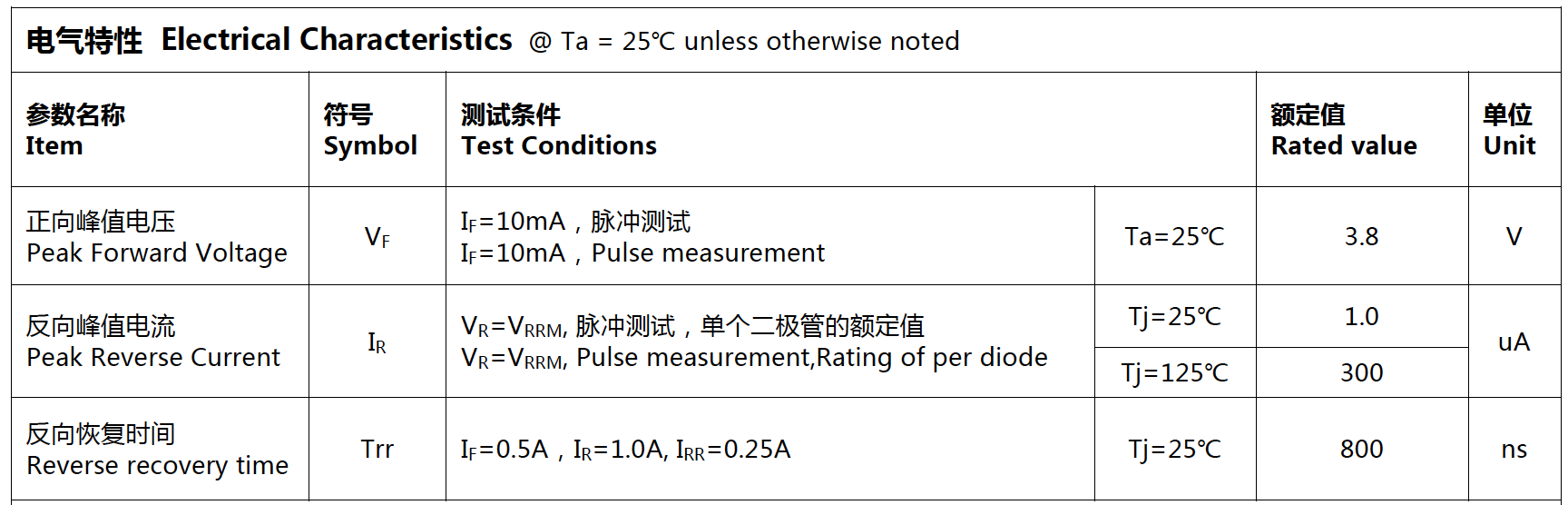

Type: GHV40N

VRRM（V）4500V

VRSM（V）5000V
