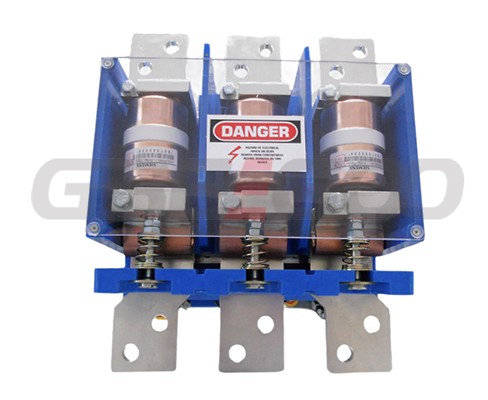

GVC9-1400A/1000V vacuum contactor for wind and solar power inverter controlled system

Greegoo GVC9 series vacuum contactors are specifically designed for very high current ranges from 800 A to 1,400 A. With their electronically controlled drives, compact size and long service life, the contactors make for a reliable component in any machine and system.

Features:

Utilization category AC 1 and AC 3
Suitable for up to 1,000 V
AC/DC wide-range coil
Low holding power
Compact size, space saving of electrical switch cabinet
Auxiliary contacts: three NO, three NC
Significantly less heating of switch cabinet
Longer service life of the switching contacts
A tighter arrangement of the switchgear is possible

The holding power of the contactors is process-controlled, which causes significantly less heating inside the switch cabinet. In addition, this optimization of the contact forces also contributes to a longer service life of the switching contacts. The suppressor circuit is already built in, as are the three NO contacts, the three NC contacts and the auxiliary contacts.

Due to its low pull-in power, the comfort version of the contactors facilitates the implementation of smaller control transformers.

The vacuum technology allows for the implementation of a compact design, as it prevents the formation of open arcs and thus the release of any switching gases. As such, a tighter arrangement of the switchgear is possible, and the distances to conductive structures can be smaller than would otherwise be the case.
Specification


Working voltage

GVC9-800A/1000V

GVC9-1000A/1000V

GVC9-1250A/1000V

GVC9-1400A/1000V

AC-1






-25/+40°

1000v

1100A

1200A

1300A

1400A

-25/+60°

850A

1000A

1000A

1000A







-25/+40°

690V

1100A

1200A

1300A

1400A

-25/+60°

850A

1000A

1200A

1400A

AC-3






-25/+40°

1000V

435A

580A

750A

820A

690V

650A

820A

1000A

1000A

Rated impulse withstand voltage


8000V

8000V

8000V

8000V

Rated power frequency withstand voltage

Vacuum break

5000V

5000V

5000V

5000V

Phase to phase and to earth

4200V

4200V

4200V

4200V

Rated insulation voltage


1000V

1000V

1000V

1000V

Rated working voltage


1000V

1000V

1000V

1000V

Rated breaking capacity

1000V

5800A

5800A

5800A

5800A

690V

8200A

8200A

8200A

8200A

Rated making capacity

1000V

7800A

7800A

7800A

7800A

690V

10000A

10000A

10000A

10000A

Pollution degree


3

Overvoltage category


control circuitvoltage


110V/220V/380V

Electrical life


100,000 times

Mechanical life


300,000 times
