Inductive proximity sensor LMF7
Home Products Proximity Photoelectric SensorInductive proximity sensor (Rectangular type)Inductive proximity sensor LMF7
Product Details

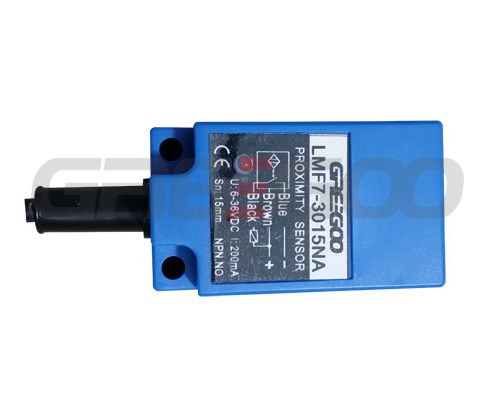

Inductive proximity sensor LMF7
Model | Sensing Distrance | Operation voltage | Output | Mounting method | Response frequency | |
Method | Mode | |||||
LMF7-3010NA | 10mm | DC6-36V | NPN | NO | Flush | 200Hz |
LMF7-3010NB | 10mm | DC6-36V | NPN | NC | Flush | 200Hz |
LMF7-3010PA | 10mm | DC6-36V | PNP | NO | Flush | 200Hz |
LMF7-3010PB | 10mm | DC6-36V | PNP | NC | Flush | 200Hz |
LMF7-3010LA | 10mm | DC6-36V | Two line | NO | Flush | 200Hz |
LMF7-3010LB | 10mm | DC6-36V | Two line | NC | Flush | 200Hz |
LMF7-2010A | 10mm | AC90-250V | SCR | NO | Flush | 15Hz |
LMF7-2010B | 10mm | AC90-250V | SCR | NC | Flush | 15Hz |
LMF7-2010C | 10mm | AC90-250V | SCR | NO NC | Flush | 15Hz |
LMF7-3015NA | 15mm | DC6-36V | NPN | NO | Non-flush | 200Hz |
LMF7-3015NB | 15mm | DC6-36V | NPN | NC | Non-flush | 200Hz |
LMF7-3015NC | 15mm | DC6-36V | NPN | NO NC | Non-flush | 200Hz |
LMF7-3015PA | 15mm | DC6-36V | PNP | NO | Non-flush | 200Hz |
LMF7-3015PB | 15mm | DC6-36V | PNP | NC | Non-flush | 200Hz |
LMF7-3015PC | 15mm | DC6-36V | PNP | NO NC | Non-flush | 200Hz |
LMF7-3015LA | 15mm | DC6-36V | Two line | NO | Non-flush | 200Hz |
LMF7-3015LB | 15mm | DC6-36V | Two line | NC | Non-flush | 200Hz |
LMF7-2015A | 15mm | AC90-250V | SCR | NO | Non-flush | 15Hz |
LMF7-2015B | 15mm | AC90-250V | SCR | NC | Non-flush | 15Hz |
LMF7-2015C | 15mm | AC90-250V | SCR | NO NC | Non-flush | 15Hz |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
