Inductive proximity switch LM48
Home Products Proximity Photoelectric SensorInductive proximity sensor (Rectangular type)Inductive proximity switch LM48
Product Details

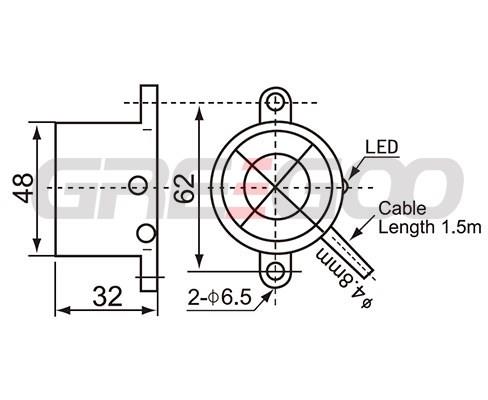

Inductive proximity switch LM48
Model NO. | Detection distance | Working voltage | Output | Flush | |
Form | State | ||||
LM48-3020NA | 20mm | DC6-36V | NPN | NO | Non-flush |
LM48-3020NB | 20mm | DC6-36V | NPN | NC | Non-flush |
LM48-3020NC | 20mm | DC6-36V | NPN | NO NC | Non-flush |
LM48-3020PA | 20mm | DC6-36V | PNP | NO | Non-flush |
LM48-3020PB | 20mm | DC6-36V | PNP | NC | Non-flush |
LM48-3020PC | 20mm | DC6-36V | PNP | NO NC | Non-flush |
LM48-3020LA | 20mm | DC6-36V | Two wire system | NO | Non-flush |
LM48 -3020LB | 20mm | DC6-36V | Two wire system | NC | Non-flush |
LM48 -2020A | 20mm | AC90-250V | SCR Control label silicon | NO | Non-flush |
LM48-2020B | 20mm | AC90-250V | SCR Control label silicon | NC | Non-flush |
LM48 -2020C | 20mm | AC90-250V | SCR Control label silicon | NO NC | Non-flush |
