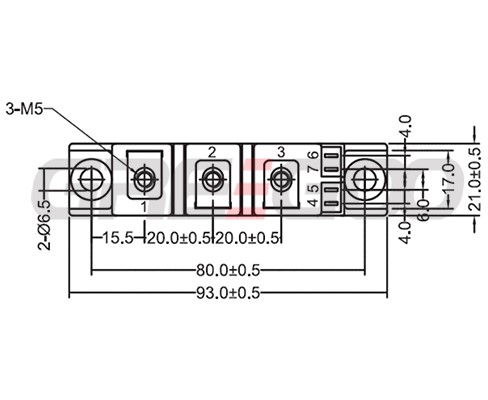

M1 half bridge chopper IGBT module
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G40HF120NU | 1200 | 40 | 3.1 | 8.1 | 0.38 | M1 |
| G40CU120NU | 1200 | 40 | 3.1 | 8.1 | 0.38 | M1 |
| G40CU120NU | 1200 | 40 | 3.1 | 8.1 | 0.38 | M1 |
