Phase Control Thyristor T222
Home Products Stud Screw Fit ThyristorStud Thyristor (Russian version)Phase Control Thyristor T222
Product Details
Phase Control Thyristor T222

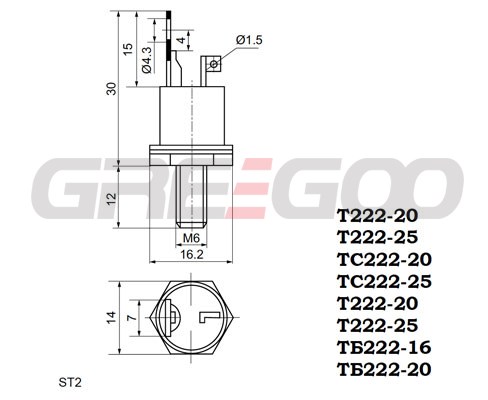

Type | VDRM | IT(AV) | ITSM | VTM /ITM | V T(TO) | rT | (diT/ | duD/dt) cr | t q(typ) | R th(j-c) | TVJM | Md | Case |
VRRM | dt)cr | ||||||||||||
(TC,ºC) | 10ms | TVJM | TVJM | TVJM | TVJM | TVJM | |||||||
V | A | kA | V/A | V | mΩ | A/μs | V/μs | μs | ºC/W | ºC | Nm | ºC/W | |
T222-20 | 100-1300 | 20(93) | 0.3 | 1.70/63 | 1.15 | 17.2 | 125 | 50-1000 | 80 | 0.8 | 125 | 0.9-1.1 | ST2 |
T222-25 | 100-1300 | 25(90) | 0.35 | 1.75/78 | 1.1 | 10.9 | 125 | 50-1000 | 80 | 0.8 | 125 | 0.9-1.1 | ST2 |
