Product Details

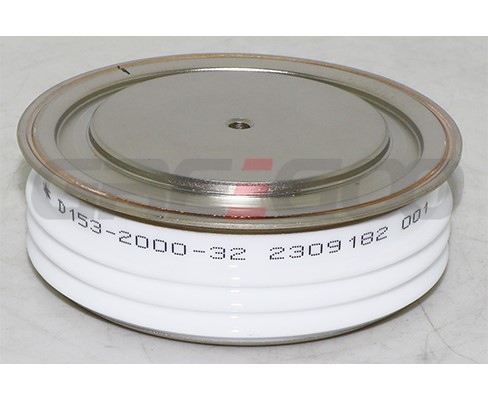

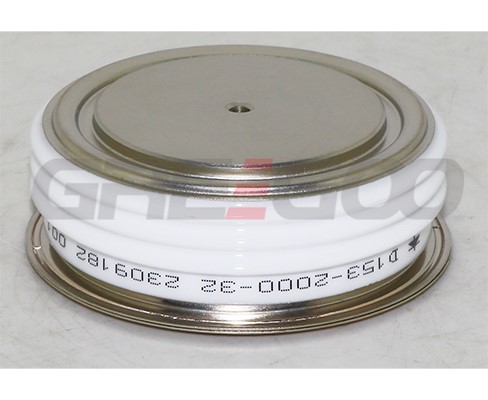

Rectifier Diode (Russia type)

Features
- Capsule type metal - ceramic packages with pressure contacts
- Reverse voltages up to 6000V
- Low on-state voltage, narrow VF – deflection for parallel operation
- Contact diameters 19, 33, 37, 50, 63, 75, 86, 100 mm

Typical applications
- All-purpose high power rectifier diodes
- High power drives for industrial and traction applications
- Welding

- Electroplating

Type	VRRM	IF(AV) TC= 85ºC	IFSM 10 ms	VTO	rT	Rth (j-c)	TVJM	F	Case
Type	V	A	kA	V	m W	oC/W	oC	kN	Case
Upto 1200V
D123-630	200-1000	880	9.0	0.72	0.35	0.08	190	6	PD21
D133-1600	200-1000	1810	18	0.72	0.147	0.036	175	10	PD32
D143-2000	200-1000	2400	24	0.73	0.11	0.027	175	15	PD42
D253-4000	200-1000	4100	65	0.82	0.037	0.017	190	26	PD53
D153-6300	200-400	6930	50	0.80	0.026	0.011	180	22	PD50
D163-4000	200-1000	4700	55	0.73	0.040	0.015	175	33	PD63
D173-6300	200-1000	7530	75	0.73	0.025	0.010	175	75	PD73
Upto 2200V
D123-500	1000-2200	690	7.5	0.77	0.54	0.08	180	6	PD21
D133-1250	1200-2200	1480	16	0.77	0.250	0.036	180	10	PD32
D243-1600	1200-2200	2000	22	0.77	0.18	0.027	175	15	PD42

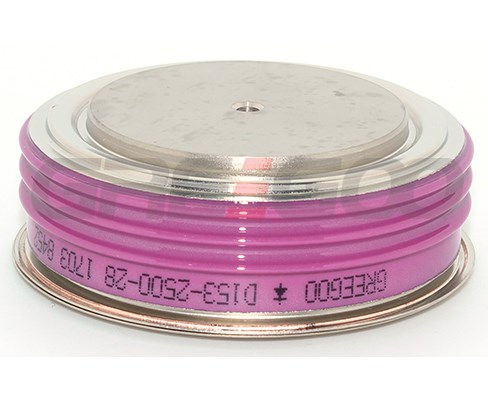

D153-2500	1200-2200	3440	37	0.77	0.08	0.018	175	26	PD53
D163-3200	1200-2200	4080	48	0.77	0.06	0.016	175	33	PD63
D173-5000	1200-2200	6410	65	0.77	0.040	0.010	175	45	PD73
D183-6300	1200-2200	7460	90	0.77	0.040	0.008	175	70	PD83
D193-8000	1200-2200	10220	98	0.85	0.029	0.0065	175	85	PD93
