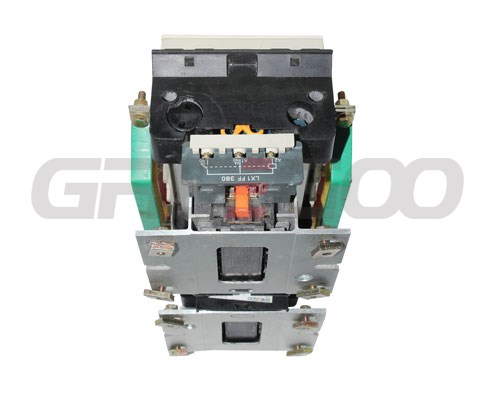

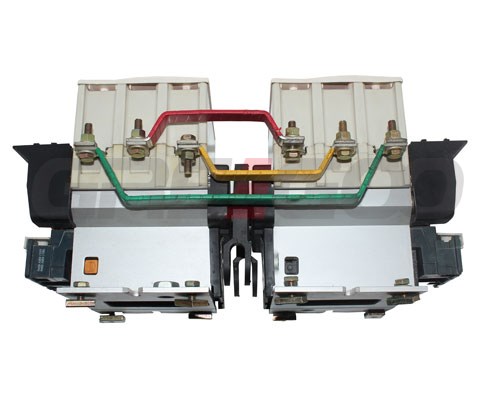

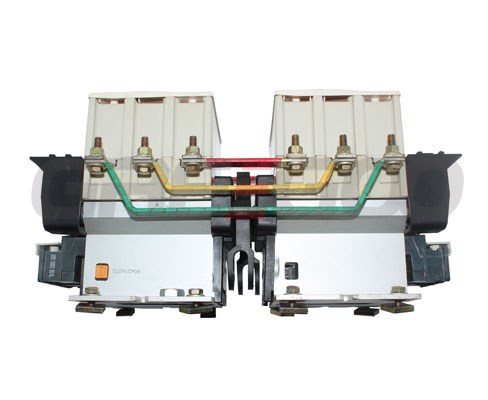

Reversing Magnetic Contactors (GLC2-F)
| Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 ( 55 ) | Rated operational current in AC-3 up to 440V (A) | Basic reference. (2) | |||||
| 220V 230V (kW) | 380V 400V (kW) | 415V (kW) | 440V (kW) | 500V (kW) | 660V 690V (kW) | ||
| Screw fixing, cabling (1) | |||||||
| 30 | 55 | 59 | 59 | 75 | 80 | 115 | GLC2-F1153 |
| 30 | 55 | 59 | 59 | 75 | 80 | 115 | GLC2-F1154 |
| 40 | 75 | 80 | 80 | 90 | 100 | 150 | GLC2-F1503 |
| 40 | 75 | 80 | 80 | 90 | 100 | 150 | GLC2-F1504 |
| 55 | 90 | 100 | 100 | 110 | 110 | 185 | GLC2-F1853 |
| 55 | 90 | 100 | 100 | 110 | 110 | 185 | GLC2-F1854 |
| 63 | 110 | 110 | 110 | 129 | 129 | 225 | GLC2-F2253 |
| 63 | 110 | 110 | 110 | 129 | 129 | 225 | GLC2-F2254 |
| 75 | 132 | 140 | 140 | 160 | 160 | 265 | GLC2-F2653 |
| 75 | 132 | 140 | 140 | 160 | 160 | 265 | GLC2-F2654 |
| 100 | 160 | 180 | 200 | 200 | 220 | 330 | GLC2-F3303 |
| 100 | 160 | 180 | 200 | 200 | 220 | 330 | GLC2-F3304 |
| 110 | 200 | 220 | 250 | 257 | 280 | 400 | GLC2-F4003 |
| 110 | 200 | 220 | 250 | 257 | 280 | 400 | GLC2-F4004 |
| 147 | 250 | 280 | 295 | 355 | 335 | 500 | GLC2-F5003 |
| 147 | 250 | 280 | 295 | 355 | 335 | 500 | GLC2-F5004 |
| 200 | 335 | 375 | 400 | 400 | 450 | 630 | GLC2-F6303 |
| 200 | 335 | 375 | 400 | 400 | 450 | 630 | GLC2-F6304 |
| 220 | 400 | 425 | 425 | 450 | 475 | 780 | GLC2-F7803 |
| 220 | 400 | 425 | 425 | 450 | 475 | 780 | GLC2-F7804 |
