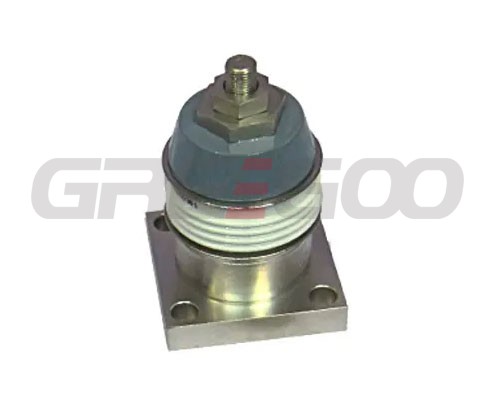

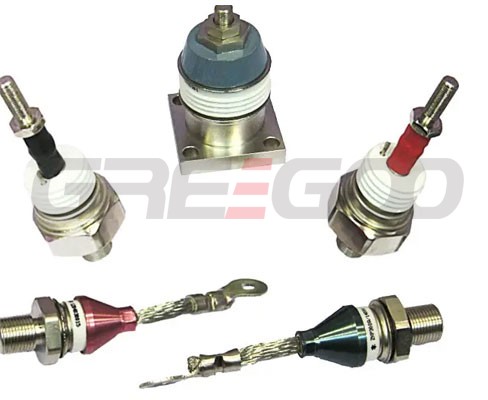

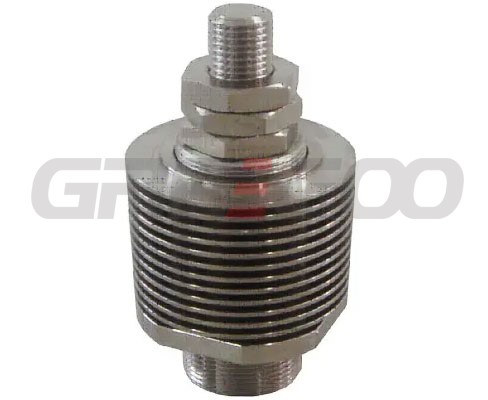

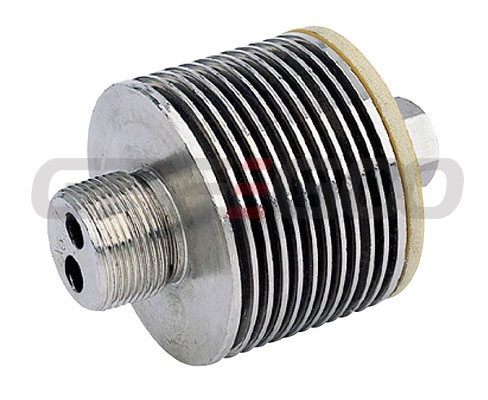

Rotating Rectifier Diode for generator
Rotating rectifier, rotating diode, generator diode, generator rectifier
Features:
• Able to work under large centrifugal force
Applications:
• Rotating excitation of generator and electric motor
YPE | IF(AV) @TC A / ℃ |
VRRM V |
IRRM mA |
IFSM @Tjm &10ms KA |
VFM @IFM25℃ V / A |
αn Nor Acc g / g |
Rjc ℃/w |
M ±10% N.m |
Tjm ℃ |

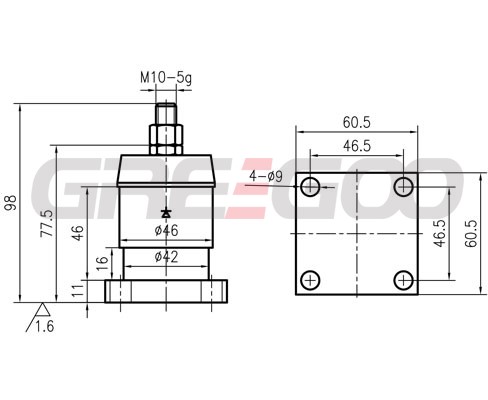

Outline | |||
ZX16 | 16 | 85 | 800~1600 | 1 | 0.23 | 1.35 | 48 | 1250 | 2500 | 1.8 | 2 | 150 | X1 |
ZX25 | 25 | 85 | 800~1600 | 1 | 0.3 | 1.35 | 75 | 1250 | 2500 | 1.2 | 2 | 150 | X1 |
ZX40 | 40 | 85 | 800~1600 | 3 | 0.4 | 1.35 | 120 | 1250 | 2500 | 0.8 | 3.5 | 150 | X2 |
ZX70 | 70 | 85 | 800~1600 | 5 | 1 | 1.35 | 210 | 1250 | 2500 | 0.45 | 3.5 | 150 | X2 |
ZX100 | 100 | 85 | 800~1600 | 7 | 1.5 | 1.6 | 300 | 1250 | 2500 | 0.3 | 13 | 150 | X3 |
ZX200 | 200 | 85 | 800~1600 | 14 | 3 | 1.6 | 600 | 1250 | 2500 | 0.2 | 16 | 150 | X4 X5 |
ZX200 | 200 | 80 | 1800~3000 | 14 | 3 | 1.8 | 600 | 1250 | 2500 | 0.2 | 16 | 150 | X4 X5 |
ZX300 | 300 | 85 | 800~1600 | 21 | 4.5 | 1.6 | 900 | 5000 | 5500 | 0.11 | 16 | 150 | X6 X7 X8 X9 |
ZX300 | 300 | 80 | 1800~3000 | 21 | 4.5 | 1.8 | 900 | 5000 | 5500 | 0.11 | 16 | 150 | X6 X7 X8 X9 |
ZX400 | 400 | 85 | 800~1600 | 30 | 6 | 1.6 | 1200 | 5000 | 5500 | 0.09 | 16 | 150 | X10 X11 X12 |
ZX400 | 400 | 80 | 1800~3000 | 30 | 6 | 1.8 | 1200 | 5000 | 5500 | 0.09 | 16 | 150 | X10 X11 X12 |
ZX500 | 500 | 85 | 800~1600 | 35 | 7.5 | 1.6 | 1500 | 5000 | 5500 | 0.068 | 16 | 150 | X10 |
ZX500 | 500 | 80 | 1800~3000 | 35 | 7.5 | 1.8 | 1500 | 5000 | 5500 | 0.068 | 16 | 150 | X10 |
ZX800 | 800 | 85 | 800~1600 | 40 | 12.1 | 1.6 | 1800 | 5000 | 5500 | 0.065 | 16 | 150 | X13 |
ZX800 | 800 | 80 | 1800~3000 | 40 | 12.1 | 1.8 | 1800 | 5000 | 5500 | 0.065 | 16 | 150 | X13 |

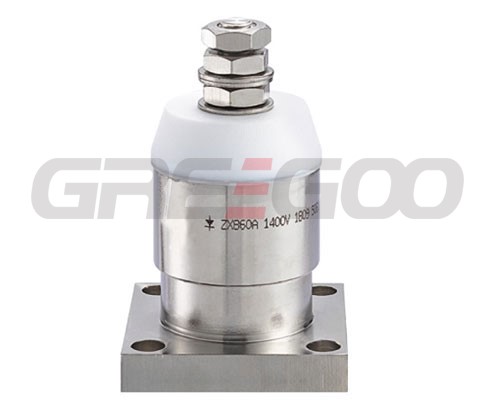

ZX860 | 860 | 85 | 1800~2700 | 60 | 13 | 1.4 | 1800 | 5000 | 7500 | 0.065 | 16 | 150 | X14 |
Excitation technology rectifier components for 30-1350MW steam turbine generators
A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
