CSA Limit Switch Sealed Type

Model

CSA

CSA-001

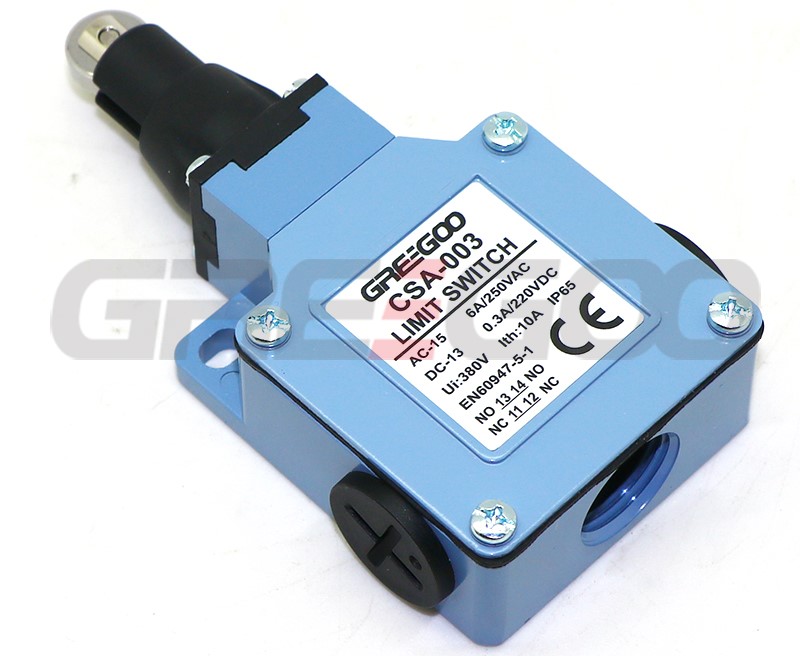

CSA-003

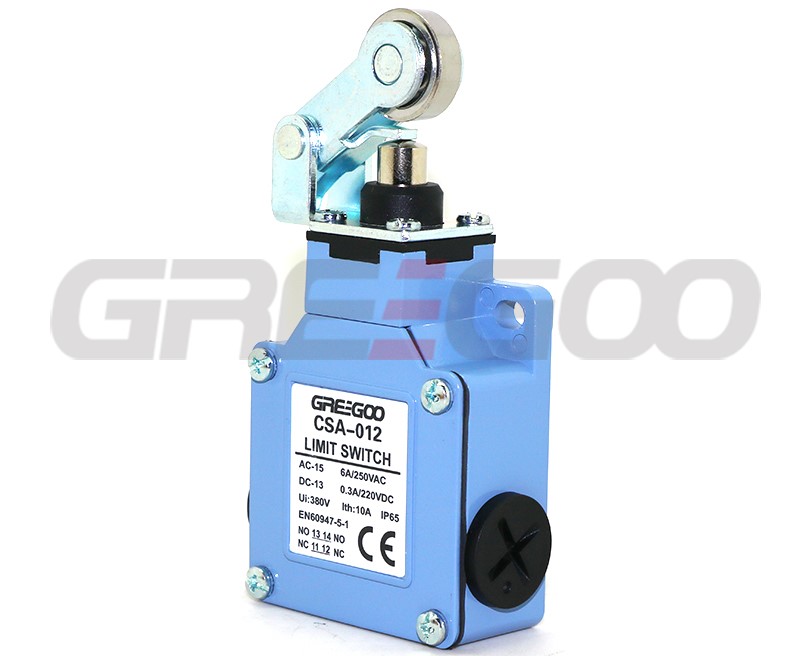

CSA-012

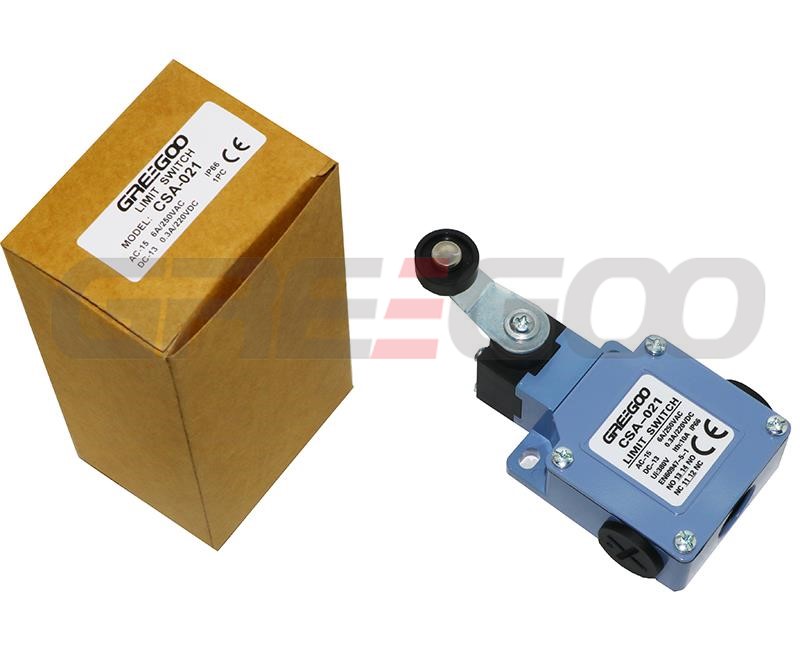

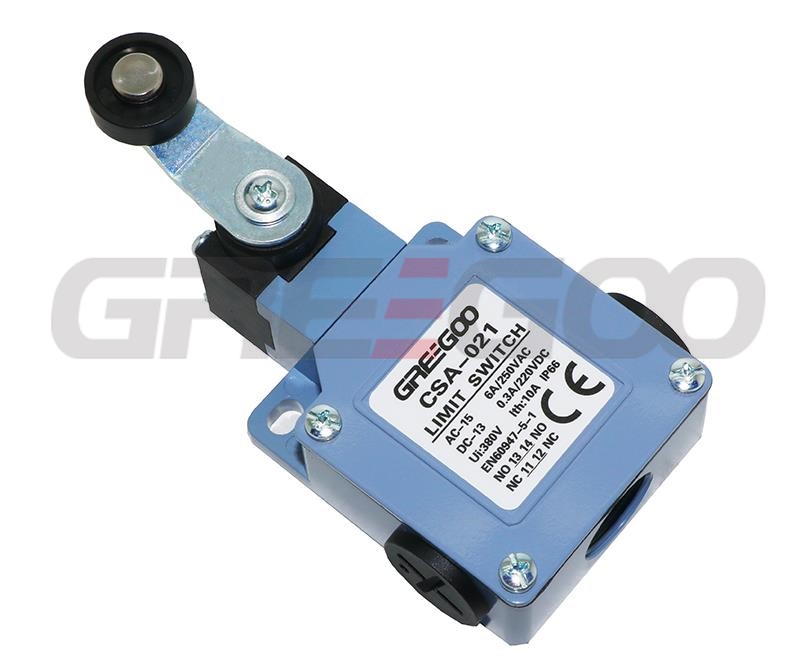

CSA-021

CSA-021M

CSA-041

CSA-031

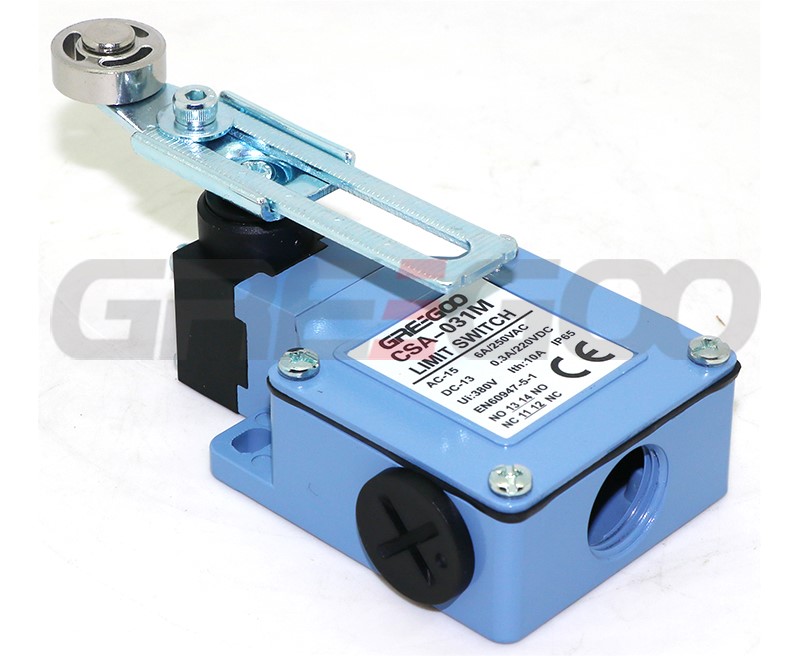

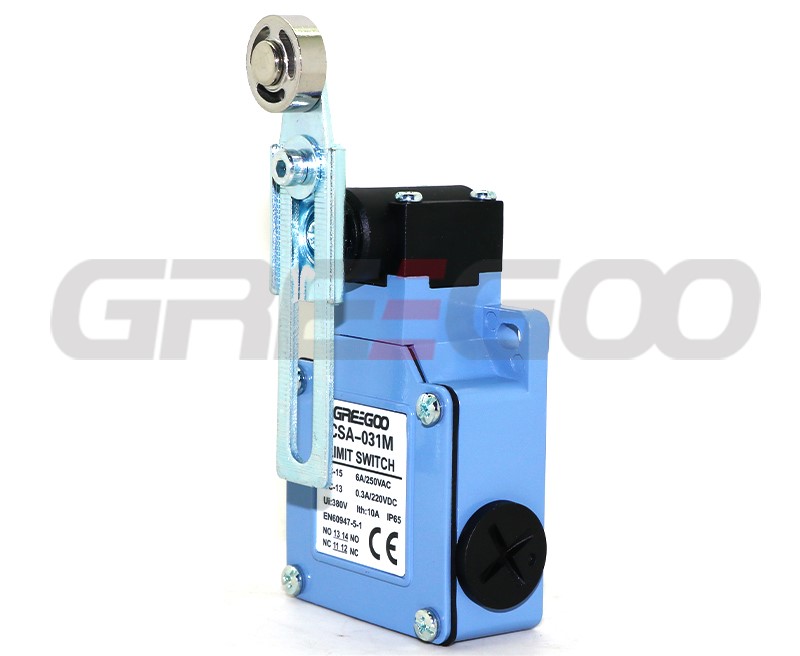

CSA-031M

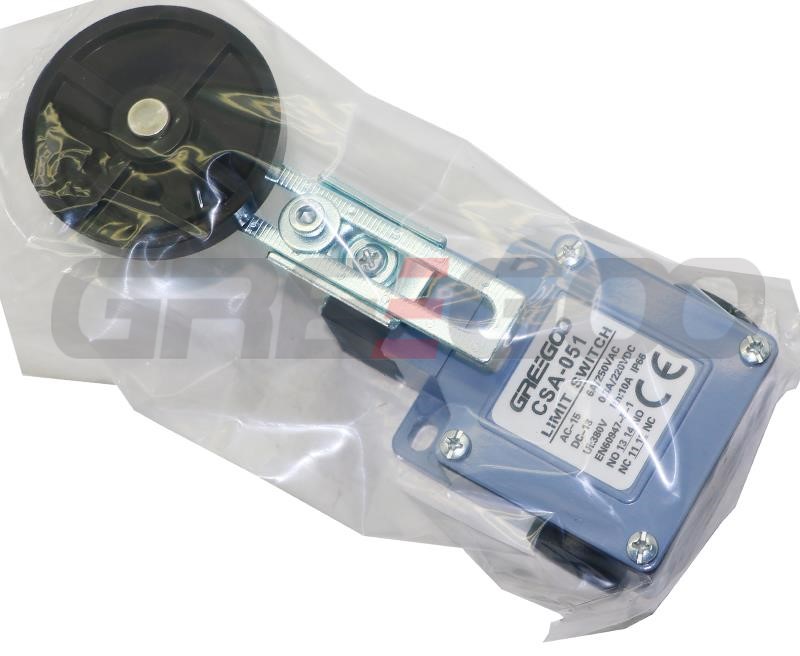

CSA-051

CSA-061

CSA-071

CSA-081

Operating force

OF

(Max.)

800g

800g

800g

400g

400g

400g

400g

150g

150g

150g

Release force

RF

(Min.)

400g

400g

400g

100g

100g

100g

100g

50g

50g

50g

Pre-travel

PT

(Max.)

1.8mm

1.8mm

1.8mm

20°

20°

20°

20°

30mm

30mm

30mm

Tripping position

TP

±10%

2.0mm

2.0mm

2.0mm

22.5°

22.5°

22.5°

22.5°

22.5°

22.5°

22.5°

Movement differential

MD

(Max.)

1.2mm

1.2mm

1.2mm

10°

10°

10°

10°

14°

14°

14°

Over travel

OT

(Min.)

4.0mm

4.0mm

4.0mm

75°

75°

75°

75°

20mm

20mm

20mm

Total travel

TT

(Min.)

5.8mm

5.8mm

5.8mm

95°

95°

95°

95°

50mm

50mm

50mm

Rotary indexing

22.5°

22.5°

22.5°

22.5°
