Single phase and three phase full controlled bridge rectifier 25A to 1600A
Home Products Diode Bridge Module Single and 3 phase Diode Bridge module (FUJI series)Single phase and three phase full controlled bridge rectifier 25A to 1600A
Product Details

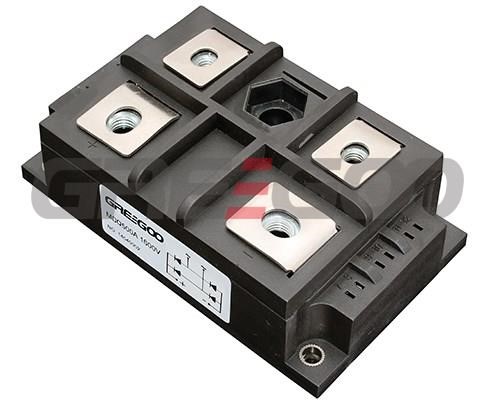

Single phase and three phase full controlled bridge rectifier 25A to 1600A

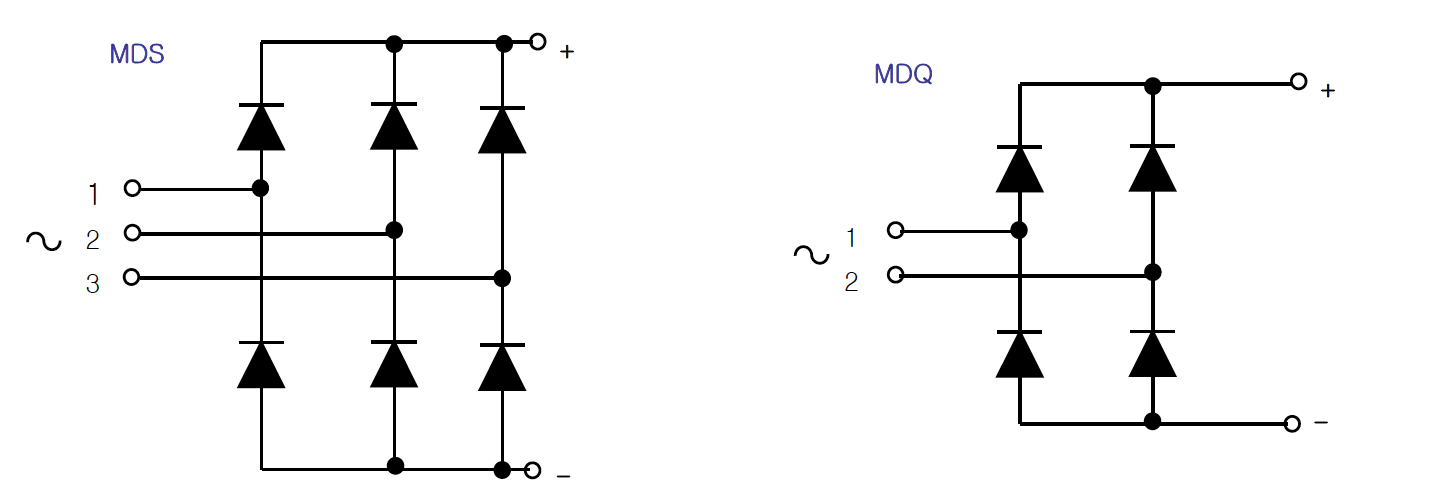

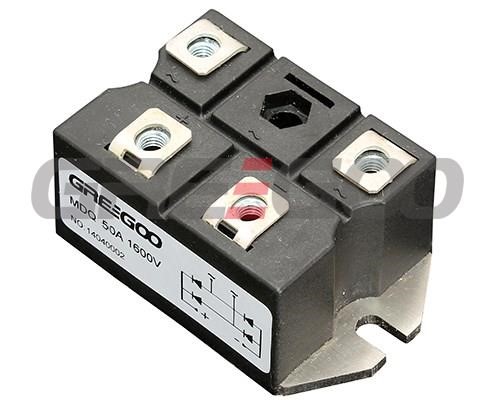

Type | VDRM | ID | TC | IFSM | I2t | VT0 | RT0 | VISO | IRRM | VFM | IFM | Rth(c-h) | Rth(j-c) |
VRRM | ITSM | (A2S) | VF0 | RF0 | /1min | IDRM | VTM | ITM | |||||
(V) | (A) | (℃) | (A) | (V) | (mΩ) | (V) | (mA) | (V) | (A) | (℃/W) | (℃/W) | ||
MDQ30 | 600-2500 | 30 | 125 | 580 | 1680 | 1 | 6.66 | 2500 | 10 | 1.42 | 90 | 0.1 | 0.951 |
MDQ50 | 600-2500 | 50 | 100 | 580 | 1680 | 1 | 6.66 | 2500 | 10 | 1.52 | 75 | 0.1 | 1.42 |
MDQ60 | 600-2500 | 60 | 115 | 940 | 4400 | 1 | 3.2 | 2500 | 10 | 1.32 | 90 | 0.1 | 0.951 |
MDQ75 | 600-2500 | 75 | 100 | 940 | 4400 | 1 | 3.2 | 2500 | 10 | 1.4 | 120 | 0.1 | 0.951 |

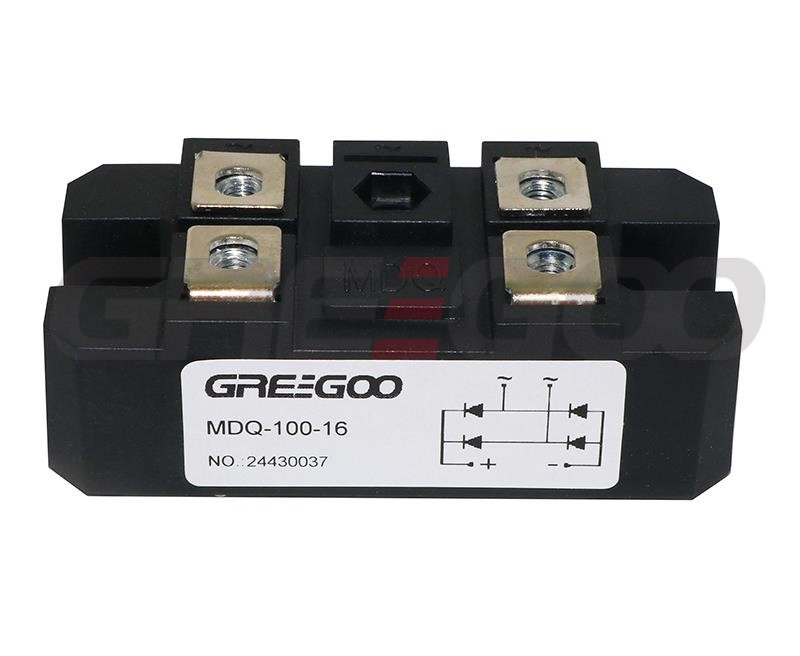

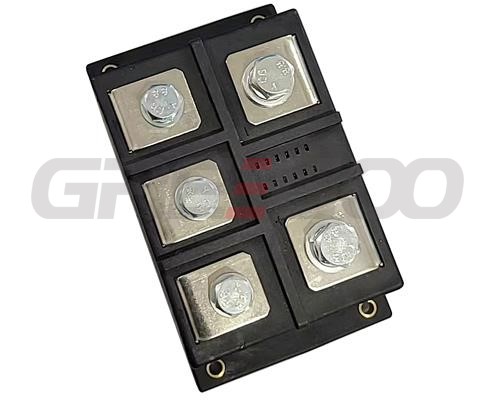

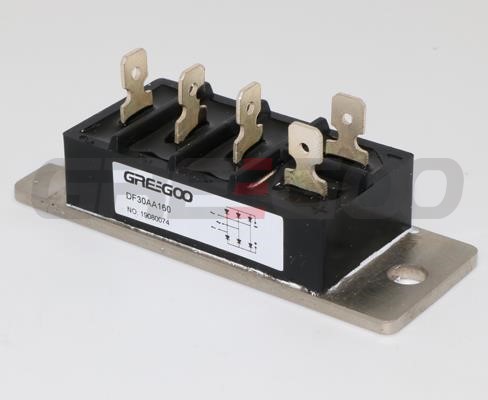

MDQ100 | 600-2500 | 100 | 100 | 1250 | 7800 | 1 | 2.33 | 2500 | 10 | 1.4 | 165 | 0.1 | 0.692 |
MDQ150 | 600-2500 | 150 | 100 | 1810 | 16400 | 0.8 | 2.1 | 2500 | 10 | 1.39 | 270 | 0.05 | 0.44 |
MDQ200 | 600-2500 | 200 | 100 | 2540 | 32200 | 0.8 | 1.63 | 2500 | 15 | 1.47 | 330 | 0.05 | 0.367 |
MDQ300 | 600-2500 | 300 | 90 | 4820 | 116100 | 0.9 | 1.12 | 2500 | 15 | 1.46 | 480 | 0.05 | 0.233 |
MDQ400 | 600-2500 | 400 | 90 | 6100 | 186000 | 0.8 | 1 | 2500 | 15 | 1.42 | 600 | 0.03 | 0.197 |
MDQ500 | 600-2500 | 500 | 90 | 7100 | 252000 | 0.75 | 0.86 | 2500 | 20 | 1.42 | 750 | 0.03 | 0.157 |
MDQ600 | 600-2500 | 600 | 85 | 8950 | 400000 | 0.75 | 0.78 | 2500 | 20 | 1.46 | 900 | 0.02 | 0.127 |
MDQ700 | 600-2500 | 700 | 85 | 10800 | 583000 | 0.8 | 0.69 | 2500 | 20 | 1.55 | 1050 | 0.02 | 0.123 |
MDQ800 | 600-2500 | 800 | 80 | 12100 | 732000 | 0.8 | 0.56 | 2500 | 20 | 1.5 | 1200 | 0.02 | 0.111 |
MDQ900 | 600-2500 | 900 | 80 | 138000 | 952000 | 0.7 | 0.45 | 2500 | 20 | 1.4 | 1500 | 0.02 | 0.096 |
MDQ1000 | 600-2500 | 1000 | 80 | 138000 | 952000 | 0.7 | 0.45 | 2500 | 20 | 1.4 | 1500 | 0.02 | 0.096 |
MDS-25 | 600-2500 | 25 | 100 | 370 | 680 | 0.85 | 7 | 2500 | 10 | 1.35 | 25 | 0.1 | 6 |
MDS-30 | 600-2500 | 30 | 100 | 380 | 700 | 0.85 | 12 | 2500 | 10 | 1.36 | 30 | 0.1 | 4.27 |
MDS-40 | 600-2500 | 40 | 100 | 580 | 1680 | 1 | 6.66 | 2500 | 10 | 1.38 | 40 | 0.1 | 1.42 |

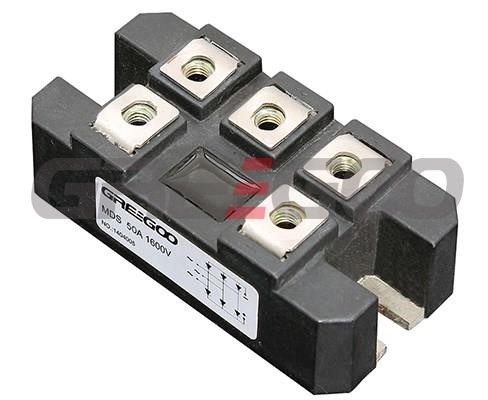

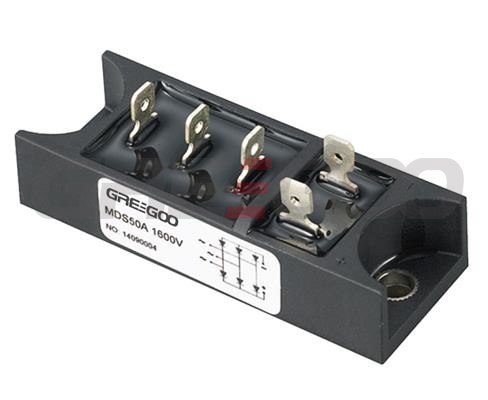

MDS-50 | 600-2500 | 50 | 100 | 580 | 1680 | 1 | 6.66 | 2500 | 10 | 1.42 | 50 | 0.1 | 1.42 |
MDS-60 | 600-2500 | 60 | 100 | 580 | 1680 | 1 | 6.66 | 2500 | 10 | 1.45 | 60 | 0.1 | 1.42 |

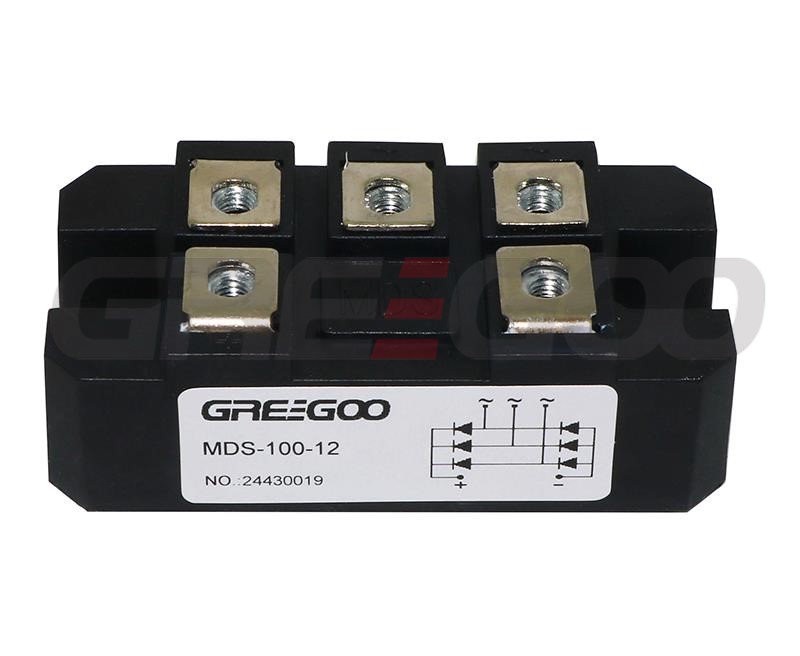

MDS-100 | 600-2500 | 100 | 100 | 940 | 4400 | 1 | 3.2 | 2500 | 10 | 1.4 | 100 | 0.05 | 0.951 |
MDS-150 | 600-2500 | 150 | 100 | 1250 | 7800 | 1 | 2.33 | 2500 | 10 | 1.4 | 150 | 0.05 | 0.692 |
MDS-160 | 600-2500 | 160 | 100 | 1250 | 7800 | 1 | 2.33 | 2500 | 10 | 1.4 | 150 | 0.05 | 0.692 |

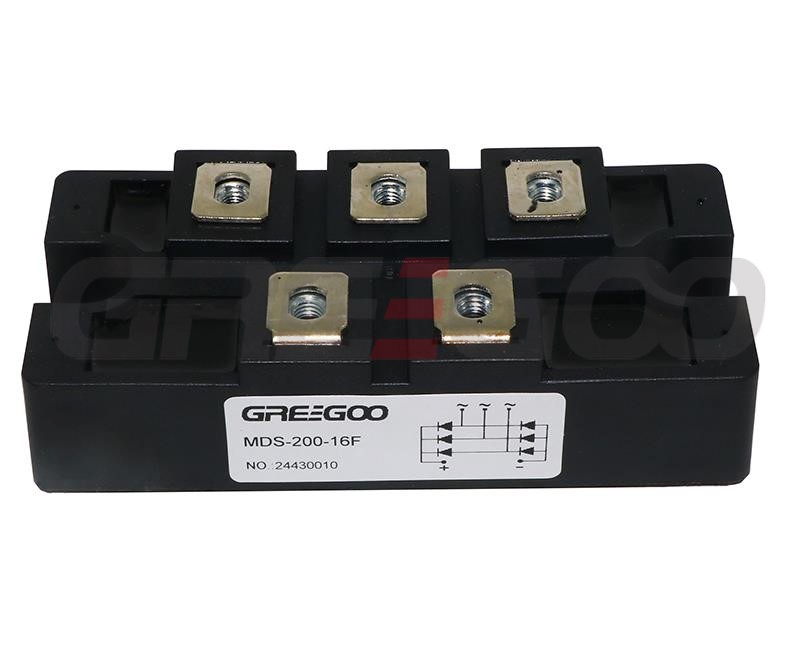

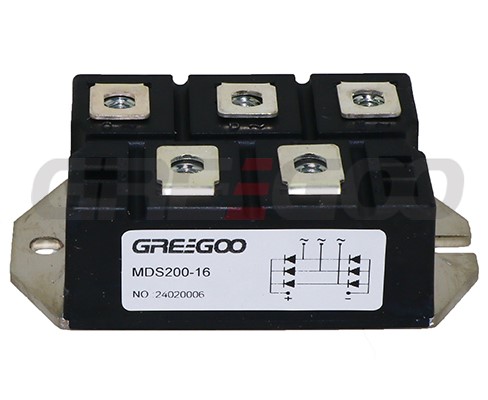

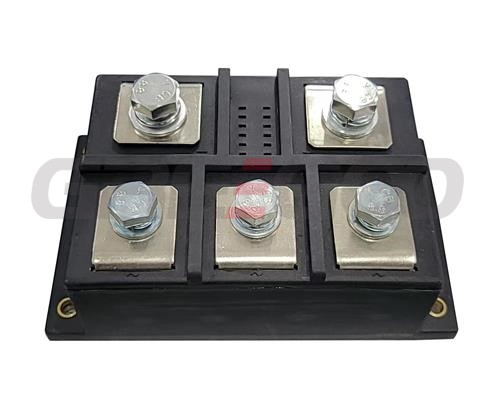

MDS-200 | 600-2500 | 200 | 100 | 1510 | 11400 | 0.9 | 2.2 | 2500 | 10 | 1.38 | 200 | 0.05 | 0.559 |
MDS-250 | 600-2500 | 250 | 100 | 1810 | 16400 | 0.8 | 2.1 | 2500 | 10 | 1.39 | 250 | 0.05 | 0.44 |
MDS-300 | 600-2500 | 300 | 100 | 2540 | 32200 | 0.8 | 1.63 | 2500 | 10 | 1.44 | 250 | 0.05 | 0.367 |
MDS-400 | 600-2500 | 400 | 100 | 4820 | 116100 | 0.9 | 1.12 | 2500 | 15 | 1.46 | 300 | 0.05 | 0.233 |
MDS-500 | 600-2500 | 500 | 100 | 6100 | 186000 | 0.8 | 1 | 2500 | 15 | 1.42 | 600 | 0.05 | 0.197 |
MDS-600 | 600-2500 | 600 | 100 | 7100 | 252000 | 0.75 | 0.86 | 2500 | 20 | 1.42 | 750 | 0.05 | 0.157 |
MDS-700 | 600-2500 | 700 | 100 | 8950 | 400000 | 0.75 | 0.78 | 2500 | 20 | 1.46 | 900 | 0.05 | 0.127 |
MDS-800 | 600-2500 | 800 | 90 | 10800 | 583000 | 0.8 | 0.69 | 2500 | 20 | 1.55 | 1050 | 0.03 | 0.123 |
MDS-900 | 600-2500 | 900 | 90 | 12100 | 732000 | 0.8 | 0.56 | 2500 | 20 | 1.5 | 1200 | 0.03 | 0.111 |
MDS-1000 | 600-2500 | 1000 | 90 | 13800 | 952000 | 0.7 | 0.45 | 2500 | 20 | 1.4 | 1500 | 0.03 | 0.096 |
MDS-1500 | 600-2500 | 1500 | 80 | 14800 | 1100000 | 0.8 | 0.41 | 2500 | 30 | 1.56 | 1800 | 0.03 | 0.084 |
Related Products
![50-100A single phase diode bridge](/UploadFiles/BigImages/copy-MDQ50-16-1.jpg)

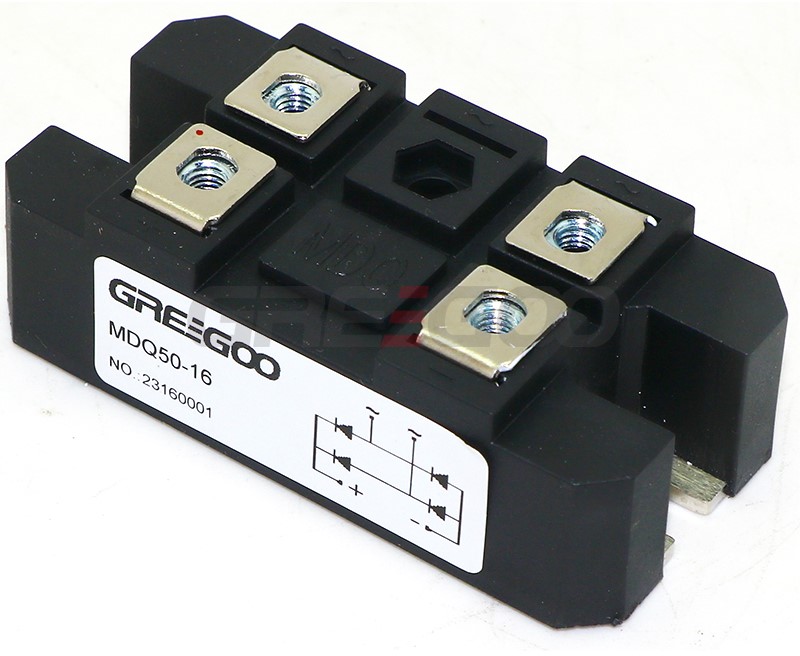

50-100A single phase diode bridge
