Product Details

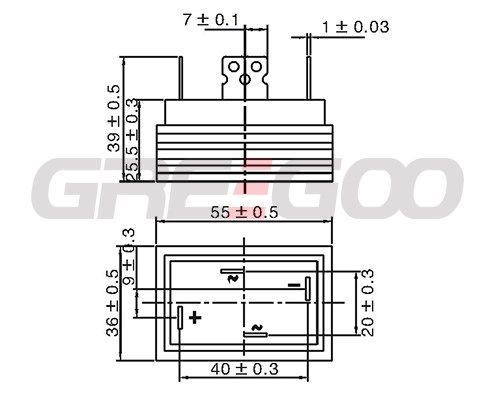

Single phase bridge rectifier QL 5/10/25/35A
Order # | V RRM | I O | @T | I FSM |
V | A | ℃ | A | |
QL0502 | 200 | 5 | 55 | 60 |
QL0506 | 600 | 5 | 55 | 60 |
QL0510 | 1000 | 5 | 55 | 60 |
QL1002 | 200 | 10 | 55 | 120 |
QL1006 | 600 | 10 | 55 | 120 |
QL1010 | 1000 | 10 | 55 | 120 |
QL2506 | 600 | 25 | 55 | 300 |
QL2510 | 1000 | 25 | 55 | 300 |
QL3506 | 600 | 35 | 55 | 400 |
QL3510 | 1000 | 35 | 55 | 400 |
