TOR (GLR9-F)
Home Products Motor ProtectionThermal Overload RelaysTOR (GLR9-F)
Product Details

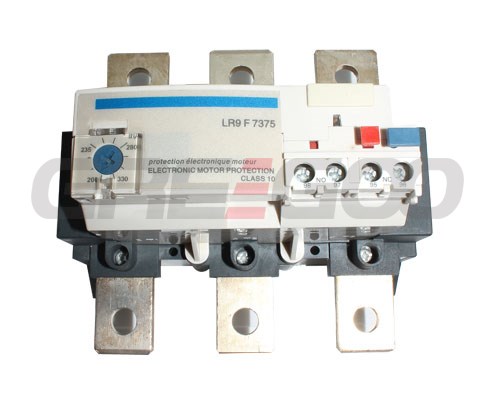

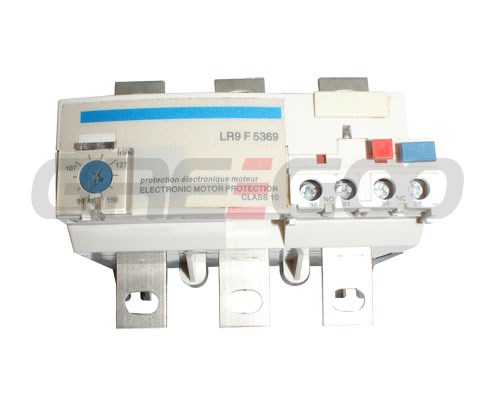

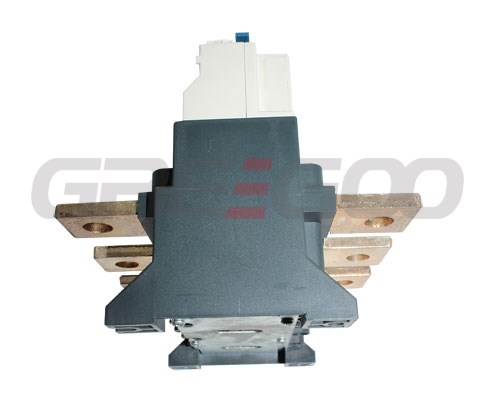

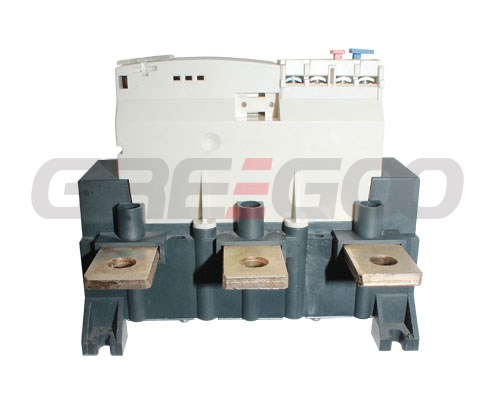

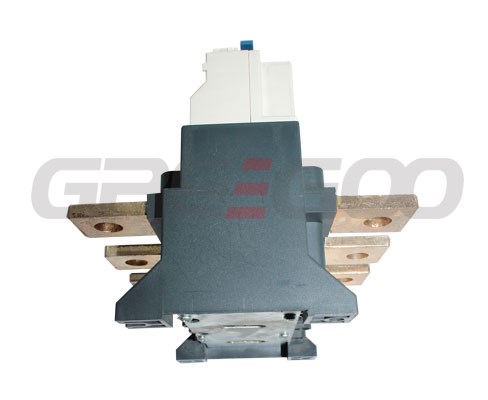

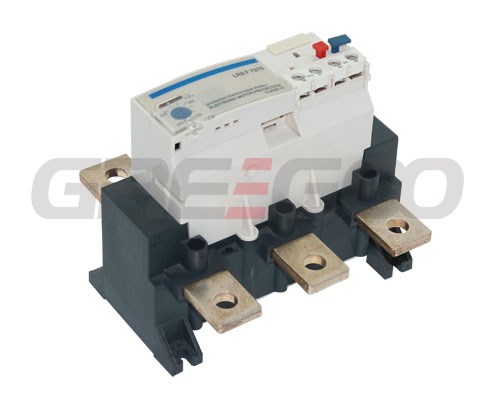

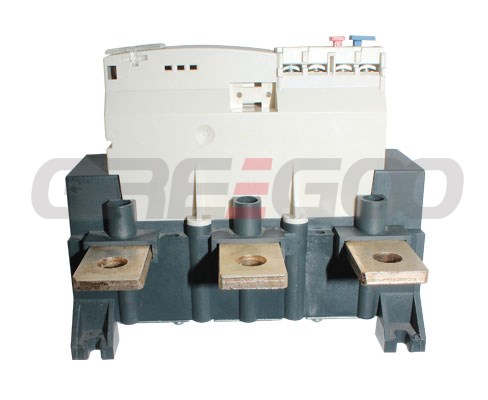

TOR (GLR9-F)
| Relay setting range(A) | Max fuses to be used with selected relay | For contactor | Reference | Weight(kg) | |
| aM (A) | gG (A) | GLC1 | |||
| 30...50 | 50 | 80 | F115...F185 | GLR9-F5357 | 0.885 |
| 48 ...80 | 80 | 125 | F115 ... F185 | GLR9-F5363 | 0.9 |
| 60 ...100 | 100 | 160 | F115 ... F185 | GLR9-F5367 | 0.9 |
| 90 ... 150 | 160 | 250 | F115...F185 | GLR9-F5369 | 0.885 |
| 132 ... 220 | 250 | 315 | F225 and F265 | GLR9-F5371 | 0.95 |
| 200...330 | 400 | 355 | F225 ...F500 | GLR9-F7375 | 2.32 |
| 300 ... 500 | 500 | 500 | F225 ...F500 | GLR9-F7379 | 2.32 |
| 380 ... 630 | 630 | 630 | F400 ...F630 | GLR9-F7381 | 4.16 |
