Product Details

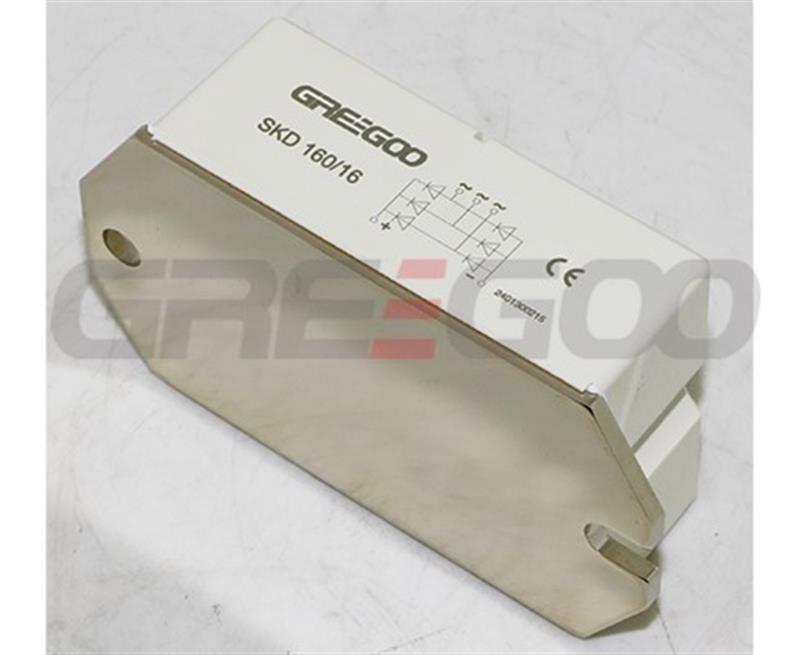

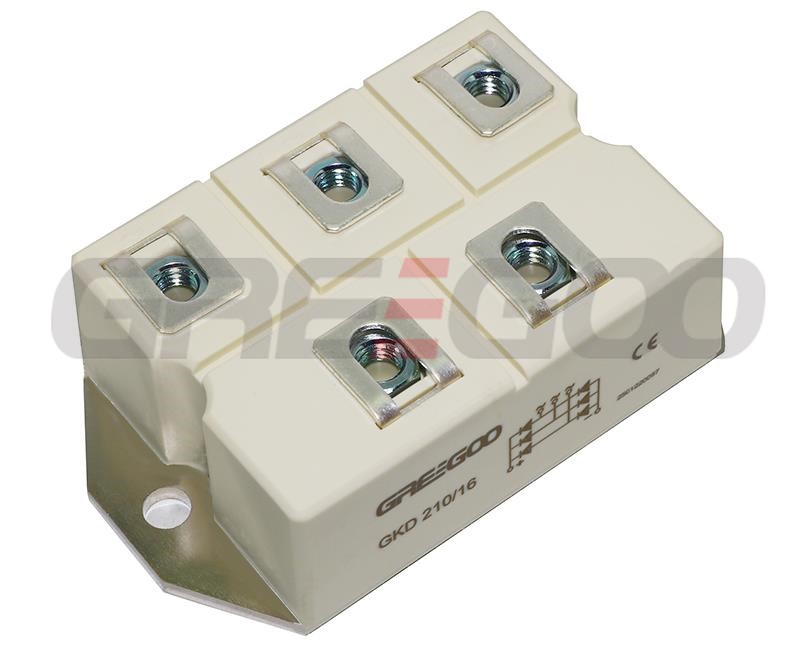

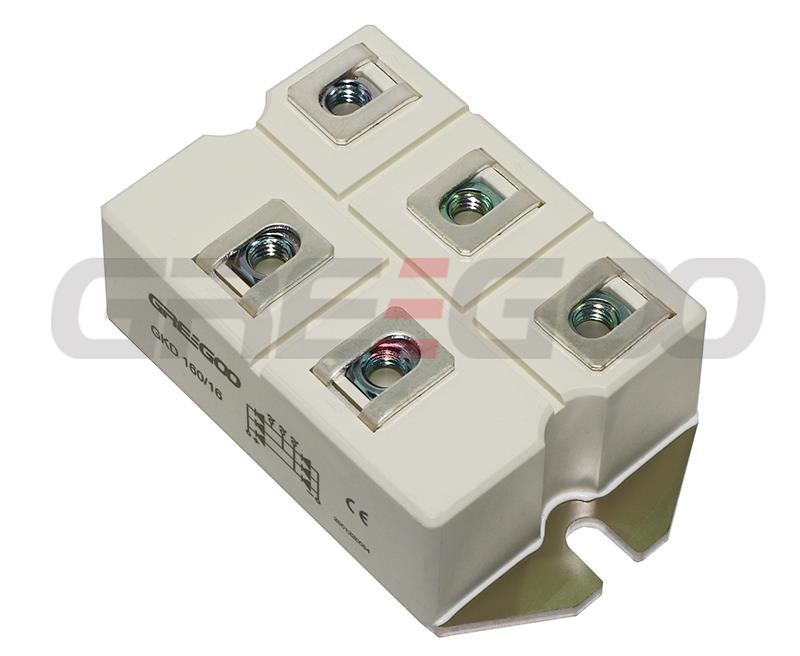

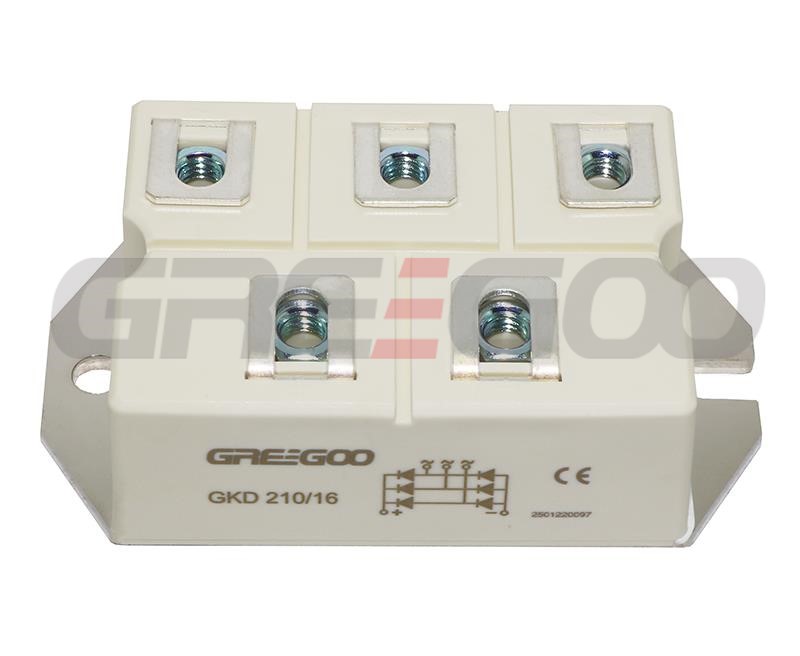

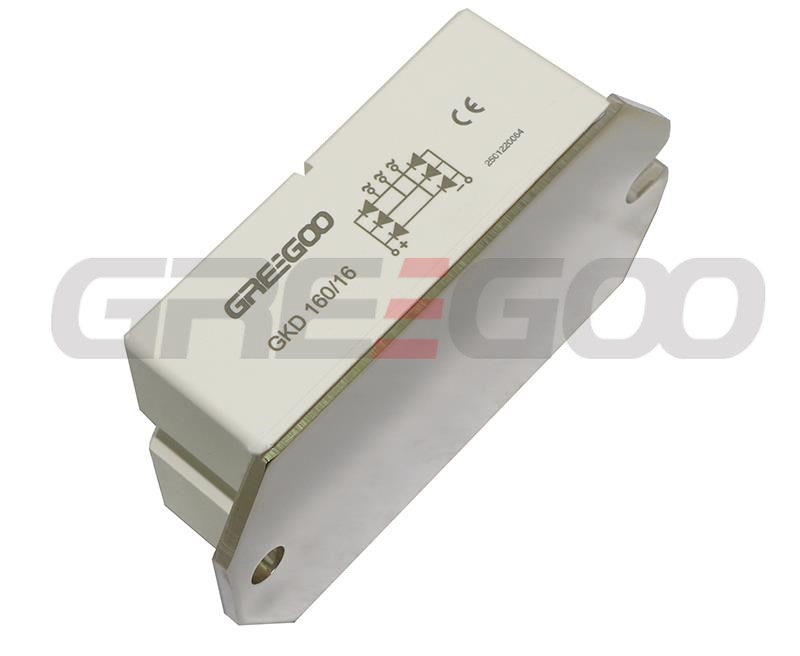

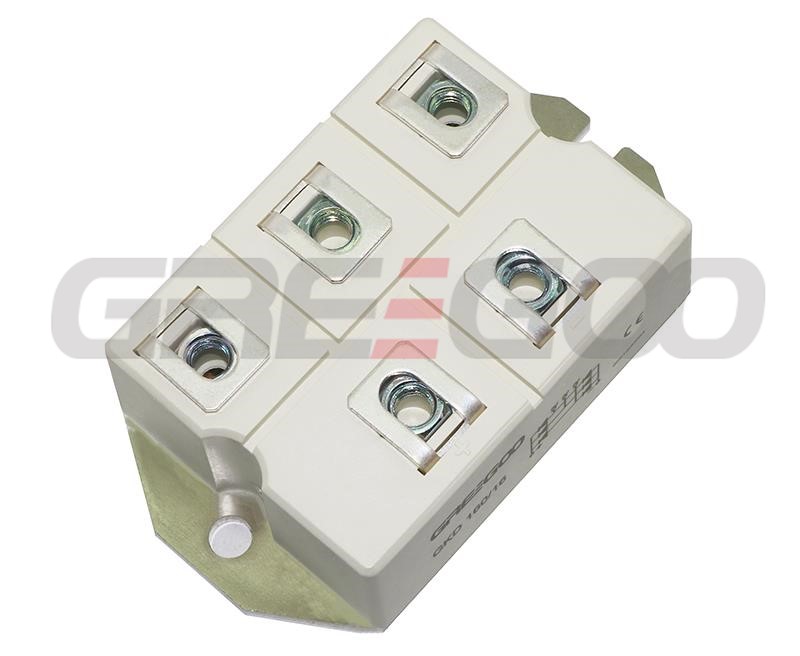

3 phase bridge rectifier modules SKD110 SKD160 SKD210
3 phase bridge rectifier modules

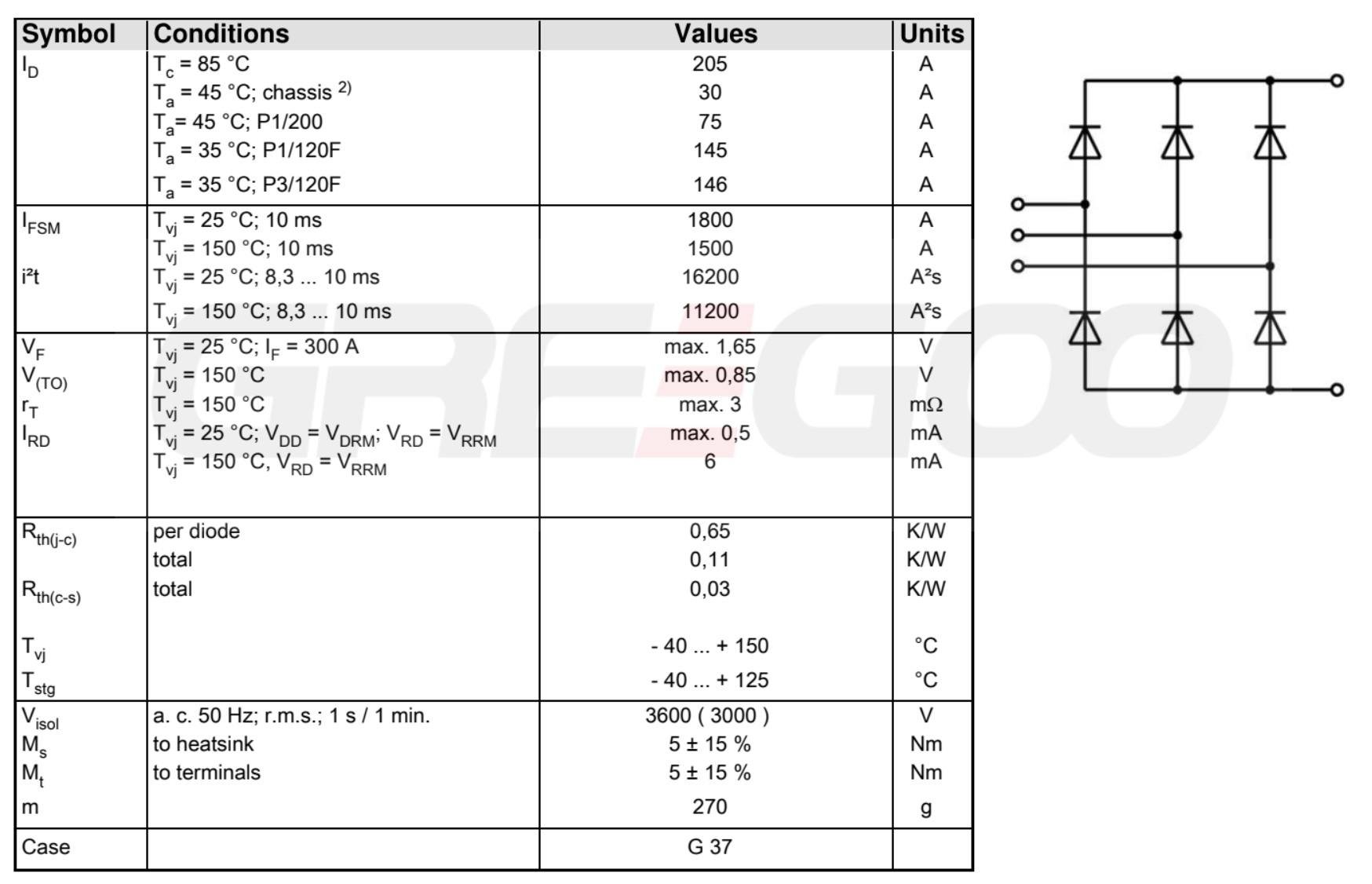

Type | Equal to | VRRM VDRM | ID @ TC | TC | ITSM IFSM@ Tjmax | VT(TO) @ Tjmax | rT @ Tjmax | Rth(j-c)cont. per chip | Tj | Case |
V | A | ℃ | A | V | mΩ | K/W | ℃ | |||

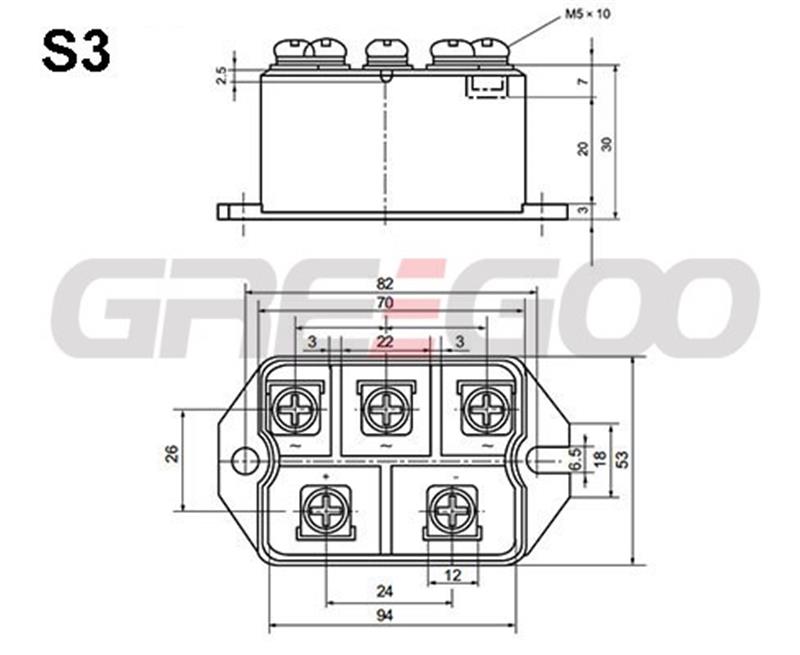

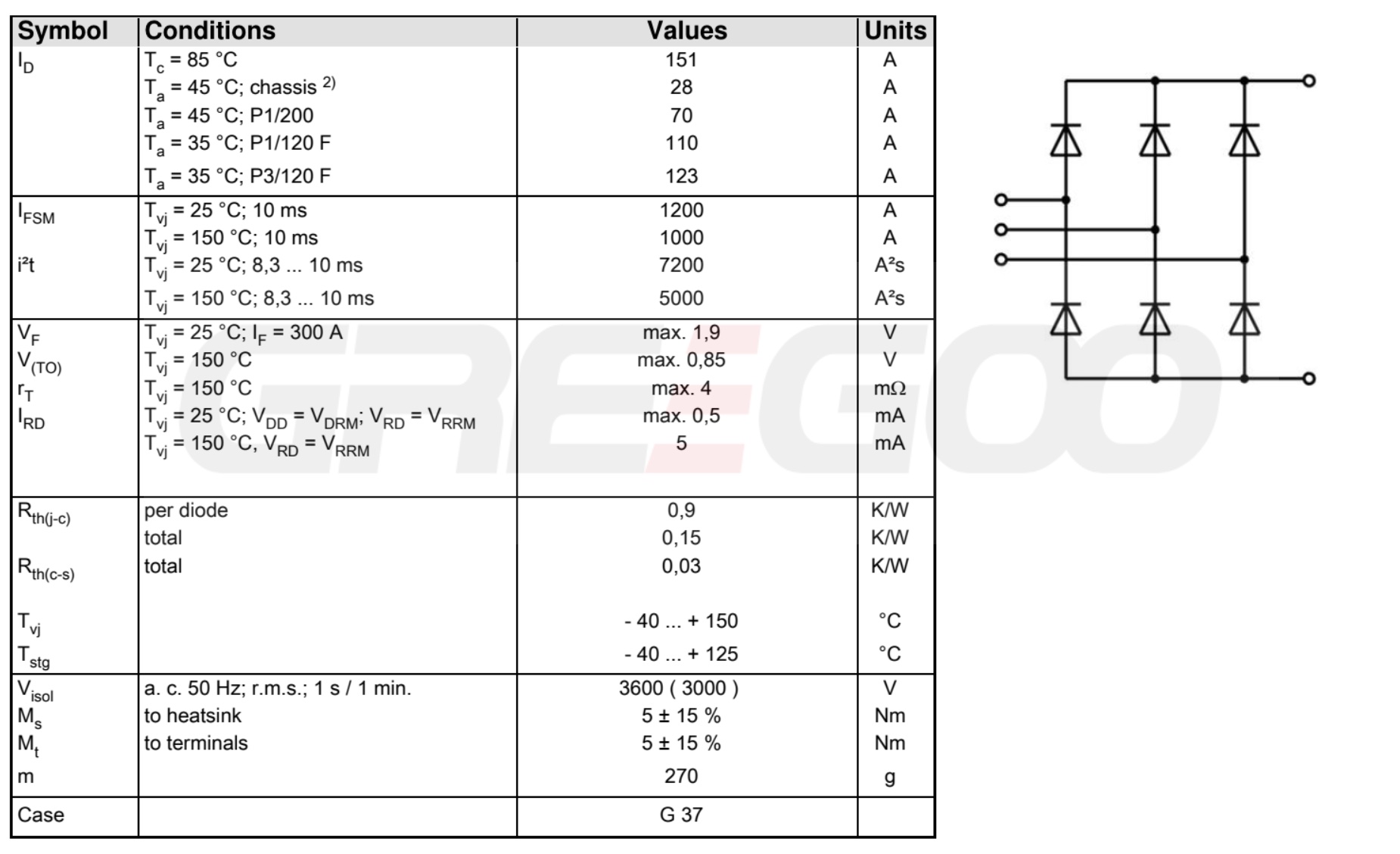

MDS110S | SKD 110 | 800-1800 | 110 | 100 | 1000 | 0.85 | 4 | 0.9 | -40 ... 150 | S3 |

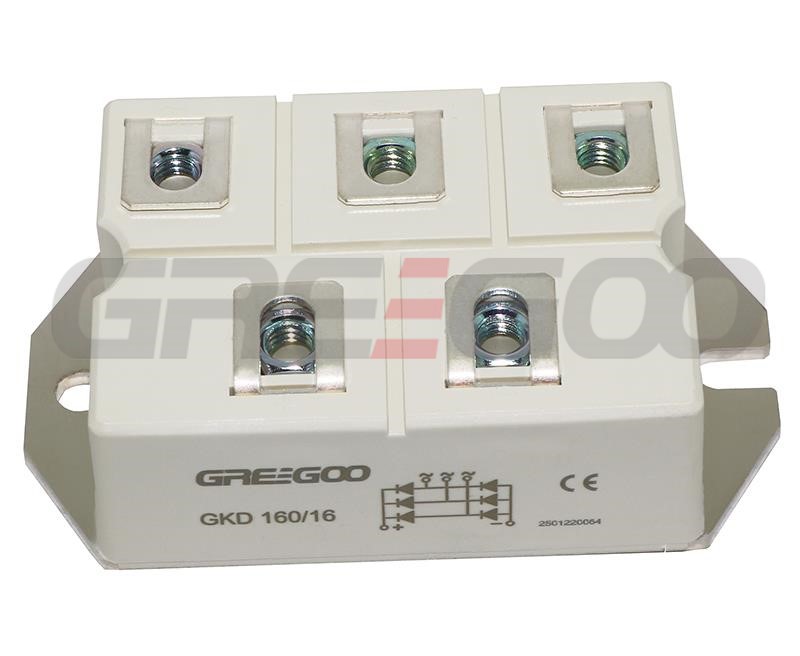

MDS160S | SKD 160 | 800-1800 | 205 | 85 | 1500 | 0.85 | 3 | 0.65 | -40 ... 150 | S3 |

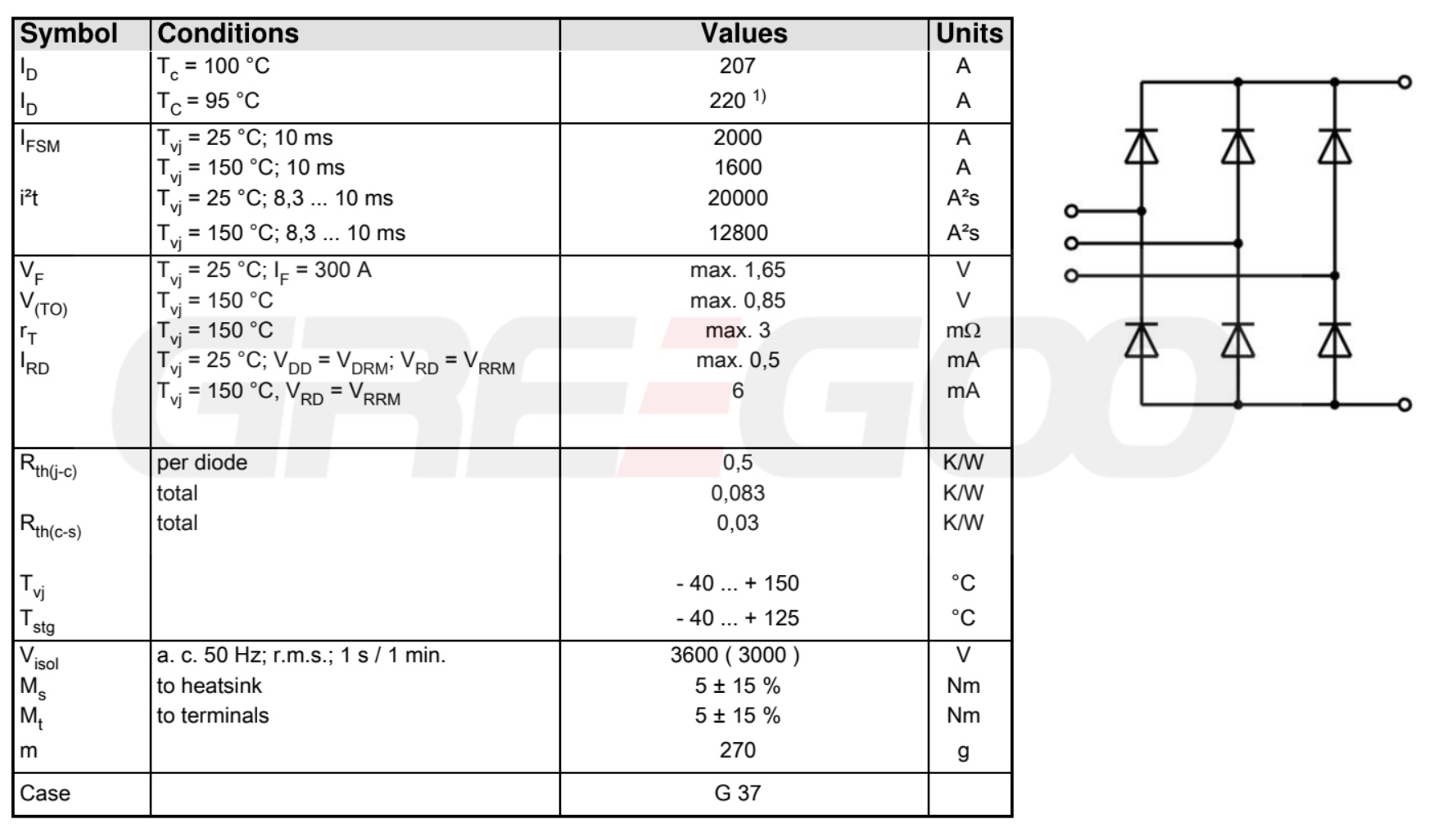

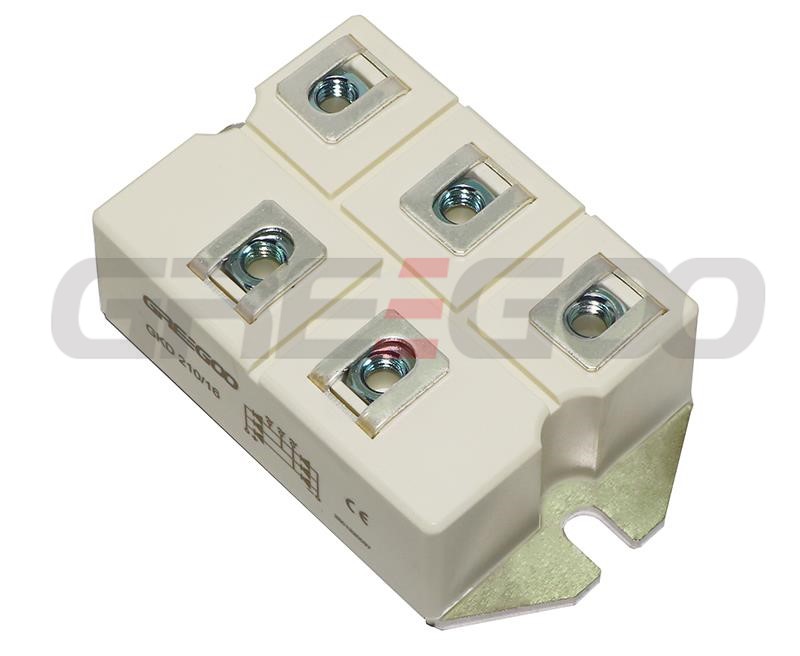

MDS200S | SKD 210 | 900-1800 | 207 | 99 | 1600 | 0.85 | 3 | 0.5 | -40 ... 150 | S3 |
