SKD145 bridge rectifier
Home Products Diode Bridge Module Single and 3 phase Diode Bridge module (SEMKRON series)SKD145 bridge rectifier
Product Details

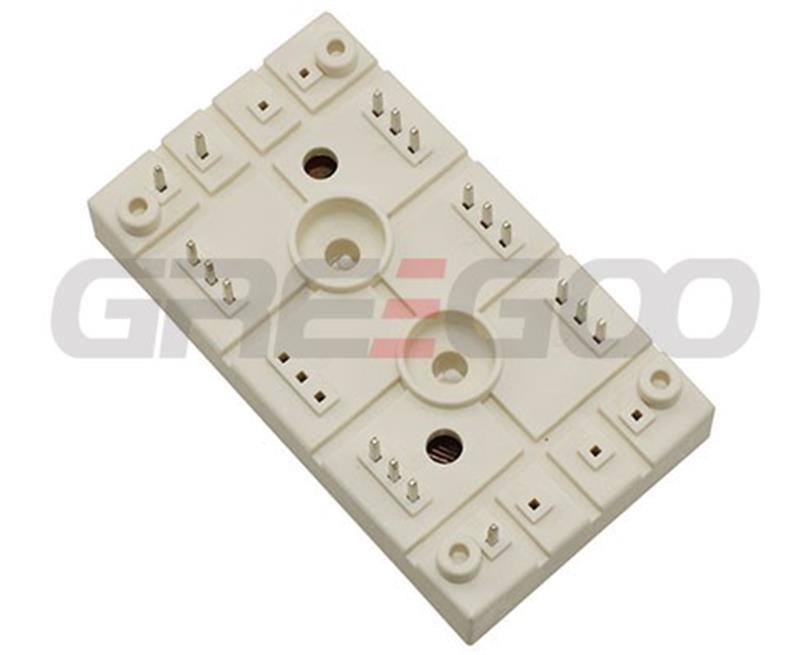

SKD145 bridge rectifier
Features
- Compact design
- Thermal pressure contact, no base plate and no hard mould
- Two screws mounting
- Heat transfer and isolation through direct copper board (low R th)
- Low resistance in steady-state and high reliability
- High surge currents
- Up to 1800 V
Applications
- Three phase rectifiers for power supplies
- Input rectifiers for variable frequency drives
- Rectifiers for DC motor field supplies
- Battery charger rectifiers
