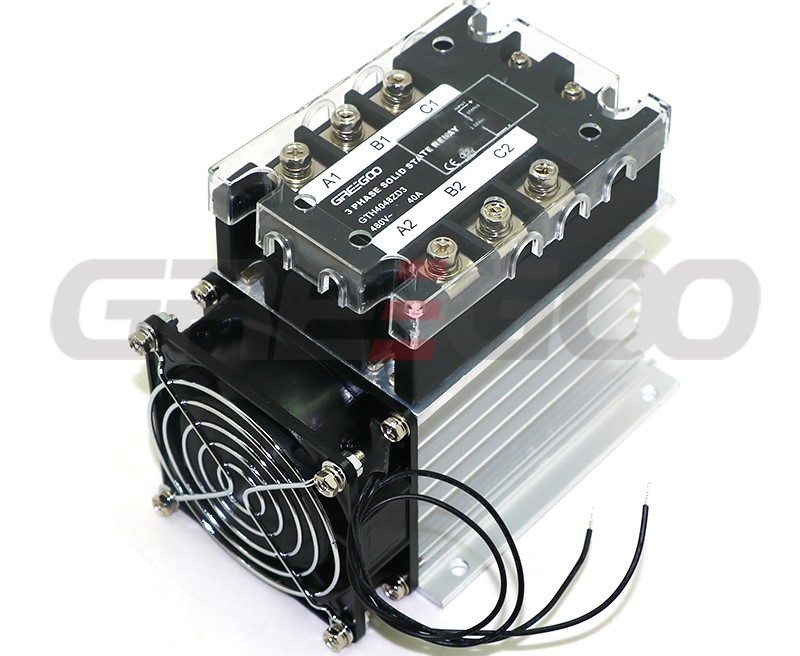

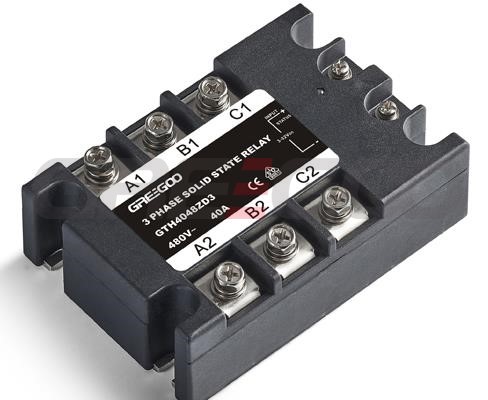

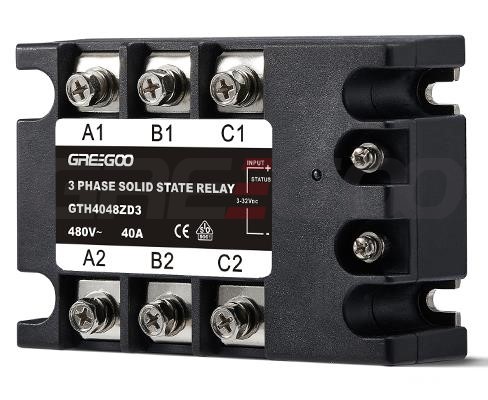

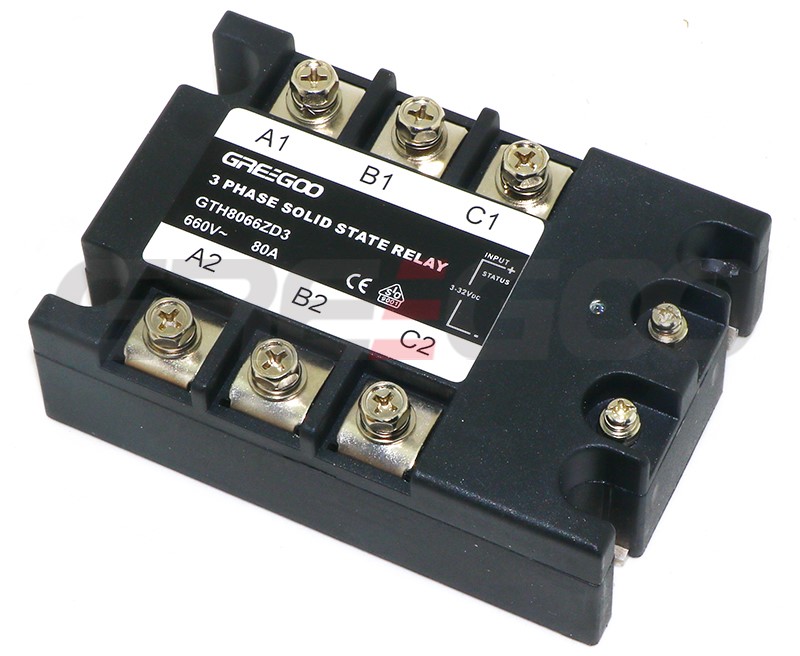

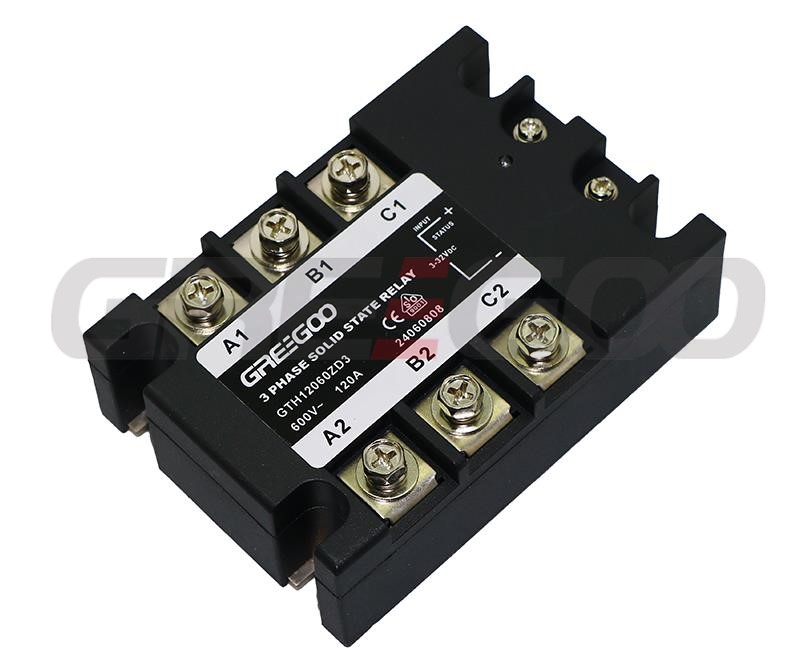

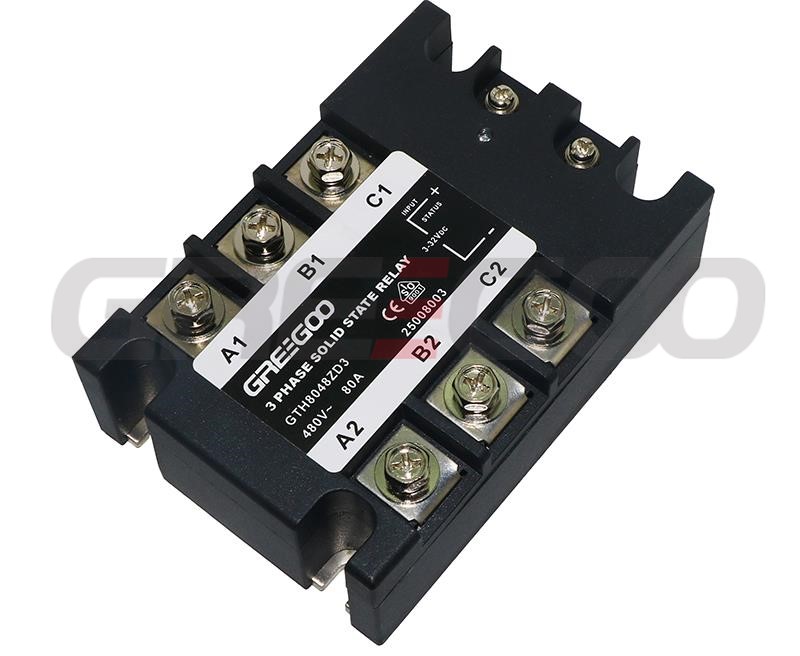

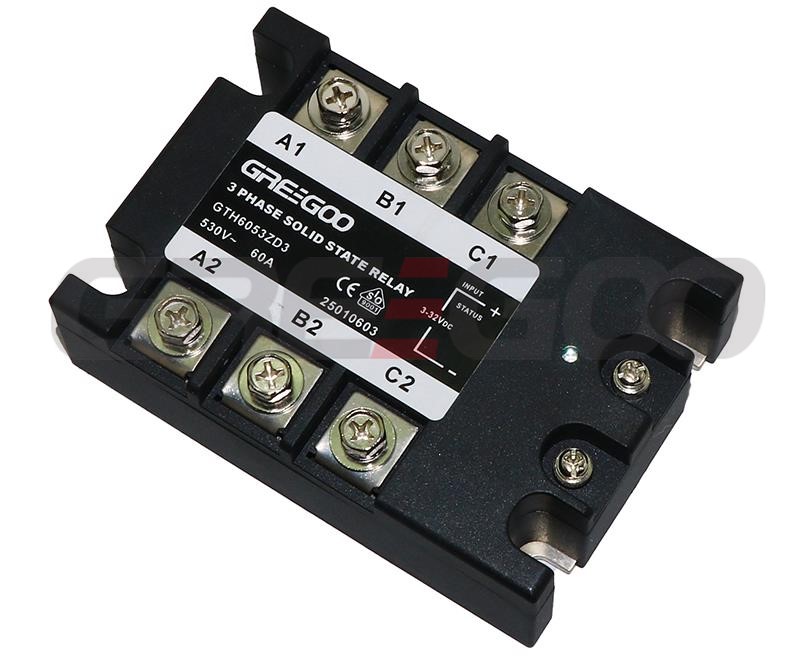

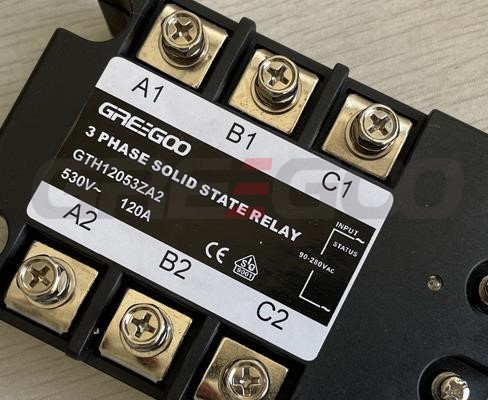

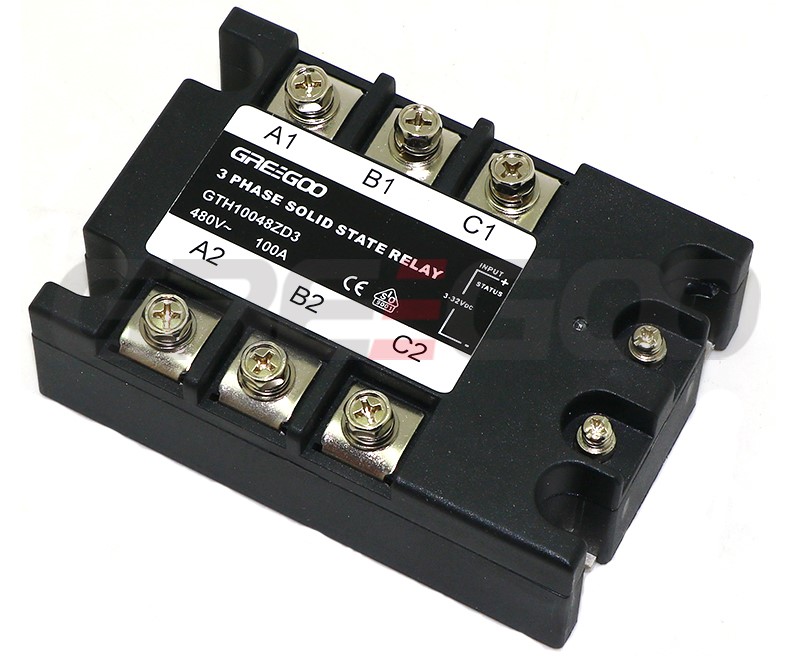

40A-120A 3 phase solid state relays

GTH series three phase Solid State Relays is used three phase loads. SCR Output. GTH series is Dual SCR Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Feature:
- Three phase Solid State Relays
- Rated operational current 3X40, 3X60, 3X80, 3X100 and 3X120 Amps.
- High voltage (1400 Vpk) versions for 530 Vrms service.
- Both “Zero Voltage” & phase controllable “Random Switching” versions.
- Input Voltage Range 4 to 16 Vdc, 4 to 32 Vdc, 90 to 250Vac.
- 2500 Vrms Optical Isolation.(input/output)
- LED-indication for control input.



Symbo Meaning

GT1234

G - Greegoo

T - Three phase

1 - 10-10A, 15-15A, 25-25A, 40-40A

2 - 48-480V

3 - Z-zero control, R-random control

4 - D1-4-16Vdc, D3-4-32Vdc A2-90-250Vac

For example: GT4048ZD3, 3 phase, 40A, 480Vac, 3-32Vdc control



Voltage Control  Operational current
voltage 40 Amp 60 Amp 80 Amp
480 VAC  4~16 Vdc GTH4048ZD1 GTH6048ZD1 GTH8048ZD1
"Zero Voltage" 4~32 Vdc GTH4048ZD3 GTH6048ZD3 GTH8048ZD3
90~250Vac GTH4048ZA2 GTH6048ZA2 GTH8048ZA2
530 VAC  4~16 Vdc GTH4053ZD1 GTH6053ZD1 GTH8053ZD1
"Zero Voltage" 4~32 Vdc GTH4053ZD3 GTH6053ZD3 GTH8053ZD3
90~250Vac GTH4053ZA2 GTH6053ZA2 GTH8053ZA2
480 VAC Random 4~16 Vdc GTH4048RD1 GTH6048RD1 GTH8048RD1
4~32 Vdc GTH4048RD3 GTH6048RD3 GTH8048RD3
90~250Vac GTH4048RA2 GTH6048RA2 GTH8048RA2
530 VAC Random 4~16 Vdc GTH4053RD1 GTH6053RD1 GTH8053RD1
4~32 Vdc GTH4053RD3 GTH6053RD3 GTH8053RD3
90~250Vac GTH4053RA2 GTH6053RA2 GTH8053RA2


Voltage Control  Operational current
voltage 80 Amp 100 Amp 120 Amp
480 VAC  4~16 Vdc GTH8048ZD1 GTH10048ZD1 GTH12048ZD1
"Zero Voltage" 4~32 Vdc GTH8048ZD3 GTH10048ZD3 GTH12048ZD3
90~250Vac GTH8048ZA2 GTH10048ZA2 GTH12048ZA2
530 VAC  4~16 Vdc GTH8053ZD1 GTH10053ZD1 GTH12053ZD1
"Zero Voltage" 4~32 Vdc GTH8053ZD3 GTH10053ZD3 GTH12053ZD3
90~250Vac GTH8053ZA2 GTH10053ZA2 GTH12053ZA2
480 VAC Random 4~16 Vdc GTH8048RD1 GTH10048RD1 GTH12048RD1
4~32 Vdc GTH8048RD3 GTH10048RD3 GTH12048RD3
90~250Vac GTH8048RA2 GTH10048RA2 GTH12048RA2
530 VAC Random 4~16 Vdc GTH8053RD1 GTH10053RD1 GTH12053RD1
4~32 Vdc GTH8053RD3 GTH10053RD3 GTH12053RD3
90~250Vac GTH8053RA2 GTH10053RA2 GTH12053RA2
