GTS34 GTS31 GTS32 Three phase Solid state relay with micro switch or pushbutton control
Home Products Solid State Relays (AC Switching)Three Phase Solid State RelaysGTS34 GTS31 GTS32 Three phase Solid state relay with micro switch or pushbutton control

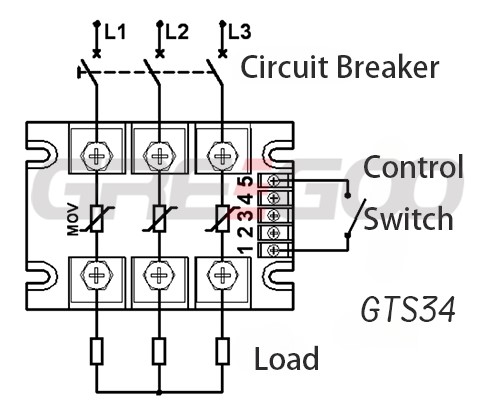

GTS34 micro switch and buttons control
GTS34 GTS31 GTS32 Three phase Solid state relay with micro switch or pushbutton control
Parameter Name | GTS34 |
Control method | Control terminals are connected to micro switch or buttons respectively |
Specification selection | ≥ 0.1A/500 VAC. |
Status | LED |
Switching Time | ≤10 mS |
Load Voltage | 440VAC, 660VAC |
Maximum Load Current | 10, 20, 30, 40, 50, 60, 80, 90, 100, 120, 150, 180, 200, 300, 400, 500A |
On-state Voltage Drop | 10A to 60A ≤1.5 V; 80A to 500A ≤1.8 V |
Off-state Voltage | ≥800V, ≥1500V |
Isolation Voltage | ≥1800 V |
Insulation Voltage | ≥2500 V |
Insulation Resistance | ≥100 MΩ |
Operating Temperature | -25~75℃ |
Power Frequency | 50/60 HZ |
Cooling Conditions | ≥20A with heat sink, ≥30A with fan for enhanced cooling |
Load Current Safety Factor | Resistive load 2-3 times, inductive load 3-4 times |
Product Details

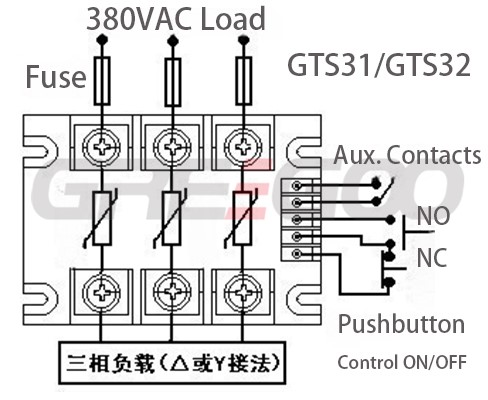

Parameter Name | GTS31 | GTS32 (with 1NO or 1NC auxi contact) |
---|---|---|
Control Voltage | Control terminals are connected to NO and NC buttons respectively | |
Control Current | The button or switch ≥ 0.1A/500 VAC. | |
Status | LED | |
Switching Time | ≤10 mS | |
Load Voltage | 440VAC, 660VAC | |
Maximum Load Current | 10, 20, 30, 40, 50, 60, 80, 90, 100, 120, 150, 180, 200, 300, 400, 500A | |
On-state Voltage Drop | 10A to 60A ≤1.5 V, 80A to 500A ≤1.8 V | |
Auxiliary contact | None | 1NC or 1NO, 1A 500V |
Off-state Voltage | ≥800V, ≥1500V | |
Isolation Voltage | ≥2500 V | |
Insulation Voltage | ≥2500 V | |
Insulation Resistance | ≥100 MΩ | |
Operating Temperature | -25~75℃ | |
Power Frequency | 50/60 HZ | |
Cooling Conditions | ≥20A with heat sink, ≥30A with fan for enhanced cooling | |
Load Current Safety Factor | Resistive load 2-3 times, inductive load 3-4 times. |
