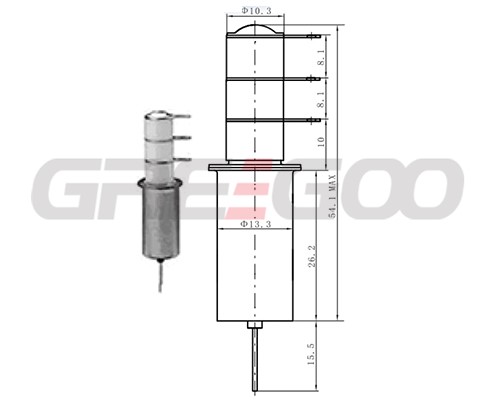

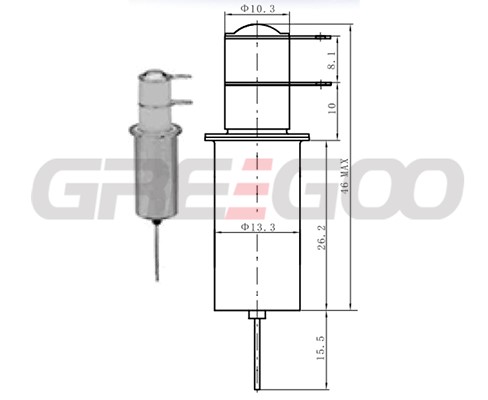

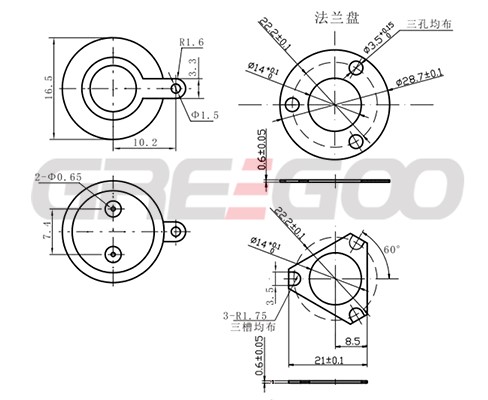

5KV HV Relay GHR-41A/B/C

Product Specification

Units

GHR41A

GHR41B

GHR41C

Contact Form

A

B

C

Contact Arrangement

SPST-NO

SPST-NC

SPDT

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

6

6

6

DC or 60Hz

KV Peak

5

5

5

2.5MHz

KV Peak

4.5

4.5

4.5

16MHz

KV Peak

3.5

3.5

3.5

32MHz

KV Peak

2.8

2.8

2.8

Continuous Current, Carry Max

DC or 60Hz

Amps

30

30

30

2.5MHz

Amps

24

24

24

16MHz

Amps

16

16

16

32MHz

Amps

12

12

12

Coil Hi -Pot (V RMS, 60 Hz)

V

500

500

500

Capacitance

Across Open Contacts

pF

1.2

1.2

1.2

Contacts to Ground

pF

1.2

1.2

1.2

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.02

0.02

0.02

Operate Time, Max

ms

10

10

10

Release Time, Max

ms

10

10

10

Operating Temperature Ambient

°C

-55~+125

-55~+125

-55~+125

Shock, 1/2 Sine11ms (Peak)

G’s

50

50

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

10

10

Mechanical Life

Cycles

2 million

2 million

2 million

Weight

g

28

28

28
