EVC8 12KV 250A 400A and 630A Vacuum Contactor
Home Products Vacuum Contactor7.2/12kV Medium Voltage Vacuum ContactorsEVC8 12KV 250A 400A and 630A Vacuum Contactor
Product Details

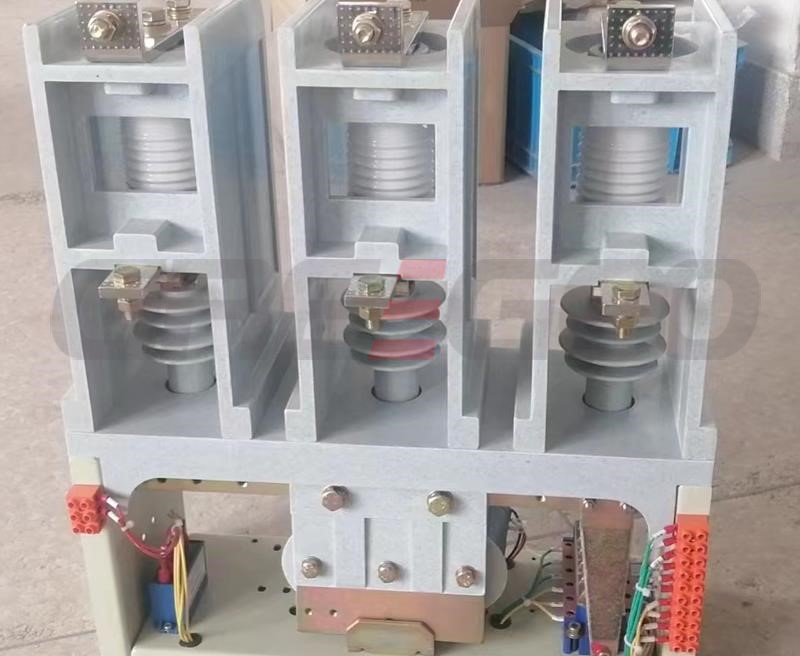

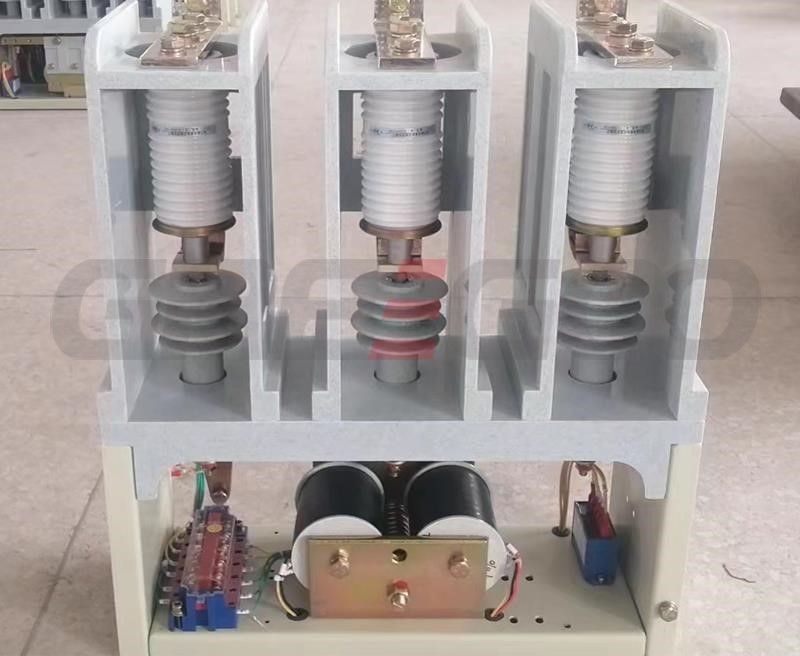

EVC8 12KV 250A 400A and 630A Vacuum Contactor
MODEL | EVC8-250A/12KV | EVC8-400A/12KV | EVC8-630A/12KV |
Main circuit rated voltage (kV) | 12 | 12 | 12 |
Main circuit rated current (A) | 250 | 400 | 630 |
Main circuit current making ability (A/100Otimes) | 2500 | 4000 | 6300 |
Main circuit break-make ability (A/25Otimes) | 2000 | 3200 | 5000 |
Maximum break ability (A/3Otimes) | 3200 | 4000 | 6300 |
Mechanical life (times) | 1,000,000 | 1,000,000 | 1,000,000 |
Engineering lock life (times) | 100,000 | 100,000 | 100,000 |
Power-frequency withstand voltage for main circuit (kV) | 42 | 42 | 42 |
Power-frequency withstand voltage for auxiliary circuit (kV) | 2.5 | 2.5 | 2.5 |
Power-frequency withstand voltage for control circuit (kV) | 2 | 2 | 2 |
Rated operate frequency (times/h) | 300 | 300 | 300 |
Engineering lock operate frequency (times/h) | 30 | 30 | 30 |
Clearance between open contacts (mm) | 5±0.5 | 5±0.5 | 5±0.5 |
Over travel (mm) | ≥1.2 | ≥1.2 | ≥1.2 |
