LMZT-10
Home Products MV CT & PTThrough Core Current TransformerLMZT-10
Overview

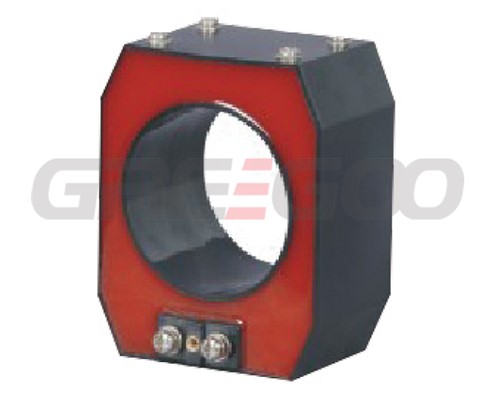

LMZT-10
Rated frequency：50Hz or 60Hz
Rated secondary current：5A or 1A
Rated short-time thermal current：40kA,2s
Rated continuous thermal current：1200%In
Load power factor：COC ＜ P=0.8（lag）
Safety factor（test set）：FS ＜ 10
Accuracy limit system（protection）：10P10,10P15,10P20
Product Details
| Model | Application | Measuring CT | Protection CTProtection CT | Double winding CT | |||||||
|
Rated primary
current
|
Accuracy & rated capacity VA | Accuracy & rated capacity VA | Accuracy & rated capacity VA | ||||||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | 0.2S | 0.5 | 10P15 | 10P10 | ||
| LMZT-10 | 75 | / | / | 1 | / | / | / | / | 1 | / | / |
| 100 | / | / | 2.5 | / | / | / | / | 1 | / | / | |
| 150 | / | / | 2.5 | 2.5 | / | / | / | 1.5 | / | / | |
| 200 | / | 2.5 | 2.5 | 5 | / | / | / | 2.5 | / | 5 | |
| 300 | 2.5 | 2.5 | 5 | 5 | / | / | / | 2.5 | / | 5 | |
| 400 | 5 | 5 | 5 | 7.5 | / | / | / | 5 | / | 7.5 | |
| 500 | 5 | 5 | 10 | 10 | / | / | / | 5 | / | 10 | |
| 600 | 5 | 10 | 10 | 10 | / | / | / | 5 | / | 10 | |
| 800 | 10 | 10 | 10 | 10 | / | / | / | 5 | / | 10 | |
