A50-500V/100A~1200A Semiconductor Fuse
Usage and range
A50(T50) Series stud-connection fuse is applicable for AC 50Hz or 60Hz, rated voltage 500V, rated current 1200A and the below industrial electrical device, which for over-load and short-circuit protection.
Specification
| Model | Rated voltage (V) | Rated current (A) | Rated breaking capacity | Rated consumption power (W) | Rated frequency |

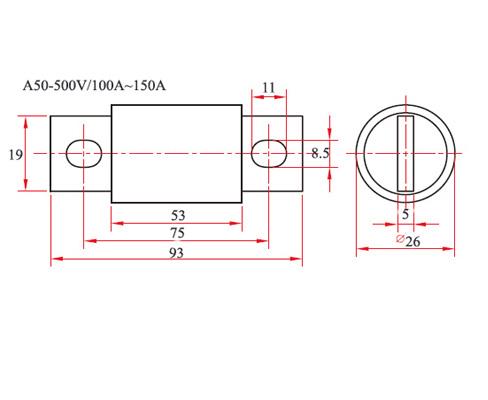

| A50-500V/100A | AC 500V | 100, 150 | 80 KA | ≤9.7 | 50Hz or 60Hz |
| A50-500V/150A | |||||

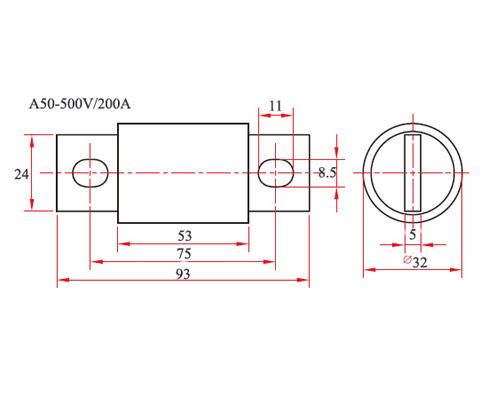

| A50-500V/200A | 200 | ≤12 | |||

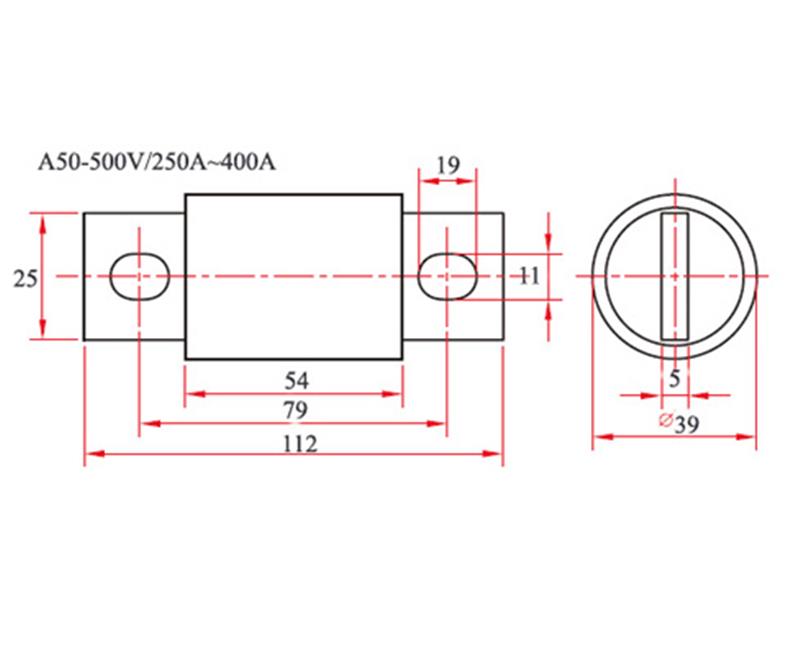

| A50-500V/250A | 250, 300, 350, 400 | ≤36 | |||
| A50-500V/300A | |||||
| A50-500V/350A | |||||
| A50-500V/400A | |||||

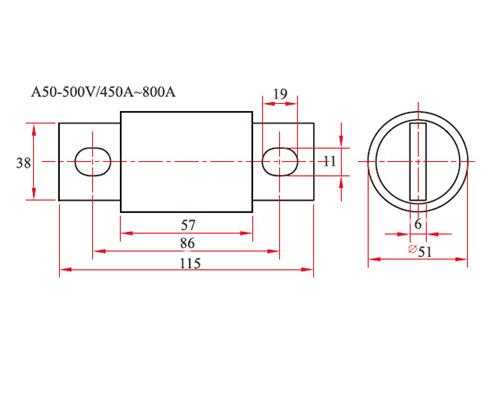

| A50-500V/450A | 450, 500, 600, 700, 800 | ≤65 | |||
| A50-500V/500A | |||||
| A50-500V/600A | |||||
| A50-500V/700A | |||||
| A50-500V/800A | |||||

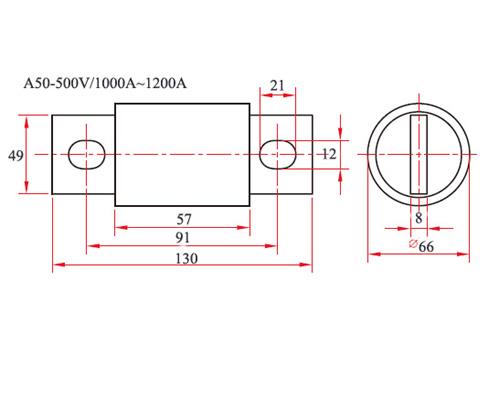

| A50-500V/1000A | 1000, 1200 | ≤90 | |||
| A50-500V/1200A |
