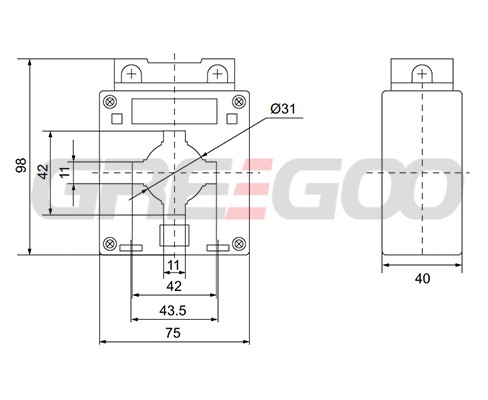

BH-40 0.66KV Current Transformer
| Model | Ratio A | Burden VA | Cross core turn number | ||||
| Class 1 | Class 0.5 | Class 0.5s | Class 0.2 | Class 0.2s | |||
| BH-40 | 30/5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 50/5 | 5 | 5 | 5 | 5 | 5 | 3 | |
| 75/5 | 5 | 5 | 5 | 5 | 5 | 2 | |
| 100/5 | 2.5 | 2.5 | 1 | ||||
| 100/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 150/5 | 5 | 5 | 5 | 5 | 5 | 2 | |
| 200/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 250/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 300/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 400/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 500/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 600/5 | 5 | 5 | 5 | 5 | 5 | 1 | |
| 700/5 | 10 | 10 | 10 | 10 | 10 | 1 | |
| 800/5 | 10 | 10 | 10 | 10 | 10 | 1 | |
