BYX-JZ SPD
Home Products Surge Protection DeviceSignal SPD (T3 SPD)BYX-JZ SPD
Product Details

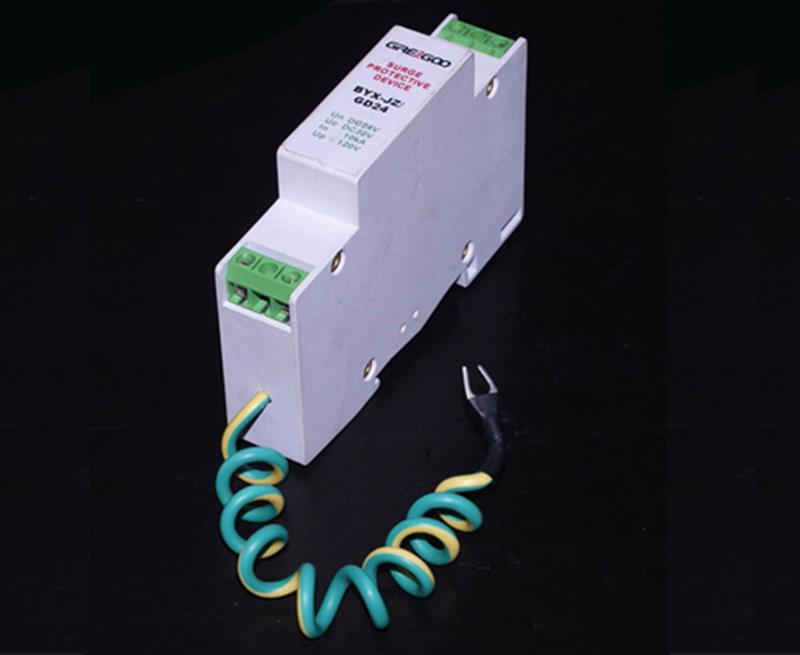

BYX-JZ SPD
Model | Unit | BYX-JZ/GC5 | BYX-JZ/GC12 | BYX-JZ/GC24 | BYX-JZ/GC48 | BYX-JZ/GC110 |
Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
Voltage protection level (Up) | V | 120 | 120 | 120 | 200 | 500 |
Frequency range | MHz | 2 | 2 | 2 | 2 | 2 |
Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Protection pins | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 | |
Reponse time | ns | 10 | 10 | 10 | 10 | 10 |

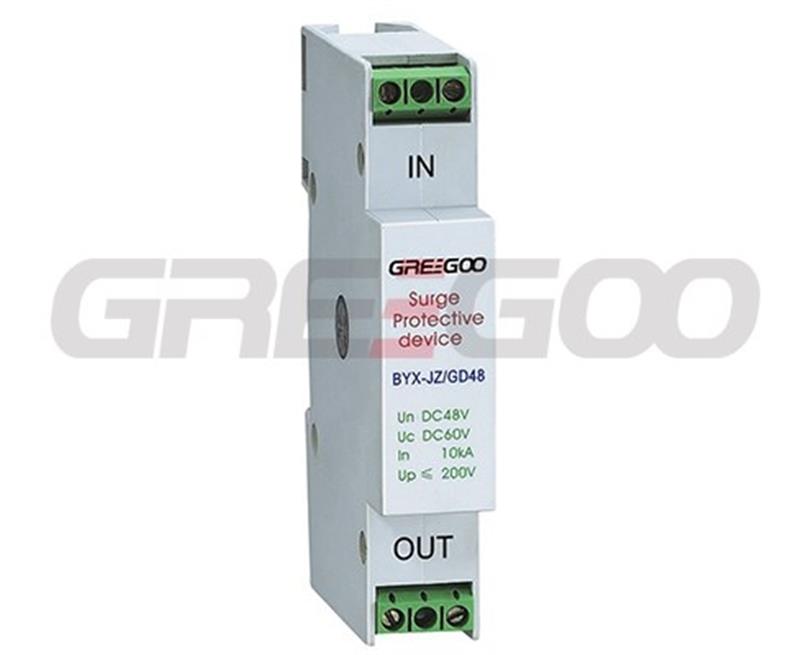

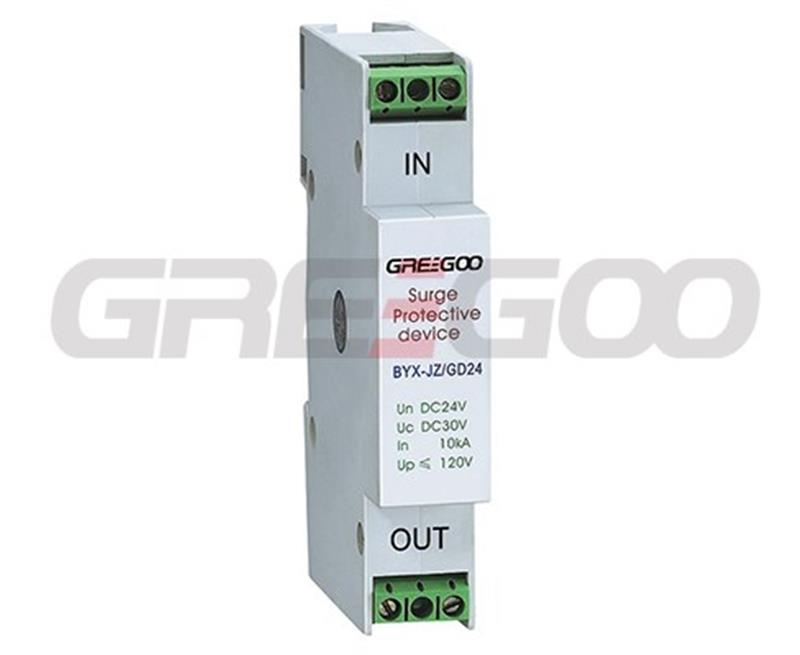

Model | Unit | BYX-JZ/GD5 | BYX-JZ/GD12 | BYX-JZ/GD24 | BYX-JZ/GD48 | BYX-JZ/GD110 |
Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
Voltage protection level (Up) | V | 120 | 120 | 120 | 200 | 500 |
Frequency range | MHz | 10 | 10 | 10 | 10 | 10 |
Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Protection pins | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 | |
Reponse time | ns | 10 | 10 | 10 | 10 | 10 |
Model | Unit | BYX-JZ/GF5 | BYX-JZ/GF12 | BYX-JZ/GF24 | BYX-JZ/GF48 | BYX-JZ/GF110 |
Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
Nominal discharge current (8/20us) In | kA | 10 | 10 | 10 | 10 | 10 |
Voltage protection level (Up) | V | 120 | 120 | 120 | 200 | 500 |
Frequency range | MHz | 100 | 100 | 100 | 100 | 100 |
Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Protection pins | 1,2 | 1,2 | 1,2 | 1,2 | 1,2 | |
Reponse time | ns | 10 | 10 | 10 | 10 | 10 |
