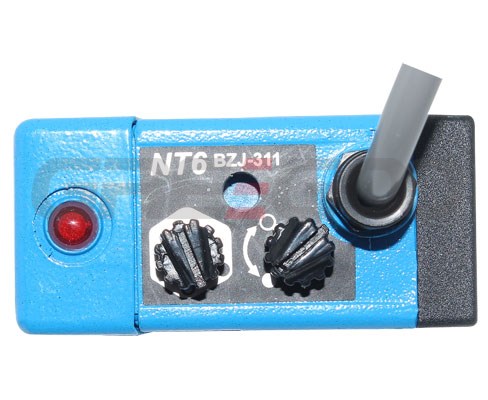

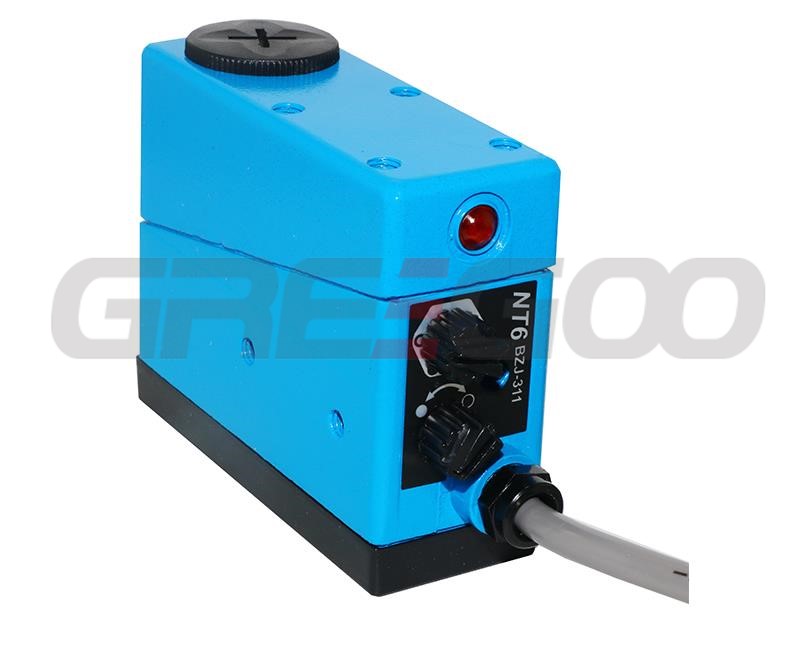

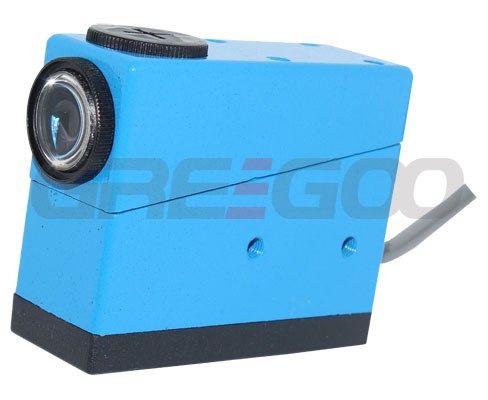

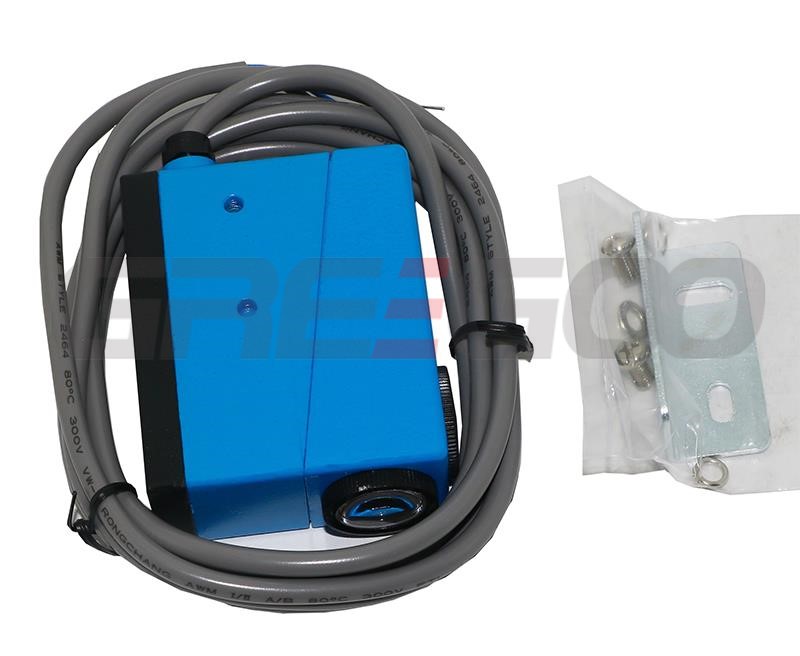

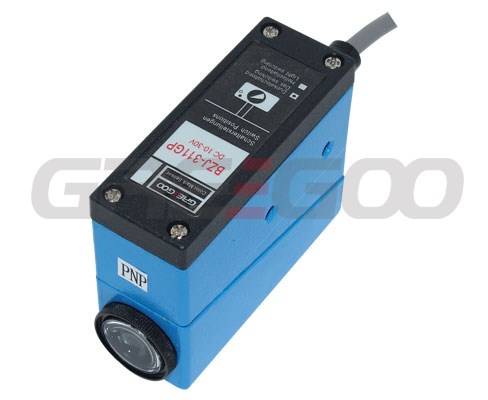

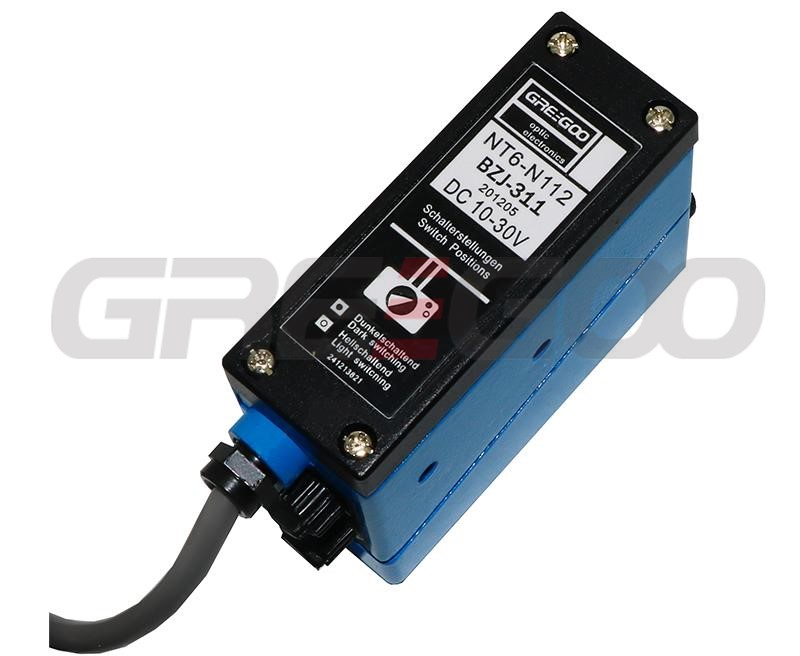

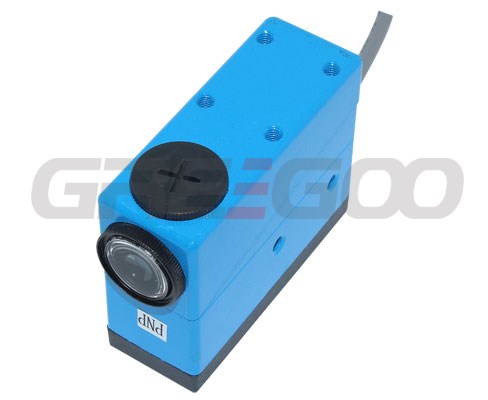

BZJ-311 Color Mark Sensor

BZJ-311 Color mark sensor
Chromatogram of light R: Red,G: Green, B: Blue, W: White
Logic classification P: PNP, N: NPN,A: Analog Output

Model BZJ-311RP BZJ-311RN BZJ-311RA
BZJ-311GP BZJ-311GN BZJ-311GA
BZJ-311BP BZJ-311BN BZJ-311BA
BZJ-311WP BZJ-311WN BZJ-311WA
Size 38*62*100mm
Supply voltage 10-30VDC
Ambient temperature 0-50°C
Detecting method Coaxial reflection
Sensing distance 9mm
Chromatogram of light Red, Green, Blue, White
Facula Circular
Response time 50us
Output current ＜200mA
Output type PNP NPN Analog
Shell material Metal
Cable length 2m
Protection RP-power protection, load short-circuit protection
Weight 0.5kg
