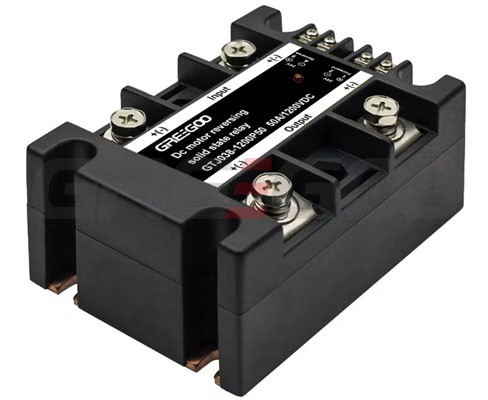

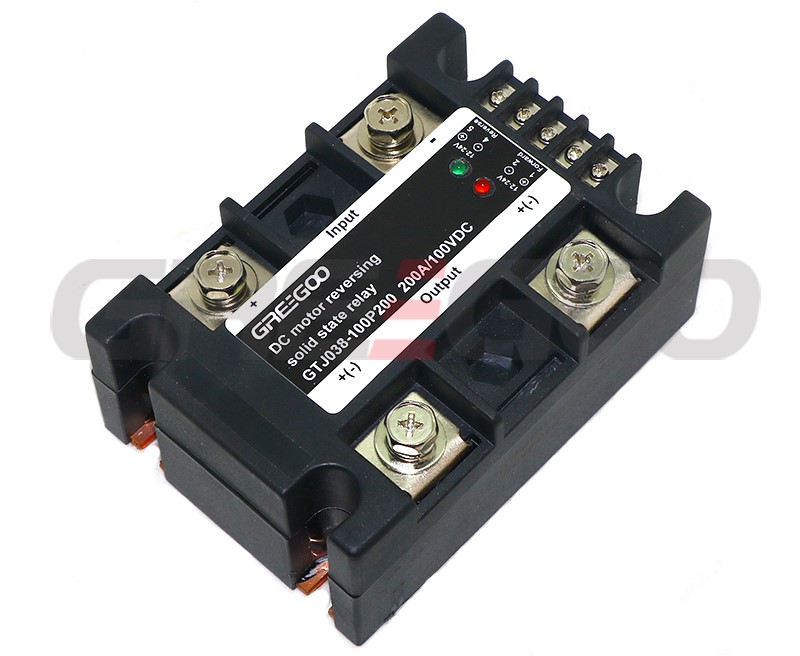

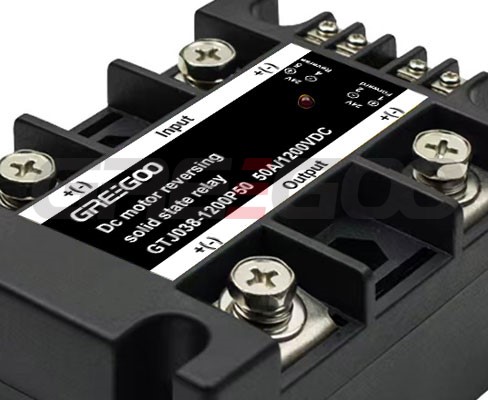

DC Reversing Solid State Contactor 10A-500A 100V-1200V

  • Transformer isolation between input and output circuits.
  • Light-emitting diode indicates forward and reverse status.

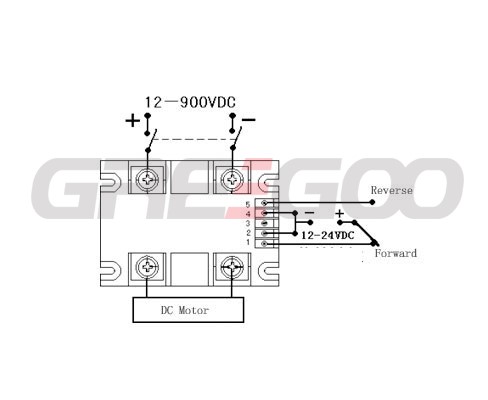

  • Changing the control power terminal allows easy switching of load voltage polarity.
  • Internal control functions such as interlock and time delay are provided for safe and reliable switching.
  • Because the switching switch is a SCR, it is fast, noiseless and spark-free when switching.
  • The product is mainly used for frequent switching of singlephase DC motor forward and reverse rotation, switching of semiconductor refrigeration and heating, and other DC load power polarity conversion.

Model Output voltage Operating current Control voltage Casing
GTJ038-100P10 100VDC 10A 12-24VDC J-3
GTJ038-100P20 100VDC 20A 12-24VDC J-3
GTJ038-100P30 100VDC 30A 12-24VDC J-3
GTJ038-100P40 100VDC 40A 12-24VDC J-3
GTJ038-100P50 100VDC 50A 12-24VDC J-3
GTJ038-100P60 100VDC 60A 12-24VDC J-3
GTJ038-100P80 100VDC 80A 12-24VDC J-3
GTJ038-100P100 100VDC 100A 12-24VDC J-3
GTJ038-100P120 100VDC 120A 12-24VDC J-3
GTJ038-100P150 100VDC 150A 12-24VDC J-3
GTJ038-100P180 100VDC 180A 12-24VDC J-3

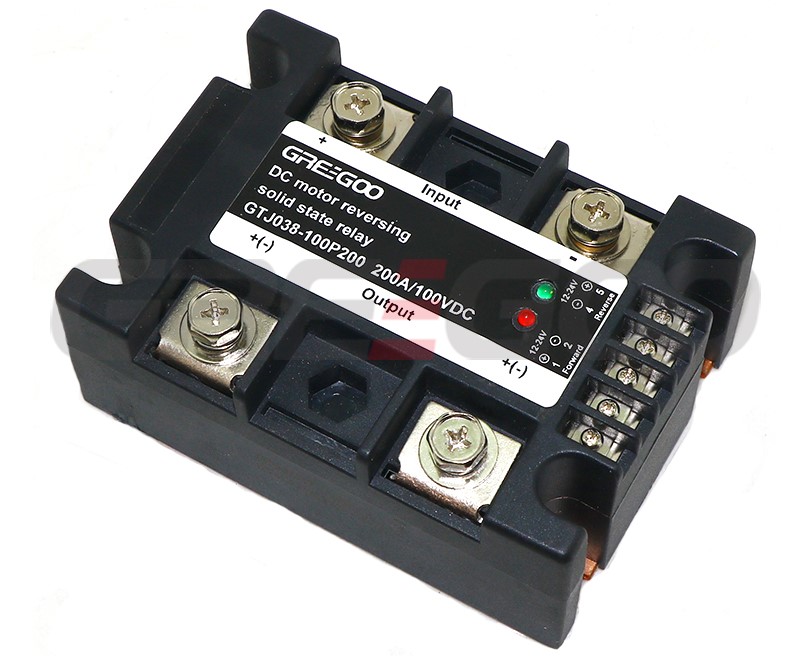

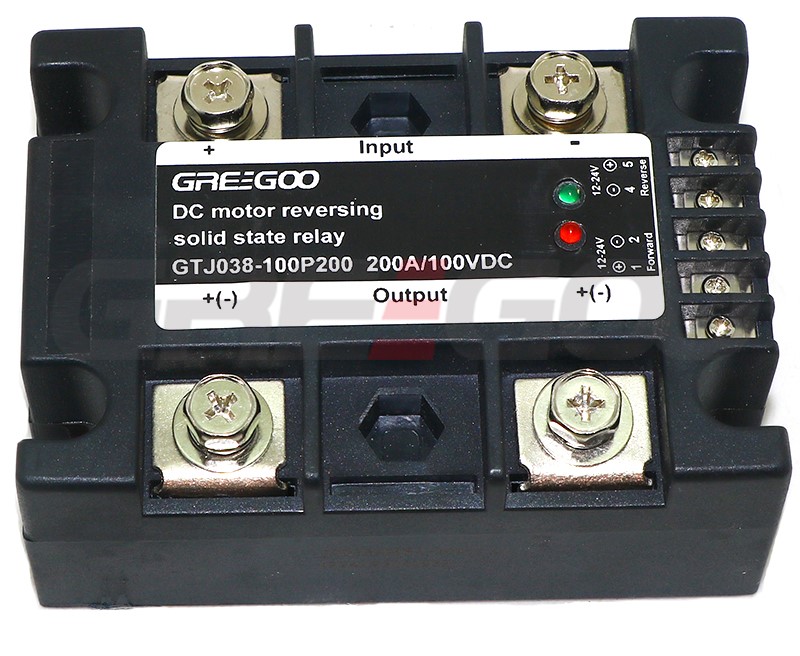

GTJ038-100P200 100VDC 200A 12-24VDC J-3
GTJ038-100P300 100VDC 300A 12-24VDC J-3
GTJ038-100P400 100VDC 400A 12-24VDC J-5
GTJ038-200P10 200VDC 10A 12-24VDC J-3
GTJ038-200P20 200VDC 20A 12-24VDC J-3
GTJ038-200P30 200VDC 30A 12-24VDC J-3
GTJ038-200P40 200VDC 40A 12-24VDC J-3
GTJ038-200P50 200VDC 50A 12-24VDC J-3
GTJ038-200P60 200VDC 60A 12-24VDC J-3
GTJ038-200P80 200VDC 80A 12-24VDC J-3
GTJ038-200P100 200VDC 100A 12-24VDC J-3
GTJ038-200P120 200VDC 120A 12-24VDC J-3
GTJ038-200P150 200VDC 150A 12-24VDC J-3
GTJ038-600P10 600VDC 10A 12-24VDC J-3
GTJ038-600P20 600VDC 20A 12-24VDC J-3
GTJ038-600P30 600VDC 30A 12-24VDC J-3
GTJ038-600P40 600VDC 40A 12-24VDC J-3
GTJ038-600P50 600VDC 50A 12-24VDC J-3
GTJ038-600P60 600VDC 60A 12-24VDC J-3
GTJ038-600P80 600VDC 80A 12-24VDC J-3
GTJ038-600P100 600VDC 100A 12-24VDC J-3
GTJ038-600P120 600VDC 120A 12-24VDC J-3
GTJ038-600P150 600VDC 150A 12-24VDC J-3
GTJ038-600P180 600VDC 180A 12-24VDC J-3

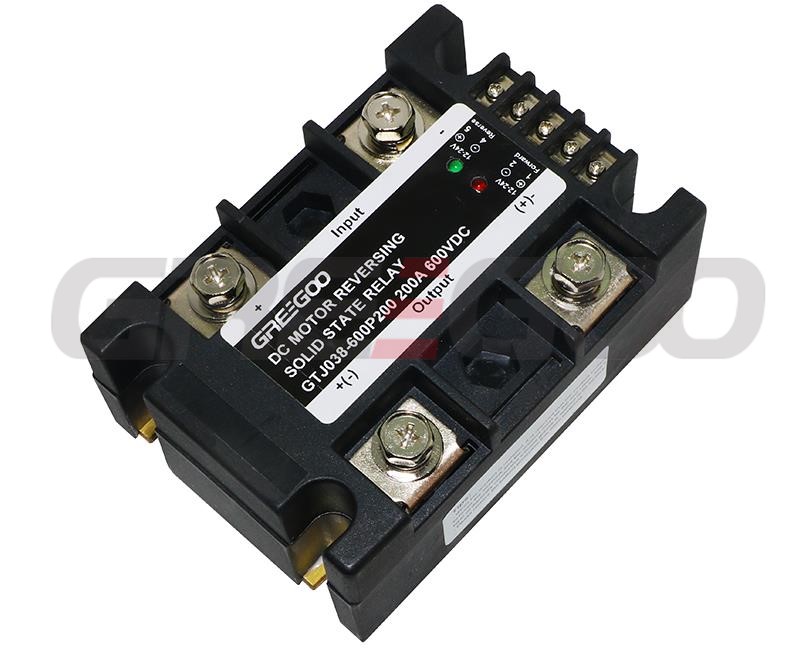

GTJ038-600P200 600VDC 200A 12-24VDC J-3
GTJ038-600P300 600VDC 300A 12-24VDC J-5
GTJ038-600P400 600VDC 400A 12-24VDC J-5
GTJ038-1200P10 1200VDC 10A 12-24VDC J-3
GTJ038-1200P20 1200VDC 20A 12-24VDC J-3
GTJ038-1200P30 1200VDC 30A 12-24VDC J-3
GTJ038-1200P40 1200VDC 40A 12-24VDC J-3
GTJ038-1200P50 1200VDC 50A 12-24VDC J-3

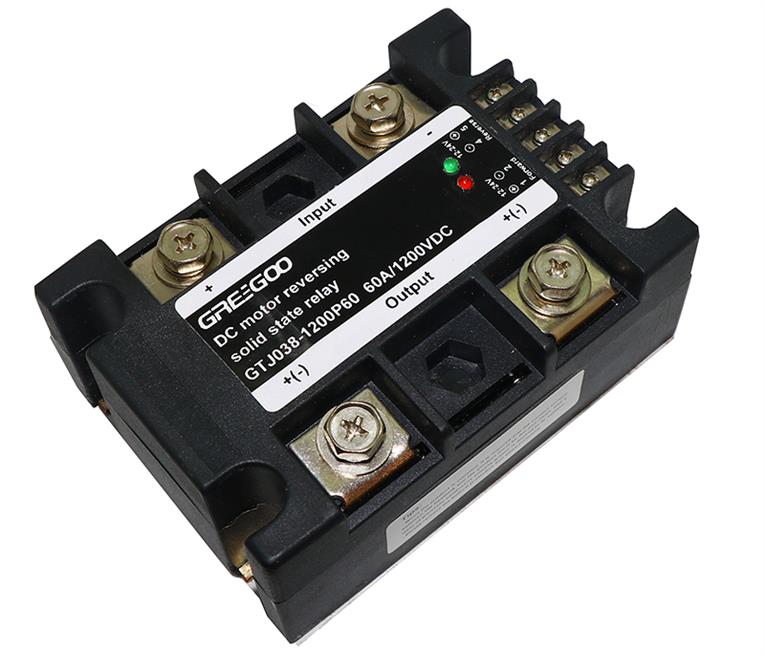

GTJ038-1200P60 1200VDC 60A 12-24VDC J-3
GTJ038-1200P80 1200VDC 80A 12-24VDC J-3
GTJ038-1200P100 1200VDC 100A 12-24VDC J-5
GTJ038-1200P120 1200VDC 120A 12-24VDC J-5
GTJ038-1200P150 1200VDC 150A 12-24VDC J-5
GTJ038-1200P180 1200VDC 180A 12-24VDC J-5
GTJ038-1200P200 1200VDC 200A 12-24VDC J-5



Maximum output voltage


Max. output current


On-state voltage

≤2~8 V

Control voltage

12 to 24 VDC.

Control current

60-100 MA

Switching time

≤ 0.3S

Off-state voltage


Off-state current

≤ 10 MA

Isolation voltage

≥1800 V

Adiabatic voltage

≥2000 V

Insulation resistance

≥100 MΩ

Operating Temperature


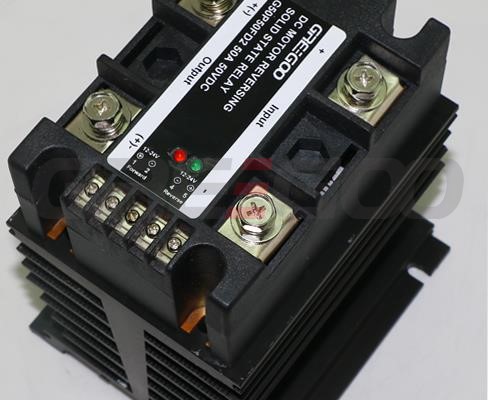

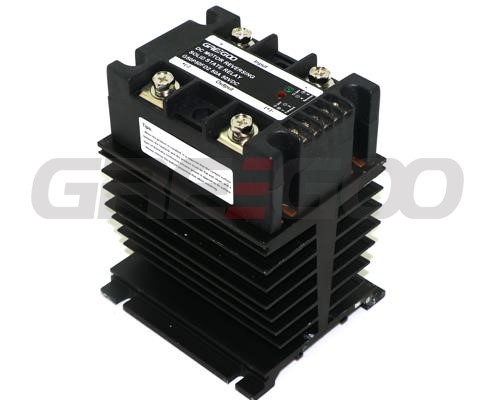

Heat dissipation conditions

≥20A with heat sink, ≥30A plus fan strong cooling

Safety factor of load current

≤2KW motor according to the rated current 2.5-4 times, > 2KW motor according to the rated current 4-6 times

Dimension (code)

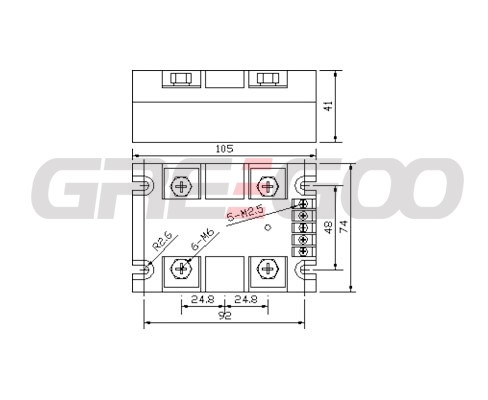

J-3:105×74×41mm; J-5: 120×84×56mm

Notes on product selection:

According to the size of the load power, different current margin should be selected. The larger the power, the larger the current margin. Generally choose the current capacity of solid state relay is 3-6 times of the load current. In addition, add overcurrent protection to the load circuit to prevent short circuits. The method is: the load circuit is connected in series with a fast circuit breaker or fast fuse.

In the output circuit, overvoltage protection measures should be added. Method: output parallel connected varistor (MOV), or add RC resistive capacitive absorption circuit. MOV: 440V power supply select 470V ~ 680V, 660V gear select 1100 ~ 1200V. Or with the factory's AC overvoltage protection absorber. Overcurrent protection method: Connect a quick disconnect switch or quick fuse in series with the load circuit.

If the load power supply is taken from the AC power supply through rectification into DC pulsating power supply, the filter capacitor must be added at the power end for filtering. The size of the capacitance is determined by the size of the load current.

According to the size of the selected solid state relay current, working mode, environmental conditions, the choice of heat sink should be different, the area of the heat sink should be large rather than small.

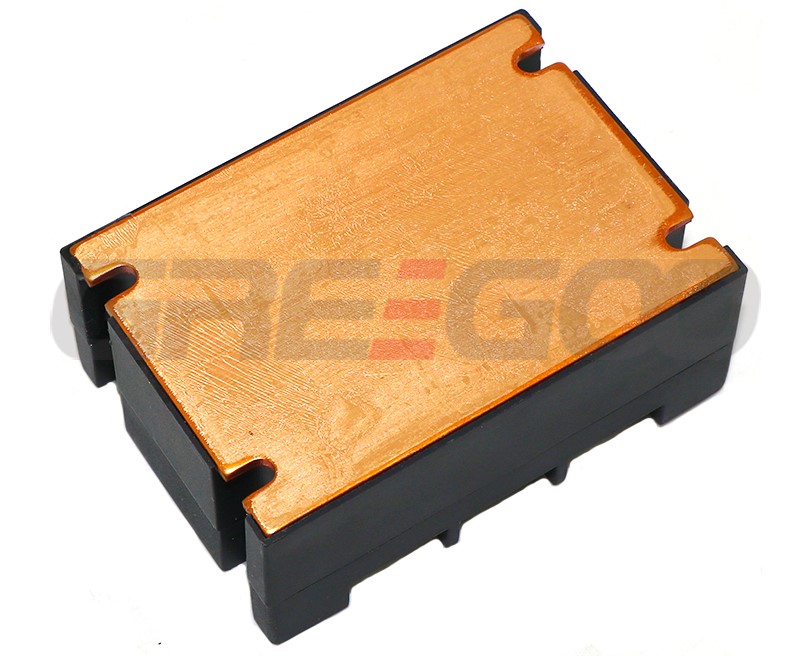

When installing, it is required that the contact surface between the heat sink and the product shall be flat and smooth, and a layer of thermally conductive silicone grease shall be applied to its surface, and finally the screws set with flat washers and spring washers shall be tightened and fixed symmetrically.

The control terminal is equipped with interlock and time delay functions, so there is no need to attach relevant protective measures when using.
