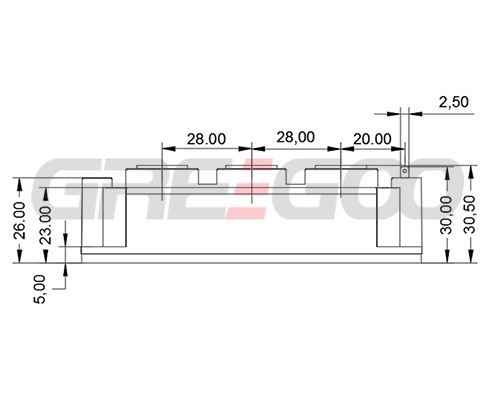

G2 half bridge chopper IGBT module
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G150HF120S | 1200 | 150 | 1.9 | 33 | 0.12 | G2 |
| G200HF120S | 1200 | 200 | 1.9 | 44 | 0.09 | G2 |
| G300HF120S | 1200 | 300 | 1.9 | 64 | 0.6 | G2 |
| G150HF120TE | 1200 | 150 | 1.9 | 36 | 0.12 | G2 |
| G200HF120TE | 1200 | 200 | 1.9 | 39 | 0.11 | G2 |
| G300HF120TE | 1200 | 300 | 1.9 | 64.8 | 0.08 | G2 |
| G400HF120TE | 1200 | 400 | 1.9 | 85 | 0.51 | G2 |
| G150HF120TK | 1200 | 150 | 2.2 | 25 | 0.13 | G2 |
| G200HF120TK | 1200 | 200 | 2.2 | 30 | 0.1 | G2 |
| G300HF120TK | 1200 | 300 | 2.2 | 48 | 0.07 | G2 |
| G400HF120TK | 1200 | 400 | 2.2 | 64 | 0.05 | G2 |
| G150HF120NU | 1200 | 150 | 3.1 | 19 | 0.12 | G2 |
| G200HF120NU | 1200 | 200 | 3.1 | 30 | 0.09 | G2 |
| G300HF120NU | 1200 | 300 | 3.1 | 51 | 0.06 | G2 |
| G150CU120S | 1200 | 150 | 1.9 | 33 | 0.12 | G2 |
| G200CU120S | 1200 | 200 | 1.9 | 44 | 0.09 | G2 |
| G300CU120S | 1200 | 300 | 1.9 | 64 | 0.6 | G2 |
| G150CU120TE | 1200 | 150 | 1.9 | 36 | 0.12 | G2 |
| G200CU120TE | 1200 | 200 | 1.9 | 39 | 0.11 | G2 |
| G300CU120TE | 1200 | 300 | 1.9 | 64.8 | 0.08 | G2 |
| G400CU120TE | 1200 | 400 | 1.9 | 85 | 0.51 | G2 |
| G150CU120TK | 1200 | 150 | 2.2 | 25 | 0.13 | G2 |
| G200CU120TK | 1200 | 200 | 2.2 | 30 | 0.1 | G2 |
| G300CU120TK | 1200 | 300 | 2.2 | 48 | 0.07 | G2 |
| G400CU120TK | 1200 | 400 | 2.2 | 64 | 0.05 | G2 |
| G150CU120NU | 1200 | 150 | 3.1 | 19 | 0.12 | G2 |
| G200CU120NU | 1200 | 200 | 3.1 | 30 | 0.09 | G2 |
| G300CU120NU | 1200 | 300 | 3.1 | 51 | 0.06 | G2 |
| G150CU120S | 1200 | 150 | 1.9 | 33 | 0.12 | G2 |
| G200CU120S | 1200 | 200 | 1.9 | 44 | 0.09 | G2 |
| G300CU120S | 1200 | 300 | 1.9 | 64 | 0.6 | G2 |
| G150CU120TE | 1200 | 150 | 1.9 | 36 | 0.12 | G2 |
| G200CU120TE | 1200 | 200 | 1.9 | 39 | 0.11 | G2 |
| G300CU120TE | 1200 | 300 | 1.9 | 64.8 | 0.08 | G2 |
| G400CU120TE | 1200 | 400 | 1.9 | 85 | 0.51 | G2 |
| G150CU120TK | 1200 | 150 | 2.2 | 25 | 0.13 | G2 |
| G200CU120TK | 1200 | 200 | 2.2 | 30 | 0.1 | G2 |
| G300CU120TK | 1200 | 300 | 2.2 | 48 | 0.07 | G2 |
| G400CU120TK | 1200 | 400 | 2.2 | 64 | 0.05 | G2 |
| G150CU120NU | 1200 | 150 | 3.1 | 19 | 0.12 | G2 |
| G200CU120NU | 1200 | 200 | 3.1 | 30 | 0.09 | G2 |
| G300CU120NU | 1200 | 300 | 3.1 | 51 | 0.06 | G2 |
| G300HF60TE | 600 | 300 | 1.7 | 32.5 | 0.25 | G2 |
| G400HF60TE | 600 | 400 | 1.7 | 38 | 0.25 | G2 |
| G300HF60TK | 600 | 300 | 1.9 | 25 | 0.1 | G2 |
| G400HF60TK | 600 | 400 | 1.9 | 32.9 | 0.08 | G2 |
| G150HF170S | 1700 | 50 | 2.3 | 116 | 0.08 | G2 |
| G200HF170S | 1700 | 75 | 2.3 | 155 | 0.05 | G2 |
| G300HF170S | 1700 | 100 | 2.3 | 220 | 0.045 | G2 |
