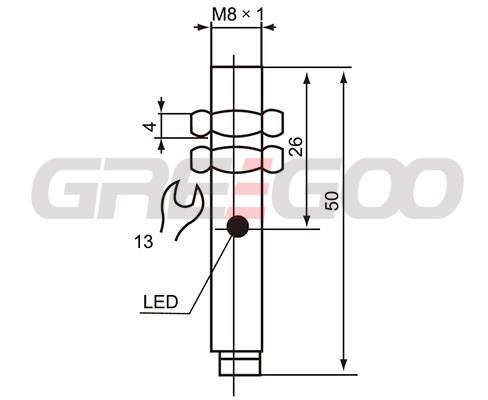

Inductive sensor LM8 angle connector type
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||
| LM8-3001NAT2 | 1mm | DC6-36V | NPN | NO | Flush |
| LM8-3001NBT2 | 1mm | DC6-36V | NPN | NC | Flush |
| LM8-3001PAT2 | 1mm | DC6-36V | PNP | NO | Flush |
| LM8-3001PBT2 | 1mm | DC6-36V | PNP | NC | Flush |
| LM8-3001LAT2 | 1mm | DC6-36V | Two wire system | NO | Flush |
| LM8-3002NAT2 | 2mm | DC6-36V | NPN | NO | Non-flush |
| LM8-3002NBT2 | 2mm | DC6-36V | NPN | NC | Non-flush |
| LM8-3002PAT2 | 2mm | DC6-36V | PNP | NO | Non-flush |
| LM8-3002PBT2 | 2mm | DC6-36V | PNP | NC | Non-flush |
| LM8-3002LAT2 | 2mm | DC6-36V | Two wire system | NO | Non-flush |
| LM8-2002AT2 | 2mm | AC90-250V | SCR Control label silicon | NO | Non-flush |
