Single phase bridge rectifier KBPC 50A
Home Products Bridge RectifierSingle phase bridge rectifier (Fast-on type)Single phase bridge rectifier KBPC 50A
Product Details

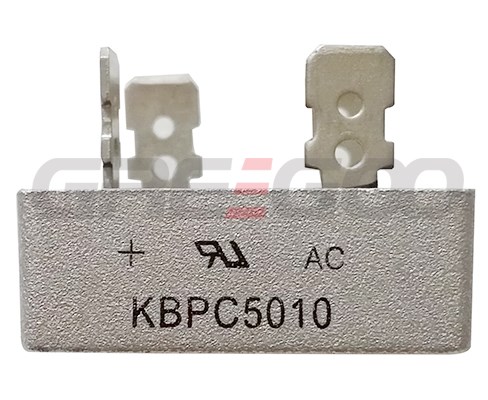

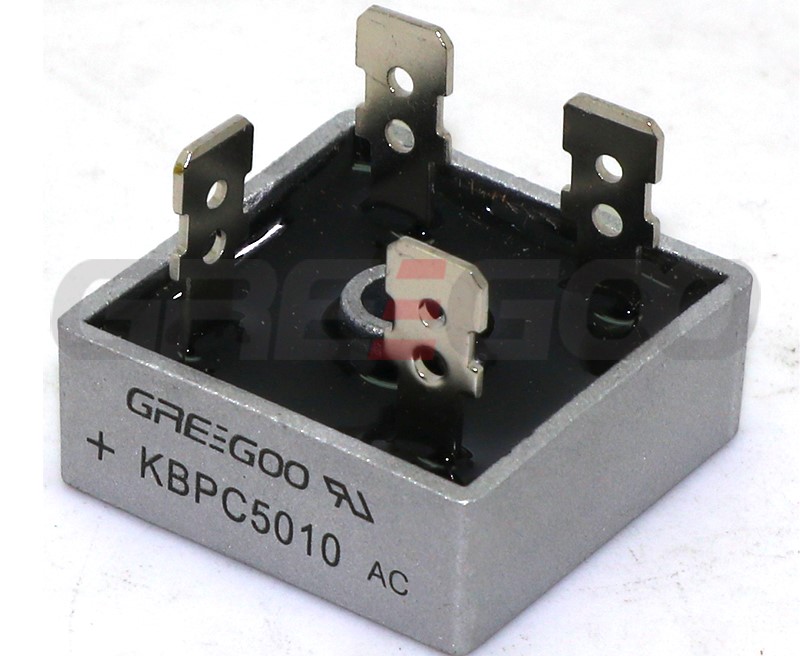

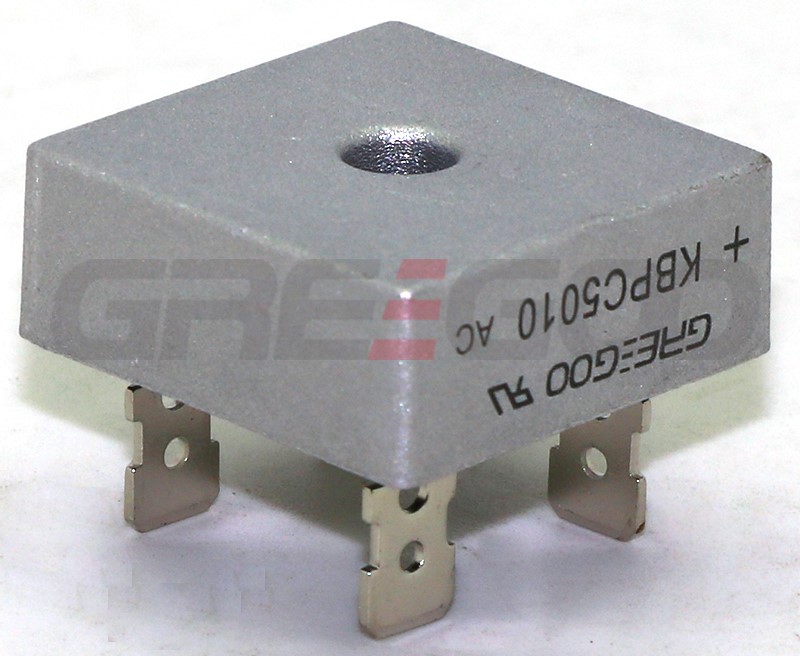

Single phase bridge rectifier KBPC 50A
Type | V RRM | I O | @T | I FSM | I R | V FM | @I FM |
V | A | ℃ | A | uA | V | A | |

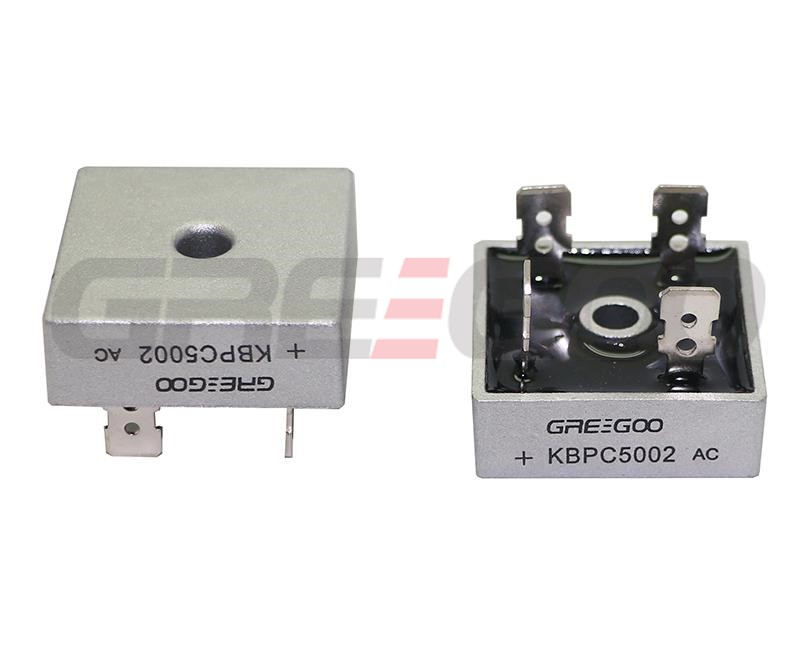

KBPC5002 | 200 | 50 | 55 | 500 | 10 | 1.2 | 25 |
KBPC5006 | 600 | 50 | 55 | 500 | 10 | 1.2 | 25 |
KBPC5010 | 1000 | 50 | 55 | 500 | 10 | 1.2 | 25 |
