Single Phase Glass Passivated Bridge Rectifier 60A to 75A
Home Products Bridge RectifierSingle phase bridge rectifier (Fast-on type)Single Phase Glass Passivated Bridge Rectifier 60A to 75A
Product Details
Single Phase Glass Passivated Bridge Rectifier 60A to 75A
Features
- Glass passivated chip
- Low reverse leakage current
- High surge current capability
- Compliant to RoHS directive 2011/65/EU
Applications
- Electric welder
- Industrial power supply
- Inverter
- Uninterruptible power supply

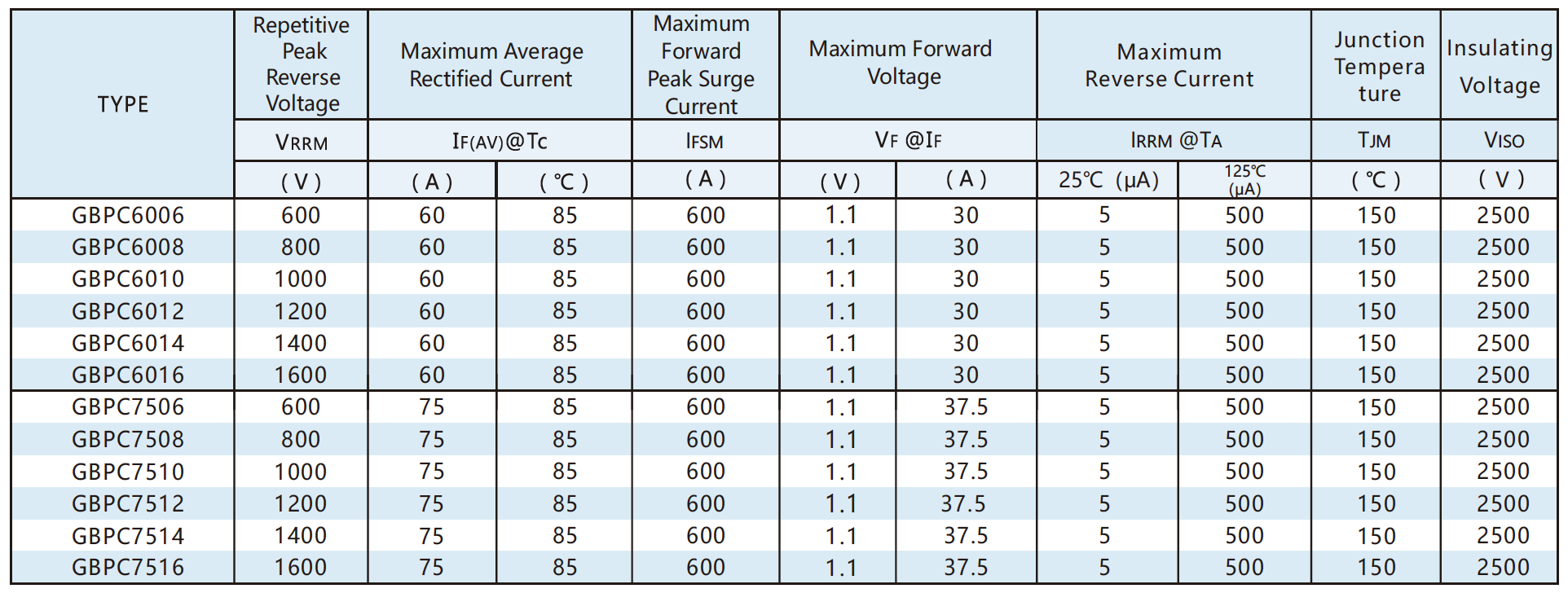

GBPC6006 GBPC6008 GBPC6010 GBPC6012 GBPC6014 GBPC6016 GBPC7506 GBPC7508 GBPC7510 GBPC7512 GBPC7514 GBPC7516
