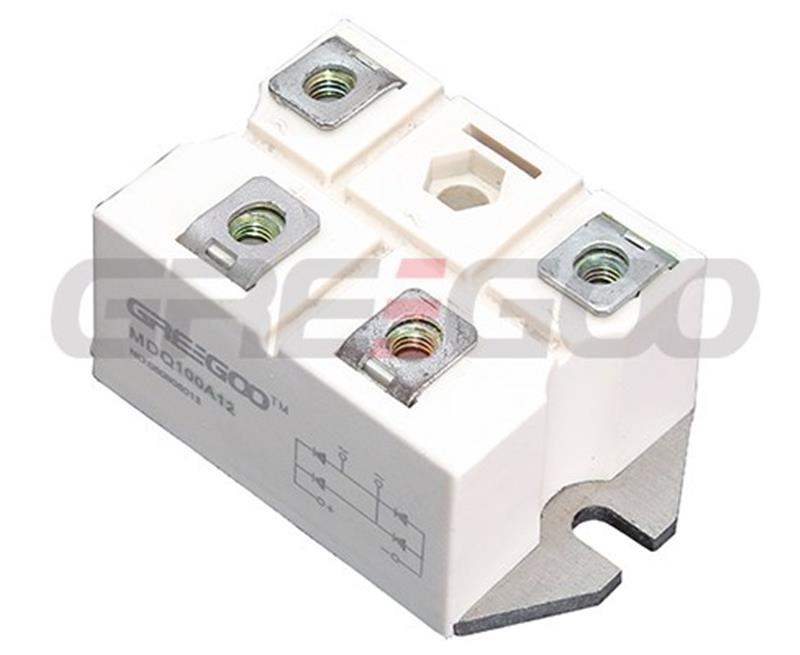

Single phase bridge rectifier modules SKB52 SKB60 SKB72 SKB82 SKB100
28A to 200A, 1 phase bridge rectifier module
| Model No. | Equal to | VRRM VDRM | ID @ TC | TC | ITSM IFSM@ Tjmax | VT(TO) @ Tjmax | rT @ Tjmax | Rth(j-c)cont. per chip | Tj | Case |
| V | A | ℃ | A | V | mΩ | K/W | ℃ | |||

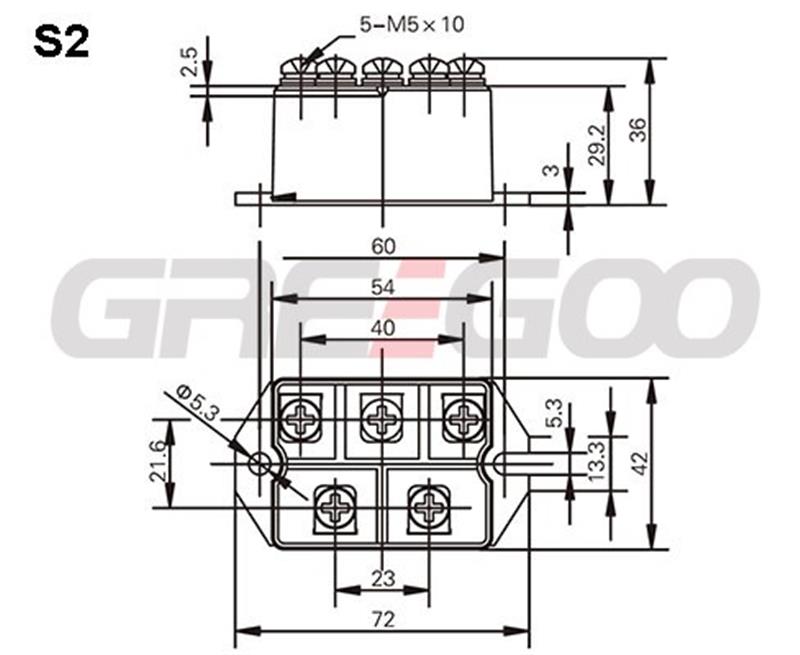

| MDQ50S | SKB 52 | 400-1800 | 50 | 99 | 425 | 0.85 | 8 | 1.5 | -40 ... 150 | S2 |
| MDQ60S | SKB 60 | 400-1600 | 60 | 88 | 850 | 0.85 | 5 | 1 | -40 ... 125 | S2 |
| MDQ70S | SKB 72 | 400-1800 | 70 | 101 | 640 | 0.85 | 5 | 1.1 | -40 ... 150 | S2 |
| MDQ82S | SKB 82 | 400-1800 | 80 | 110 | 640 | 0.85 | 5 | 1.1 | -40 ... 150 | S2 |
| MDQ100S | SKB 100 | 400-1600 | 100 | 93 | 1000 | 0.85 | 5 | 0.85 | -40 ... 125 | S2 |
