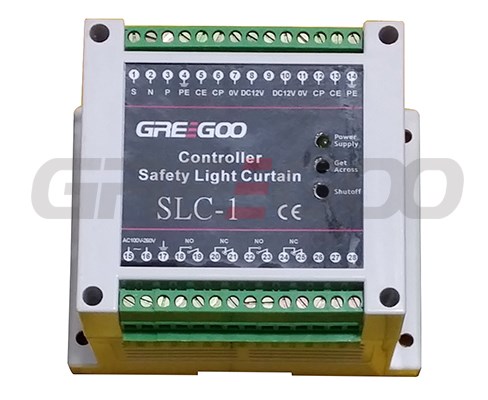

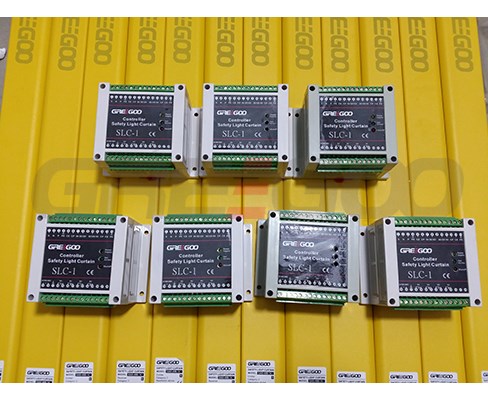

SLC-1 Controller

• Installation: built-out, directly fixed on the machine board
• Material: steel for shell
• Outline: length×width×height =116×90×73
• Controller cable: 1.5m
• Signal cable interface: aviatic plug-in (one piece for reflection, two pieces for through-beam)
• Output type: passive double relay contact safety signal output
• Output contact value:AC 380V 10A
• Power supply: AC100-260V, 50/60Hz or 24VDC
• Power consumption: 15W
• Self-detection: monitor the signal processing circuit and relay contact, lock the output state in malfunction until trouble shoot.
• Self-locking function: set self-locking function on request, reserve reset switch contact
• Return non-protection function: can be connected with machine electrics for security allows to achieve return non-protection function
