Three phase rectifier module G3PDB61N

Specification

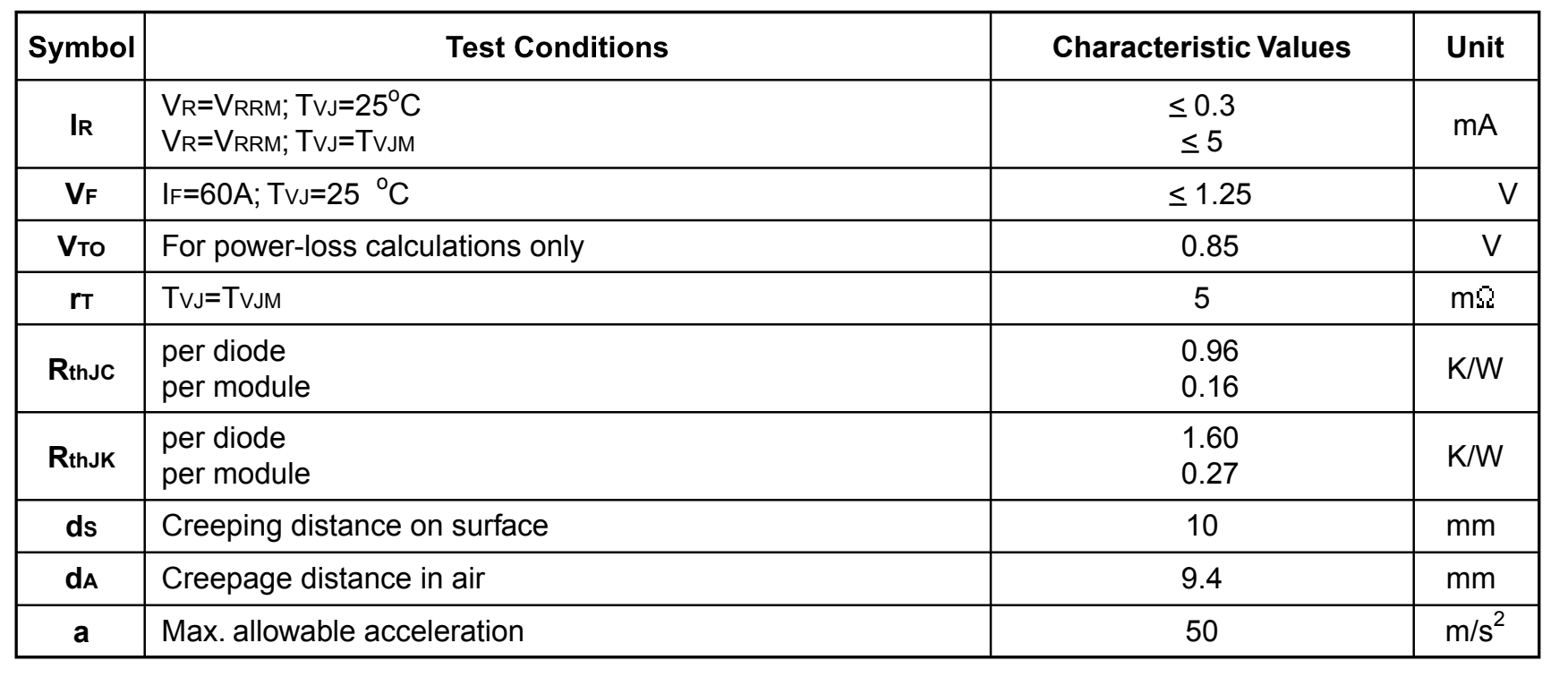

Test condition

Product Details

FEATURES	APPLICATIONS	ADVANTAGES
Package with screw terminals	Supplies for DC power equipment	Easy to mount with two screws
Isolation voltage 3000 V~	Input rectifiers for PWM inverter	Space and weight savings
Blocking voltage up to 1800 V	Battery DC power supplies	Improved temperature and power cycling
Low forward voltage drop	Field supply for DC motor

Part Numbers: G3PDB61N08/G3PDB61N10/G3PDB61N12/G3PDB61N14/G3PDB61N16/G3PDB61N18

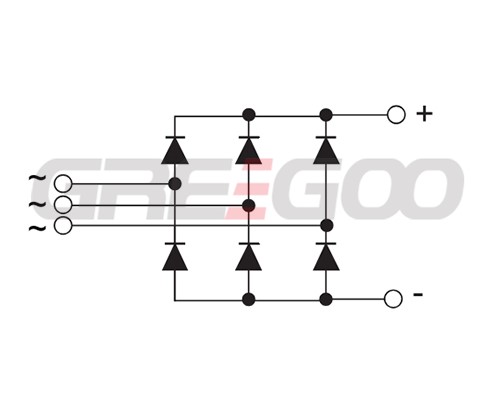

Three Phases Rectification Bridge+ Thyristor Module, 50A to 200A.

Single phase, three phase, 6 phase bridge and switches power semiconductor assembly

140 A @ 1200-1800 V

28A half controllable bridge rectifiers
