Wifi Smart Energy Meter Single Phase
Home Products Modular Kwh MeterModular KWH Meter Single PhaseWifi Smart Energy Meter Single Phase
Product Details

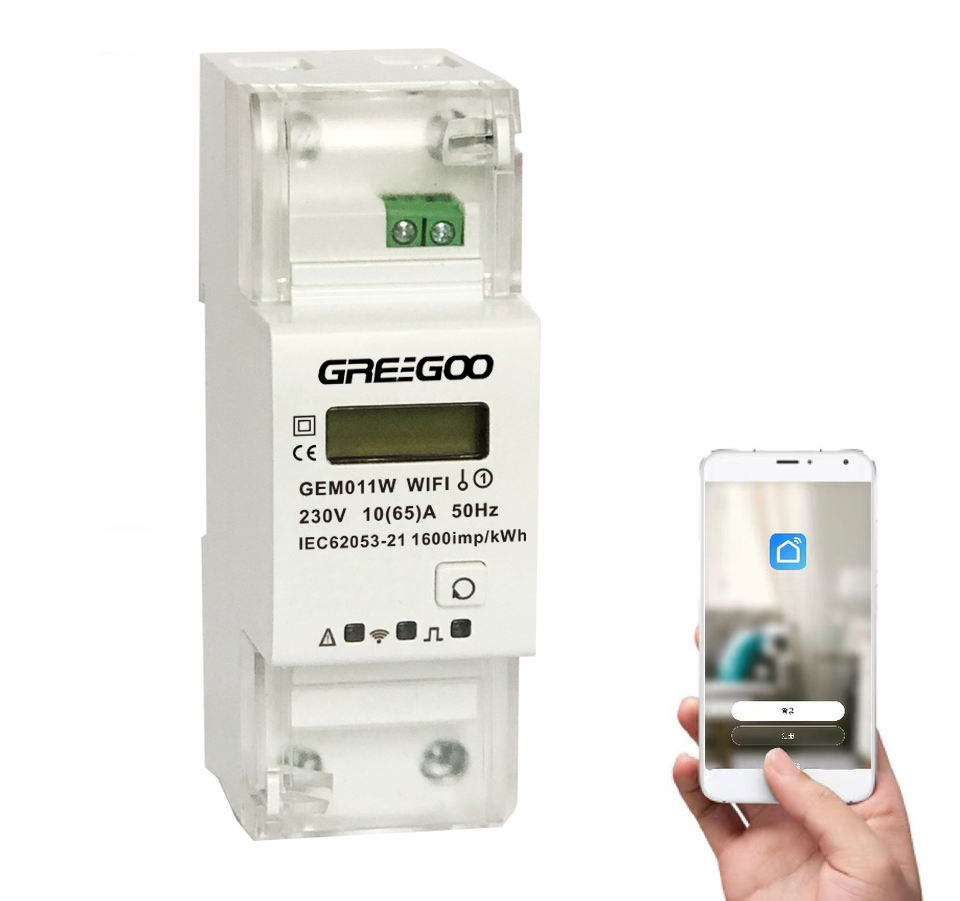

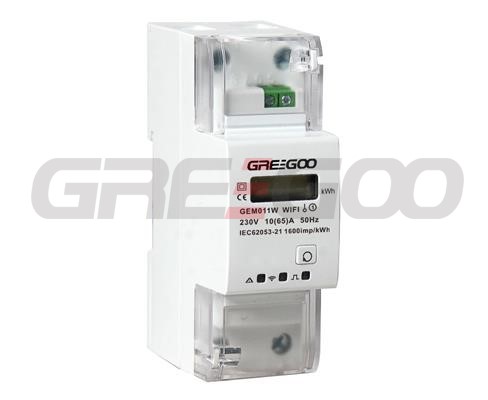

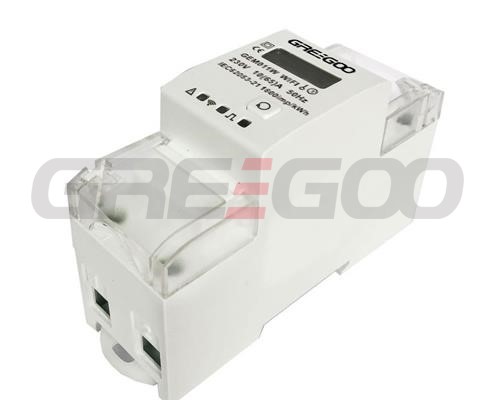

Wifi Smart Energy Meter Single Phase
Features
1.Display real voltage,real current,real active power,real reactive power,real power factor,real frequency
2.Pulse LED indicates working of meter,Pulse output with optical coupling isolation
3.Use APP software for data reading and remoter control on/off
4.Display step by step with button
5.it has timing control function, it can set value from APP
| Model | GEM011W |
| Rate frequency | 50 or 60 Hz |
| Rated current | 5(65)A |
| Rate voltage | 120V/220V/230V/240V |
| Limits voltage range | 100~270V |
| kWh Accuracy | Class 1 |
| R.M.S accuracy | Class 0.5 |
| LCD display kWh | 999999.9kWh |
| Starting current | 20mA(min measure) |
| Voltage circuit | <2W/10VA |
| WIFI | 802.11b/g/n ,only support 2.4GHz network, not support 5GHz network |
| Operation temperature | -25~70℃ |
