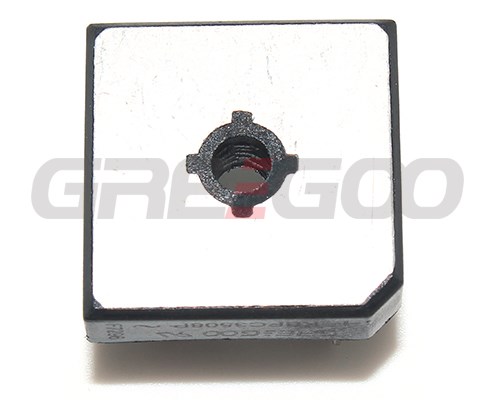

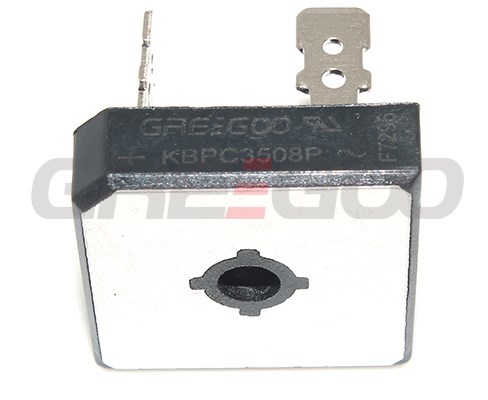

High current bridge rectifier KBPC3508P
Features
Diffused Junction
Low Reverse Leakage Current
Low Power Loss, High Efficiency
Electrically Isolated Epoxy Case for Maximum Heat Dissipation
Case to Terminal Isolation Voltage 2500V
| Characteristics | Symbol | KBPC1508P | KBPC1510P | KBPC2508P | KBPC2510P | KBPC3508P | KBPC3510P |
| Peak repetitive reverse voltage (V) | VRRM | 800 | 1000 | 800 | 1000 | 800 | 1000 |
| Average rectifier output current @ Tc=60 (A) | Io | 15 | 15 | 25 | 25 | 35 | 35 |
| Non-respetitive peak forward surge current (A) | IFSM | 300 | 300 | 300 | 300 | 400 | 400 |
| Forward voltage drop (V) | VFM | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
