Product Details

BYX-DB SPD

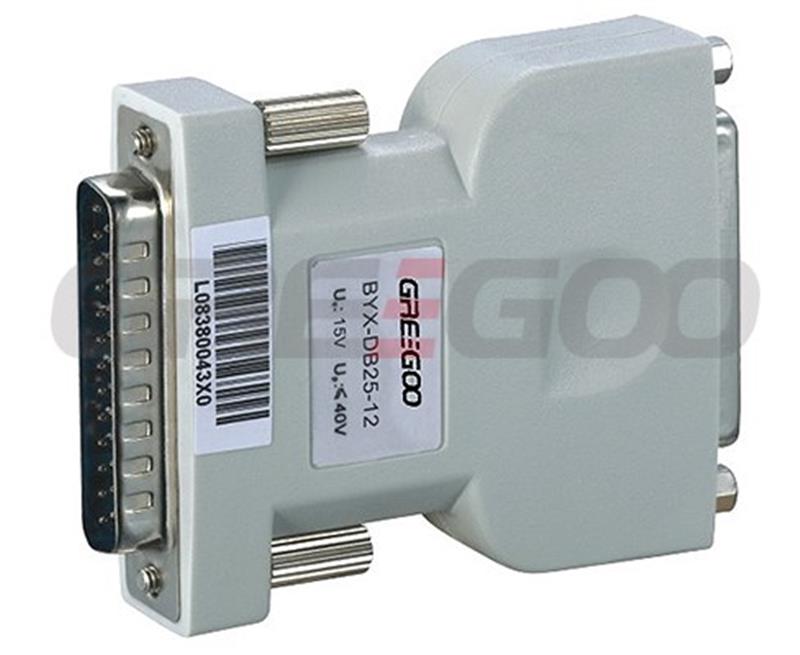

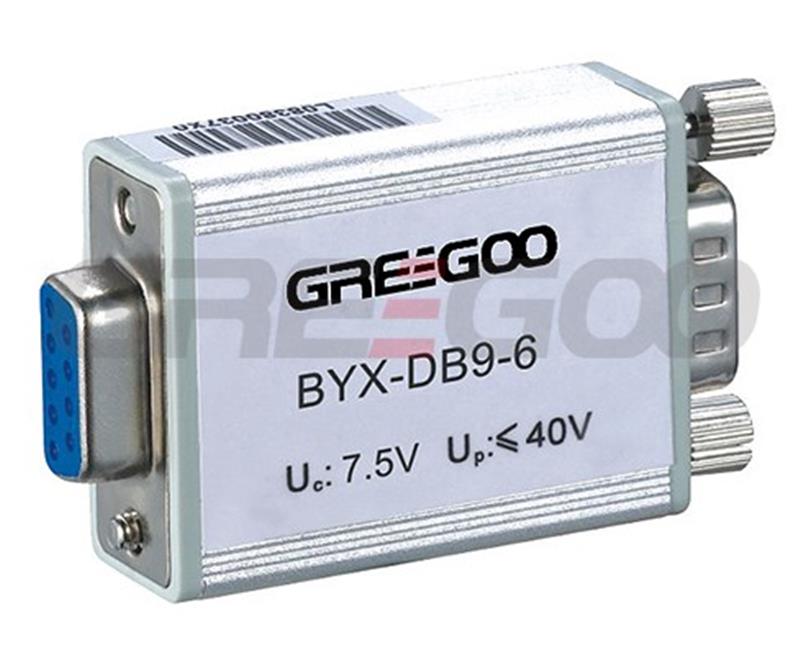

Type	BYX-DB9-6	BYX-DB9-12	BYX-DB25-6	BYX-DB25-12
Typical operating system	RS485/422	RS232	RS485/422	RS232
Rated operating voltage Un	6V	12V	6V	12V
Max. operating voltage Uc	7V	15V	7V	15V
Voltage protection level (12/50uS 0.5kV )	20V	40V	20V	40V
Capacity of let-through current (8/20uS )	500A	500A	500A	500A
Rated load current	500mA	500mA	500mA	500mA
Protection route DB interface	1~9	1~9	1~25	1~25
Frequency range	10MHz	10MHz	2MHz	2MHz
Insert loss	<0.5dB	<0.5dB	<0.5dB	<0.5dB
Response time	1ns	1ns	1ns	1ns
Failure indication	Grounding route short circuit or switch off
