1/2/3 phase half/full wave rectifier DC solid state relays
| SINGLE PHASE DC SOLID STATE RELAY WITH HALF WAVE RECTIFIER CIRCUIT | ||||||
| MODEL | RATED CURRENT | LOAD PSU | LOAD VOLTAGE | CONTROL VOLTAGE | WAVE FORM | CASING |
| GRZ11-1024D3 | 10A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-2024D3 | 20A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |

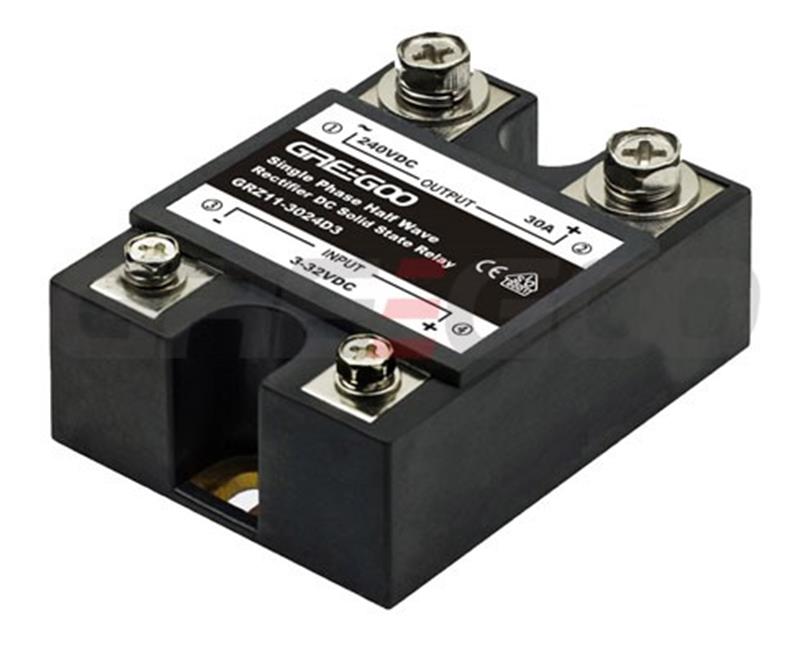

| GRZ11-3024D3 | 30A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-4024D3 | 40A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-5024D3 | 50A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-6024D3 | 60A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-8024D3 | 80A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-10024D3 | 100A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-12024D3 | 120A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-15024D3 | 150A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-18024D3 | 180A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-20024D3 | 200A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-30024D3 | 300A | 240VAC | 108VDC | 3-32VDC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-1044D3 | 10A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-2044D3 | 20A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-3044D3 | 30A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-4044D3 | 40A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-5044D3 | 50A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-6044D3 | 60A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-8044D3 | 80A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-10044D3 | 100A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-12044D3 | 120A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-15044D3 | 150A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-18044D3 | 180A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-20044D3 | 200A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-2 |

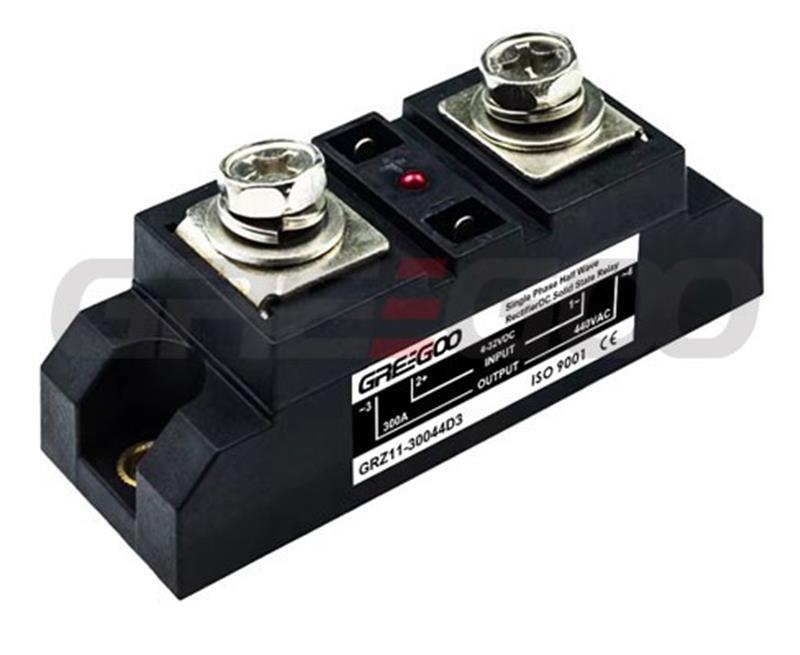

| GRZ11-30044D3 | 300A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-1024A2 | 10A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-2024A2 | 20A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-3024A2 | 30A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-4024A2 | 40A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-5024A2 | 50A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-6024A2 | 60A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-8024A2 | 80A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-10024A2 | 100A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-12024A2 | 120A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-15024A2 | 150A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-18024A2 | 180A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-20024A2 | 200A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-30024A2 | 300A | 240VAC | 108VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-1044A2 | 10A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-2044A2 | 20A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-3044A2 | 30A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-4044A2 | 40A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-5044A2 | 50A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-6044A2 | 60A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-8044A2 | 80A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-10044A2 | 100A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-12044A2 | 120A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-15044A2 | 150A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-18044A2 | 180A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ11-20044A2 | 200A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-2 |
| GRZ11-30044A2 | 300A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-2 |
| SINGLE PHASE DC SOLID STATE RELAY WITH FULL WAVE RECTIFIER CIRCUIT | ||||||
| MODEL | RATED CURRENT | LOAD PSU | LOAD VOLTAGE | CONTROL VOLTAGE | WAVE FORM | CASING |
| GRZ12-1024D3 | 10A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-2024D3 | 20A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-3024D3 | 30A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-4024D3 | 40A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-5024D3 | 50A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-6024D3 | 60A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-8024D3 | 80A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-10024D3 | 100A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-12024D3 | 120A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-15024D3 | 150A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-18024D3 | 180A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-20024D3 | 200A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-30024D3 | 300A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-40024D3 | 400A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-50024D3 | 500A | 240VAC | 216VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-1044D3 | 10A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |

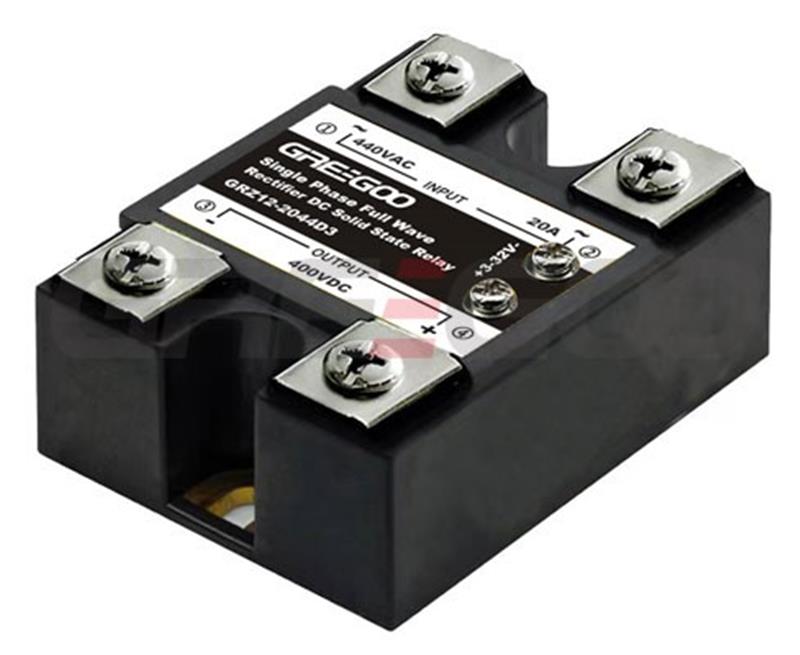

| GRZ12-2044D3 | 20A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-3044D3 | 30A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-4044D3 | 40A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-5044D3 | 50A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-6044D3 | 60A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-8044D3 | 80A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-10044D3 | 100A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-12044D3 | 120A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-15044D3 | 150A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-18044D3 | 180A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-20044D3 | 200A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-30044D3 | 300A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-40044D3 | 400A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-50044D3 | 500A | 440VAC | 396VDC | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-1024A2 | 10A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-2024A2 | 20A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-3024A2 | 30A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-4024A2 | 40A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-5024A2 | 50A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-6024A2 | 60A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-8024A2 | 80A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-10024A2 | 100A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-12024A2 | 120A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-15024A2 | 150A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-18024A2 | 180A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-20024A2 | 200A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-30024A2 | 300A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-40024A2 | 400A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-50024A2 | 500A | 240VAC | 216VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-1044A2 | 10A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-2044A2 | 20A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-3044A2 | 30A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-4044A2 | 40A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-5044A2 | 50A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-6044A2 | 60A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-8044A2 | 80A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-10044A2 | 100A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-1 |
| GRZ12-12044A2 | 120A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-15044A2 | 150A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-18044A2 | 180A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ12-20044A2 | 200A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-30044A2 | 300A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-40044A2 | 400A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ12-50044A2 | 500A | 440VAC | 396VDC | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| DUAL OUTPUT DC SOLID STATE RELAY WITH HALF WAVE RECTIFIER CIRCUIT | ||||||
| MODEL | RATED CURRENT | LOAD PSU | LOAD VOLTAGE | CONTROL VOLTAGE | WAVE FORM | CASING |
| GRZ21-1044D3 | 10A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |

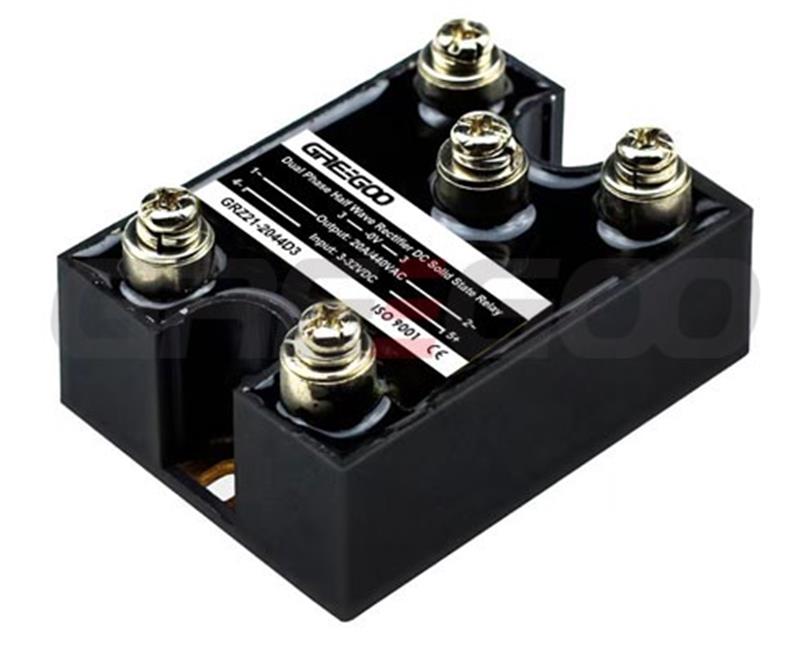

| GRZ21-2044D3 | 20A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-3044D3 | 30A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-4044D3 | 40A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-5044D3 | 50A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-6044D3 | 60A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |

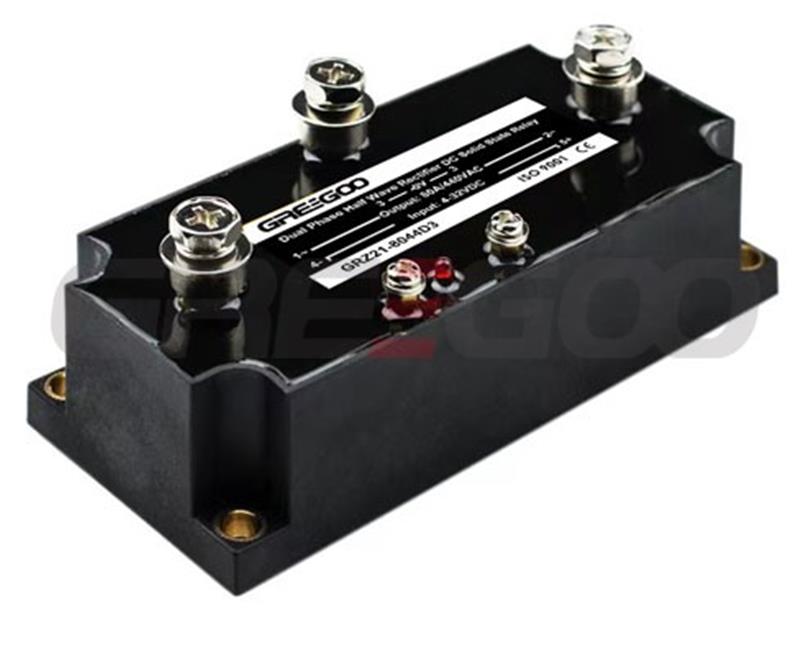

| GRZ21-8044D3 | 80A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-10044D3 | 100A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-12044D3 | 120A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-15044D3 | 150A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-18044D3 | 180A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-20044D3 | 200A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-3 |
| GRZ21-30044D3 | 300A | 440VAC | 198VDC | 3-32VDC | HALF WAVE RECTIFIER | J-3 |
| GRZ21-1044A2 | 10A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-2044A2 | 20A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-3044A2 | 30A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-4044A2 | 40A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-5044A2 | 50A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-6044A2 | 60A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-8044A2 | 80A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-1 |
| GRZ21-10044A2 | 100A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-12044A2 | 120A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-15044A2 | 150A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-18044A2 | 180A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | M-3 |
| GRZ21-20044A2 | 200A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-3 |
| GRZ21-30044A2 | 300A | 440VAC | 198VDC | 160V-240VAC | HALF WAVE RECTIFIER | J-3 |
| THREE PHASE DC SOLID STATE RELAY WITH FULL WAVE RECTIFIER CIRCUIT | ||||||
| MODEL | RATED CURRENT | LOAD PSU | LOAD VOLTAGE | CONTROL VOLTAGE | WAVE FORM | CASING |
| GRZ31-1044D3 | 10A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-2044D3 | 20A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-3044D3 | 30A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-4044D3 | 40A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-5044D3 | 50A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-6044D3 | 60A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-8044D3 | 80A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-10044D3 | 100A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-12044D3 | 120A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-15044D3 | 150A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |

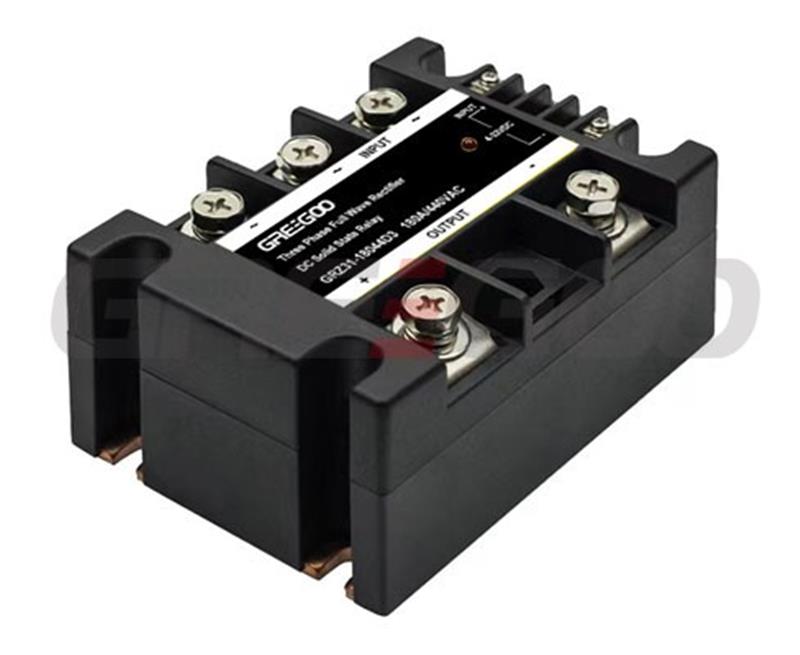

| GRZ31-18044D3 | 180A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-20044D3 | 200A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-30044D3 | 300A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-40044D3 | 400A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-50044D3 | 500A | 440VAC | 2.34*PHASE VOLT. | 3-32VDC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-1044A2 | 10A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-2044A2 | 20A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-3044A2 | 30A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-4044A2 | 40A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-5044A2 | 50A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-6044A2 | 60A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-8044A2 | 80A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-10044A2 | 100A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-12044A2 | 120A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-15044A2 | 150A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-18044A2 | 180A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-3 |
| GRZ31-20044A2 | 200A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-30044A2 | 300A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-40044A2 | 400A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| GRZ31-50044A2 | 500A | 440VAC | 2.34*PHASE VOLT. | 160V-240VAC | FULL WAVE RECTIFIER | J-5 |
| For example: phase voltage is 240V, the load voltage should be 240*2.34=560VDC | ||||||
| Over-current, short-circuit, over-voltage and over-temperature protection are available for choose. | ||||||
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
3 phase half wave rectifier solid state relay GZ33 GZ34
DC 30-300A 440 / 660 VAC
View More
3 phase full wave rectifier solid state relay GZ31 GZ32
DC 20A to 500A 440 or 660 VAC
View More20240604095129512921.jpg)
Single phase half wave rectifier solid state relay GZ11 GZ13
DC 10-300A 240V/440VAC 50-60Hz
View More
Single phase full wave rectifier solid state relay GZ12 GZ14
DC 10-500A 240 / 440 VAC
View More
