Disc PCT and Rectifier
Phase controlled thyristor is used as non-contact switch and change DC to AC, widely applicable in fields of SVC, softstarters, rectifying devices, motor control, voltage regulating, power regulating and automation control etc. The disc type thyristor is characterized by center amplifying gate, high mean current, low-in state and switching losses and double-side cooling, matching with various air-cooling or water-cooling radiators. At present, the high power thyristor is up to 7000A and voltage can reach 8500V. The "Topsil" brand silicon from Danmark, UK "LEM" testing equipment and the imported manufacturing equipments from USA and Germany make them 100% quality guaranteed and are considered as ideal replacements of ABB, WESTCODE, EUPEC and POWEREX by many customers.
Recommend PCT1200A 1600V to 2000V Fast switching thyristors
2619A 1800V to 2500V phase control thyristor
4350/4500A 1600V, 1800V, 2000V, 2200V phase control thyristor
290A 800V to 1600V, stud ceramic type thyristor.
1200A 2500V, 2500A 2500V Gate turn-off thyristor.
C series fast thyristor 200A to 2100A under 2000V.
5STP series 380A to 2400A under 6500V.

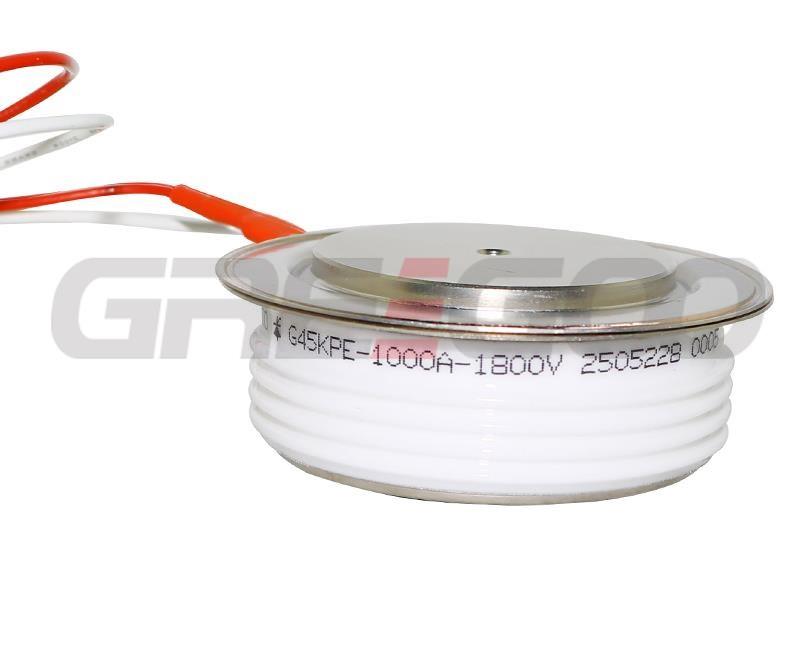

1000A, 1250A, 1600A, 2000A PCT, 800-1800V.
Capsule type PCT· Hermetic metal case with ceramic insulator. Capsule package for double-sided cooling.
· Amplifying gates. Optimized for low on-state losse.
· Suitable for series and parallel connections, narrow QRR and VTM deflection.
The positive or negative pulse signal triggers the device to turn on or turn off.
Fast turn-on and high di/dt, low switching losses, short turn-off time
Excellent high frequency performance, 2.5KHz-10kHz, excellent dynamic performance, all diffused structure
Alloying PCT, thyristor, capsule type thyristors.
Two anti-parallel connected thyristors are integrated on one silicon chip
Fast thyristor, TF series
Capsule type Rectifier DiodesRussia version capsule diode for general purpse.
Rectifier diodes are generally used for conversion of AC to DC with low conduction losses.
General purpose rectifier diodes
Fast diodes are companion devices to switches in DC to AC conversion.
Welding diodes, 7100A, 10500A, 12000A, 13500A, 16000A and 18000A under 200V/400V.
A series general purpose rectifier, 1000A to 4400A under 4500V.
5SDD series 662A to 7385A under 6000V.
Clamp BoxesClamp box for disc version thyristors

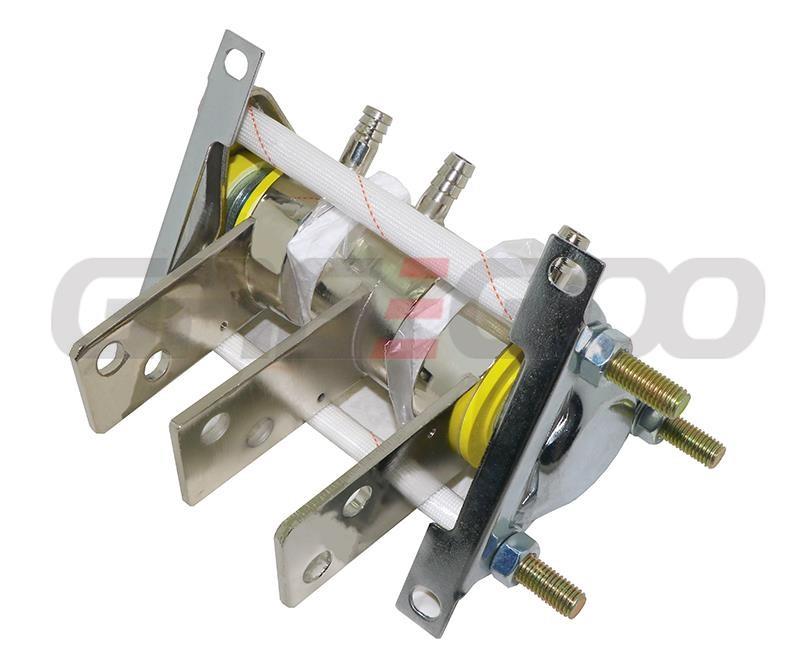

High voltage water cooler, 6500V thyristor.
V50 clamp for disc device of rectifier and thyristors.
