IGBT Module
Greegoo offers IGBT (insulated-gate bipolar transistor) modules in different topologies, current and voltage ratings. Starting from 15A to 1600A in voltage classes from 600V to 1700V, the IGBT modules are used in a variety of applications and feature key technologies such as sintering, spring or press-fit contacts for quick and easy assembly. Different topologies such as CIB (converter inverter brake), half-bridge, H-bridge, 6-pack and 3-level are available, covering almost every application field. Such as inverter welding machine; inverter power supply, frequency converter, UPS; electric vehicle; photovoltaic inverter, industrial servo service; switched reluctance motor, chopper speed regulation; induction heating, etc.

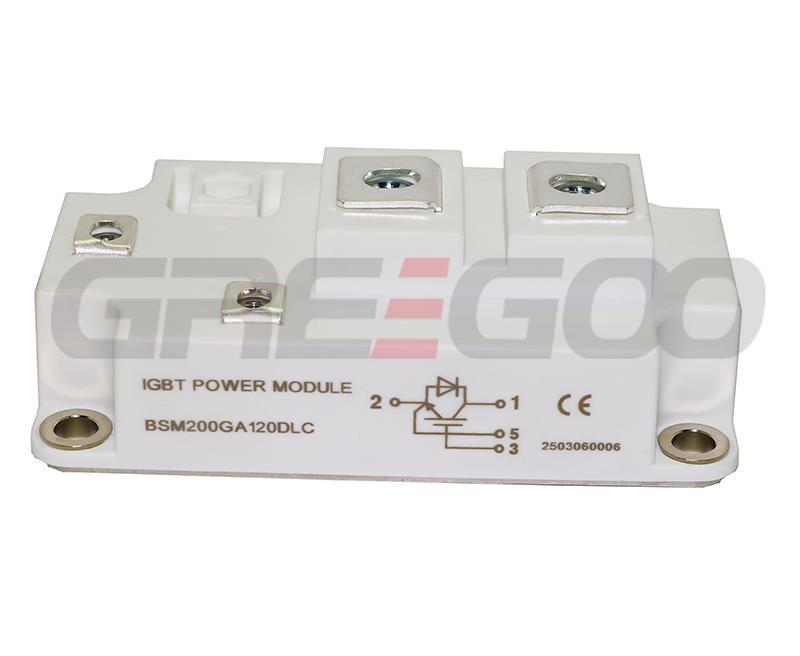

![Single IGBT switch](/UploadFiles/BigImages/copy-igbt-switch-single1.jpg)
Single IGBT switch
![15A to 60A IGBT module](/UploadFiles/BigImages/copy-igbt-985.jpg)
15A to 60A IGBT module
15A to 60A
![G5:full bridge/3 phase bridge/PIM](/UploadFiles/BigImages/copy-g5-full-bridge-3-phase-bridge-pim.jpg)
G5:full bridge/3 phase bridge/PIM
600V and 1200V, 50A, 75A, 100A, 150A and 200A.
![G4: full bridge/3 phase bridge/PIM](/UploadFiles/BigImages/copy-g4-full-bridge-3-phase-bridge-pim.jpg)
G4: full bridge/3 phase bridge/PIM
650V and 1200V, 15A, 25A, 50A, 75A and 100A.
![E2-3 phase bridge/PIM/NPC](/UploadFiles/BigImages/copy-e2-3-phase-bridge-pim-npc.jpg)
E2-3 phase bridge/PIM/NPC
650V and 1200V, 25A, 30A, 50A, 75A and 150A.
![E1 full bridge 3 phase bridge PIM NPC](/UploadFiles/BigImages/copy-e1-full-bridge-3-phase-bridge-pim-npc.jpg)
E1 full bridge 3 phase bridge PIM NPC
650V and 1200V, 15A, 25A and 50A.
![A1 3 phase bridge double chopper](/UploadFiles/BigImages/copy-a1-3-phase-bridge-double-chopper.jpg)
A1 3 phase bridge double chopper
1200V, 450A and 600A.
![G8 half bridge double chopper](/UploadFiles/BigImages/copy-g8-half-bridge-double-chopper.jpg)
G8 half bridge double chopper
650V, 1200V, 1700V, 150A, 225A, 300A, 450A and 600A.
![G7 NPC double chopper](/UploadFiles/BigImages/copy-g7-npc-double-chopper.jpg)
G7 NPC double chopper
1200V and 650V, 150A, 200A, 300A.
![G3 single switch](/UploadFiles/BigImages/copy-g3-single.jpg)
G3 single switch
600V, 1200V, 1700V, 200A, 300A, 400A, 600A and 800A.
![G2 half bridge chopper IGBT module](/UploadFiles/BigImages/copy-g2-half-bridge-chopper.jpg)
G2 half bridge chopper IGBT module
600V, 1200V, 1700V, 50A, 75A, 100A, 150A, 200A, 300A and 400A.
![G1 half bridge chopper IGBT module](/UploadFiles/BigImages/copy-g1-half-bridge-chopper.jpg)
G1 half bridge chopper IGBT module
600V, 1200V, 1700V, 50A, 75A, 100A, 150A and 200A.
![M1 half bridge chopper IGBT module](/UploadFiles/BigImages/copy-m1-half-bridge-chopper.jpg)
M1 half bridge chopper IGBT module
1200V 40A.
![F4 single switch IGBT module](/UploadFiles/BigImages/copy-f4-single.jpg)
F4 single switch IGBT module
650V and 1200V, 50A, 75A and 100A.
![1700V IGBT Modules](/UploadFiles/BigImages/copy-skm-igbt-modules.jpg)
1700V IGBT Modules
1700V IGBT Modules
![1200V IGBT Modules](/UploadFiles/BigImages/copy-G400HF120TK-3.jpg)
1200V IGBT Modules
1200V IGBT Modules
![600V/650V IGBT Modules](/UploadFiles/BigImages/copy-skm-igbt-modules.jpg)
600V/650V IGBT Modules
600V and 650V IGBT modules
![Constant Voltage or Constant Current IPM Modules](/UploadFiles/BigImages/copy-copy-GVTR150A-380V-12024052414004504552.jpg)
Constant Voltage or Constant Current IPM Modules
Constant voltage, 150A to 1000A.
![Three phase AC switching IPM module](/UploadFiles/BigImages/copy-gvta-75a.jpg)
Three phase AC switching IPM module
20A to 1000A, 0-380VAC
![Single phase AC switching intelligent power module](/UploadFiles/BigImages/copy-gvda-40a.jpg)
Single phase AC switching intelligent power module
20A to 1200A, 0-220VAC or 0-380Vac.
![Three phase rectifier IPM module](/UploadFiles/BigImages/copy-gvtr-100a.jpg)
Three phase rectifier IPM module
30A to 1000A 0-513VDC
![Single phase rectifier intelligent power module](/UploadFiles/BigImages/copy-gvdr-55a.jpg)
Single phase rectifier intelligent power module
30A to 400A, 0-198VDC or 0-342VDC.
![GVTA/GVDA 3 and single phase switching IPM modules](/UploadFiles/BigImages/copy-GVTA-100D-1.jpg)
GVTA/GVDA 3 and single phase switching IPM modules
AC input, AC output, Single phase and three phase, 50A to 500A.
![GVTR/GVDR series 3 and single phase rectifier IPM modules](/UploadFiles/BigImages/copy-GVTR-75D-1.jpg)
GVTR/GVDR series 3 and single phase rectifier IPM modules
AC input, DC output, 0-530VDC regulator, analog control, 4-20mA, 0-5A or 0-10V.
![FRD modules](/UploadFiles/BigImages/cut20230114141930193011.jpg)
FRD modules
400V, 600V and 1200V fast recovery diode modules, Frd modules, ecosemitek series.
![FRED Fast Recovery Epitaxial Diode Module](/UploadFiles/BigImages/cut20221019195713571371.jpeg)
FRED Fast Recovery Epitaxial Diode Module
75A to 800A @ 600V or 1200V FRED modules
![Soft FRED Fast Recovery Epitaxial Diode Module](/UploadFiles/BigImages/cut20221019194321432193.jpeg)
Soft FRED Fast Recovery Epitaxial Diode Module
600V or 1200V, 75A to 900A, soft FRED modules, 2500V(RMS)
![DKR400CA60 400A 600V fast recovery diode module](/UploadFiles/product/small13-1202205200925065988.jpg)
DKR400CA60 400A 600V fast recovery diode module
2 in 1 fast recovery diode module, used for welding machines, plasma cutting machine and plating equipment, 400A 600V.
![FRED modules](/UploadFiles/product/smallGF400D170B2B-5.jpg)
FRED modules
300A/400A 1200V and 1700V fred modules.
![FRED modules](/UploadFiles/product/small7-1202205200923013801.jpg)
FRED modules
Dual and single fred modules, 400V, 600V,1200V and 1700V 150/200/300/400A.
![FRED modules](/UploadFiles/product/smallfred202204241034472292.jpg)
FRED modules
Single diode, 300A 500V and 700V fred modules.
![FRED modules](/UploadFiles/product/small6-1202205200917597622.jpg)
FRED modules
2x100,2x150,2x200,2x400,2x500A 100V,200V,400V,600V fred modules
![FRED modules](/UploadFiles/product/small4-1202205200915367311.jpg)
FRED modules
2x100,2x150,2x200A 600V, 700V and 1200V fred module.
![FRED modules](/UploadFiles/product/small8-1202205200912526685.jpg)
FRED modules
Dual diode, 2x100,2x200A @ 200V, 400V and 600V fred modules
![Fast recovery diode module](/UploadFiles/product/smallFast-Recovery-Diode-module-mur400201703221939239630.jpg)
Fast recovery diode module
Ultra-Fast Soft Recovery Diode Module MFDK200-400
![Fast recovery diode module](/UploadFiles/product/small20170322073901913_Fast-Recovery-Diode-module-mur200.jpg)
Fast recovery diode module
200A 200V and 200A 400V.
